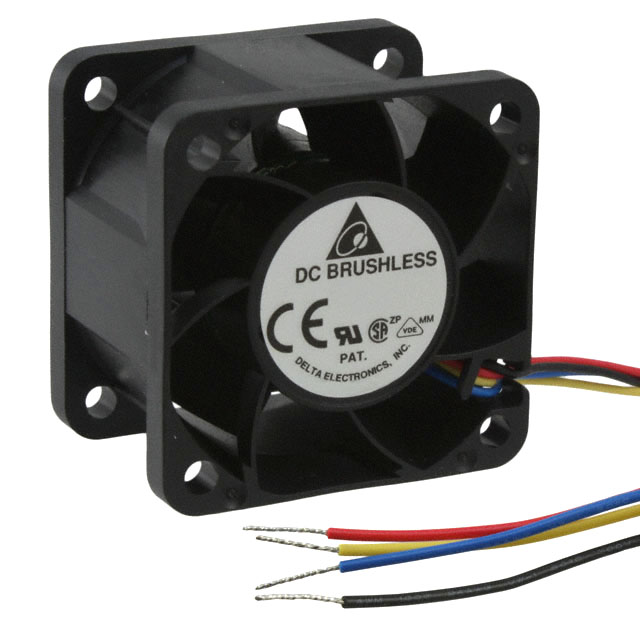

FFB0412UHN-SP4Z

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.2V 26.55CFM 59.9DB 40 X 40 X 28MM PWM/TACHOMETER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

FFB0412UHN-SP4Z

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 12V 7V TO 13.2V 26.55CFM 59.9DB 40 X 40 X 28MM PWM/TACHOMETER

Deep-Dive with AI

DocumentsFans, Electric - Component UL Cert Fans VDE Cert +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FFB0412UHN-SP4Z

Air Flow	26.5 CFM
Air Flow	0.742 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.84 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	59.9 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	10.08 W
RPM	23000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	784.7 Pa
Static Pressure	3.15 in H2O
Termination	4 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	0.115 lb
Weight	52.16 g
Width [y]	28 mm

FFB0412 Series

Part	Static Pressure	Static Pressure	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Air Flow	Air Flow	Lifetime @ Temp.	Bearing Type	Material - Blade	Weight	Weight	Termination	Width [y]	Fan Type	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Material - Frame	Current Rating (Amps)	Features	Noise	Approval Agency	RPM	Power (Watts)	Voltage Range [Max]	Voltage Range [Min]
Delta Electronics FFB0412UHN-CF00	525.8 Pa	2.111 in H2O	12 VDC	70 °C	70 °C	-10 °C	-10 °C	27.1 CFM	0.759 m³/min	70000 Hrs	Ball	Plastic	47.17 g	0.104 lb	3 Wire Leads	28 mm	Tubeaxial	40 mm	Square	40 mm	Plastic	650 mA	Locked Rotor Protection Speed Sensor (Tach)	58.5 dB	CE cURus VDE	18500 RPM	7.8 W
Delta Electronics FFB0412EN-00Y2E	1105.9 Pa	4.44 in H2O	12 VDC	70 °C	70 °C	-10 °C	-10 °C	32.9 CFM	0.921 m³/min	70000 Hrs	Ball	Plastic	51.26 g	0.113 lb	4 Wire Leads	28 mm	Tubeaxial	40 mm	Square	40 mm	Plastic	1.45 A	Locked Rotor Protection PWM Control Speed Sensor (Tach)	64 dB(A)	CE cURus TUV	25000 RPM	17.4 W	13.2 VDC	10.8 VDC
Delta Electronics FFB0412UHN-CR00
Delta Electronics FFB0412EHN-CF00	306.9 Pa	1.232 in H2O	12 VDC	70 °C	70 °C	-10 °C	-10 °C	20.3 CFM	0.568 mł/min	70000 Hrs	Ball	Plastic	47.17 g	0.104 lb	3 Wire Leads	28 mm	Tubeaxial	40 mm	Square	40 mm	Plastic	0.33 A	Locked Rotor Protection Speed Sensor (Tach)	53 dB	CE cURus VDE	14500 RPM	3.96 W
Delta Electronics FFB0412SHN-AF00	265.5 Pa	1.066 in H2O	12 VDC	70 °C	70 °C	-10 °C	-10 °C	23.1 CFM	0.647 m³/min	70000 Hrs	Ball	Plastic	35.38 g	0.078 lb	3 Wire Leads	28 mm	Tubeaxial	40 mm	Square	40 mm	Plastic	400 mA	Locked Rotor Protection Speed Sensor (Tach)	52.5 dB(A)	CE CSA UL VDE	13000 RPM	4.8 W	12.6 VDC	4 VDC
Delta Electronics FFB0412SHN-F00	267.8 Pa	1.075 in H2O	12 VDC	60 °C	60 °C	-10 °C	-10 °C	24 CFM	0.672 mł/min	50000 Hrs	Ball	Plastic	32.21 g	0.071 lb	3 Wire Leads	28 mm	Tubeaxial	40 mm	Square	40 mm	Plastic	0.5 A	Locked Rotor Protection Speed Sensor (Tach)	54.5 dB	CE CSA UL VDE	13000 RPM	6 W
Delta Electronics FFB0412HHN	92.2 Pa	0.37 in H2O	12 VDC	70 °C	70 °C	-10 °C	-10 °C	13.2 CFM	0.37 m³/min	70000 Hrs	Ball	Plastic	32.21 g	0.071 lb	2 Wire Leads	28 mm	Tubeaxial	40 mm	Square	40 mm	Plastic	110 mA		41 dB	CE CSA UL VDE	8000 RPM	1.32 W	13.8 VDC	4.5 V
Delta Electronics FFB0412SHN-AR00	265.5 Pa	1.066 in H2O	12 VDC	70 °C	70 °C	-10 °C	-10 °C	23.1 CFM	0.647 m³/min	70000 Hrs	Ball	Plastic	35.38 g	0.078 lb	3 Wire Leads	28 mm	Tubeaxial	40 mm	Square	40 mm	Plastic	400 mA	Locked Rotor Sensor	52.5 dB(A)	CE CSA UL VDE	13000 RPM	4.8 W	12.6 VDC	4 VDC
Delta Electronics FFB0412SHN	267.8 Pa	1.075 in H2O	12 VDC	60 °C	60 °C	-10 °C	-10 °C	24 CFM	0.672 mł/min	50000 Hrs	Ball	Plastic	32.21 g	0.071 lb	2 Wire Leads	28 mm	Tubeaxial	40 mm	Square	40 mm	Plastic	0.5 A		54.5 dB	CE CSA UL VDE	13000 RPM	6 W
Delta Electronics FFB0412UHN-SP4Z	784.7 Pa	3.15 in H2O	12 VDC	70 °C	70 °C	-10 °C	-10 °C	26.5 CFM	0.742 m³/min	70000 Hrs	Ball	Plastic	52.16 g	0.115 lb	4 Wire Leads	28 mm	Tubeaxial	40 mm	Square	40 mm	Plastic	0.84 A	Locked Rotor Protection PWM Control Speed Sensor (Tach)	59.9 dB(A)	CE CSA UL VDE	23000 RPM	10.08 W	13.2 VDC	7 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 22.18
		10	$ 21.17
		25	$ 19.15
		50	$ 17.64
		100	$ 15.83
		288	$ 14.62
		576	$ 13.61

Description

General part information

FFB0412 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 26.5 CFM (0.742m³/min) 4 Wire Leads
