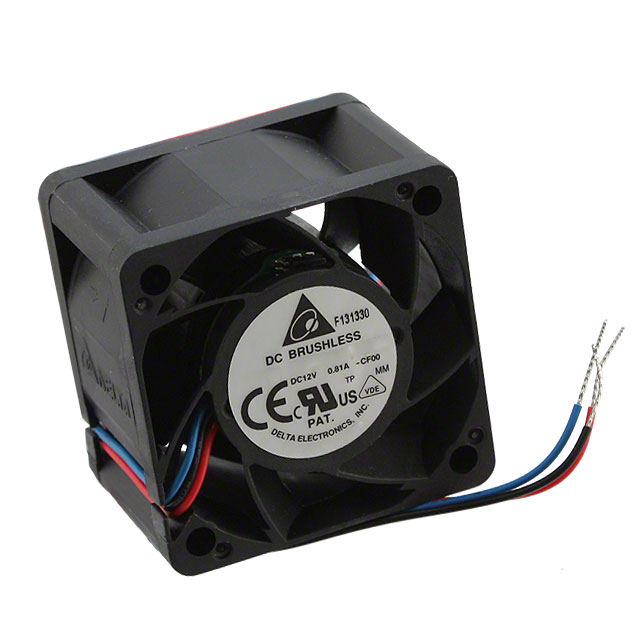

FFB0412UHN-CF00
ActiveDelta Electronics
FAN AXIAL 40X28MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
FFB0412UHN-CF00
ActiveDelta Electronics
FAN AXIAL 40X28MM 12VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | FFB0412UHN-CF00 |
|---|---|
| Air Flow | 27.1 CFM |
| Air Flow | 0.759 m³/min |
| Approval Agency | CE, cURus, VDE |
| Bearing Type | Ball |
| Current Rating (Amps) | 650 mA |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 70000 Hrs |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Noise | 58.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 7.8 W |
| RPM | 18500 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 40 mm |
| Size / Dimension [z] | 40 mm |
| Static Pressure | 525.8 Pa |
| Static Pressure | 2.111 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Weight | 47.17 g |
| Weight | 0.104 lb |
| Width [y] | 28 mm |
FFB0412 Series
| Part | Static Pressure | Static Pressure | Voltage - Rated | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Air Flow | Air Flow | Lifetime @ Temp. | Bearing Type | Material - Blade | Weight | Weight | Termination | Width [y] | Fan Type | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Material - Frame | Current Rating (Amps) | Features | Noise | Approval Agency | RPM | Power (Watts) | Voltage Range [Max] | Voltage Range [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 525.8 Pa | 2.111 in H2O | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | 27.1 CFM | 0.759 m³/min | 70000 Hrs | Ball | Plastic | 47.17 g | 0.104 lb | 3 Wire Leads | 28 mm | Tubeaxial | 40 mm | Square | 40 mm | Plastic | 650 mA | Locked Rotor Protection Speed Sensor (Tach) | 58.5 dB | CE cURus VDE | 18500 RPM | 7.8 W | ||
Delta Electronics | 1105.9 Pa | 4.44 in H2O | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | 32.9 CFM | 0.921 m³/min | 70000 Hrs | Ball | Plastic | 51.26 g | 0.113 lb | 4 Wire Leads | 28 mm | Tubeaxial | 40 mm | Square | 40 mm | Plastic | 1.45 A | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 64 dB(A) | CE cURus TUV | 25000 RPM | 17.4 W | 13.2 VDC | 10.8 VDC |
Delta Electronics | |||||||||||||||||||||||||||||
Delta Electronics | 306.9 Pa | 1.232 in H2O | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | 20.3 CFM | 0.568 mł/min | 70000 Hrs | Ball | Plastic | 47.17 g | 0.104 lb | 3 Wire Leads | 28 mm | Tubeaxial | 40 mm | Square | 40 mm | Plastic | 0.33 A | Locked Rotor Protection Speed Sensor (Tach) | 53 dB | CE cURus VDE | 14500 RPM | 3.96 W | ||
Delta Electronics | 265.5 Pa | 1.066 in H2O | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | 23.1 CFM | 0.647 m³/min | 70000 Hrs | Ball | Plastic | 35.38 g | 0.078 lb | 3 Wire Leads | 28 mm | Tubeaxial | 40 mm | Square | 40 mm | Plastic | 400 mA | Locked Rotor Protection Speed Sensor (Tach) | 52.5 dB(A) | CE CSA UL VDE | 13000 RPM | 4.8 W | 12.6 VDC | 4 VDC |
Delta Electronics | 267.8 Pa | 1.075 in H2O | 12 VDC | 60 °C | 60 °C | -10 °C | -10 °C | 24 CFM | 0.672 mł/min | 50000 Hrs | Ball | Plastic | 32.21 g | 0.071 lb | 3 Wire Leads | 28 mm | Tubeaxial | 40 mm | Square | 40 mm | Plastic | 0.5 A | Locked Rotor Protection Speed Sensor (Tach) | 54.5 dB | CE CSA UL VDE | 13000 RPM | 6 W | ||
Delta Electronics | 92.2 Pa | 0.37 in H2O | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | 13.2 CFM | 0.37 m³/min | 70000 Hrs | Ball | Plastic | 32.21 g | 0.071 lb | 2 Wire Leads | 28 mm | Tubeaxial | 40 mm | Square | 40 mm | Plastic | 110 mA | 41 dB | CE CSA UL VDE | 8000 RPM | 1.32 W | 13.8 VDC | 4.5 V | |
Delta Electronics | 265.5 Pa | 1.066 in H2O | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | 23.1 CFM | 0.647 m³/min | 70000 Hrs | Ball | Plastic | 35.38 g | 0.078 lb | 3 Wire Leads | 28 mm | Tubeaxial | 40 mm | Square | 40 mm | Plastic | 400 mA | Locked Rotor Sensor | 52.5 dB(A) | CE CSA UL VDE | 13000 RPM | 4.8 W | 12.6 VDC | 4 VDC |
Delta Electronics | 267.8 Pa | 1.075 in H2O | 12 VDC | 60 °C | 60 °C | -10 °C | -10 °C | 24 CFM | 0.672 mł/min | 50000 Hrs | Ball | Plastic | 32.21 g | 0.071 lb | 2 Wire Leads | 28 mm | Tubeaxial | 40 mm | Square | 40 mm | Plastic | 0.5 A | 54.5 dB | CE CSA UL VDE | 13000 RPM | 6 W | |||
Delta Electronics | 784.7 Pa | 3.15 in H2O | 12 VDC | 70 °C | 70 °C | -10 °C | -10 °C | 26.5 CFM | 0.742 m³/min | 70000 Hrs | Ball | Plastic | 52.16 g | 0.115 lb | 4 Wire Leads | 28 mm | Tubeaxial | 40 mm | Square | 40 mm | Plastic | 0.84 A | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 59.9 dB(A) | CE CSA UL VDE | 23000 RPM | 10.08 W | 13.2 VDC | 7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.26 | |
| 10 | $ 18.25 | |||
| 25 | $ 16.86 | |||
| 50 | $ 15.88 | |||
| 100 | $ 14.95 | |||
| 250 | $ 13.81 | |||
| 500 | $ 13.00 | |||
Description
General part information
FFB0412 Series
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 27.1 CFM (0.759m³/min) 3 Wire Leads
