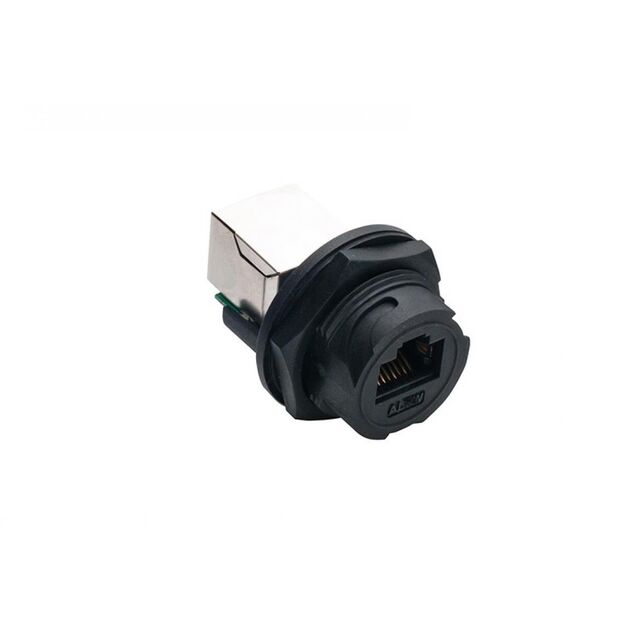

RDP-5SPFFH-TCM7001

Active

Amphenol LTW

RJ45 D SIZE

Search across all available documentation for this part.

Active

Amphenol LTW

RJ45 D SIZE

Technical Specifications

Parameters and characteristics for this part

Specification	RDP-5SPFFH-TCM7001

Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Phosphor Bronze
Features	Circular Bayonet Coupling
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Bulkhead, Panel Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Ratings	Cat5e
Shielding	Shielded

Part	Shell Material, Finish	Mounting Type	Ingress Protection	Convert To (Adapter End)	Features	Type	Housing Material	Shielding	Convert From (Adapter End)	Contact Finish	Contact Finish Thickness	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Ratings
Amphenol LTW RDP-5SPFFH-TCU7001	Glass Filled Nylon Polyamide (PA)	Bulkhead Panel Mount	IP67 - Dust Tight Waterproof	8p8c (RJ45) Jack	Circular Threaded Coupling	Coupler	FR4 Epoxy Glass	Shielded	Jack 8p8c (RJ45)
Amphenol LTW RDP-5SPFFH-TCM7001		Bulkhead Panel Mount	IP67 - Dust Tight Waterproof		Circular Bayonet Coupling		Polyamide (PA) Nylon Glass Filled	Shielded		Gold	Flash	Phosphor Bronze	-40 °C	105 ░C	Cat5e
Amphenol LTW RDP-5SPFFH-TSM7001		Bulkhead Panel Mount	IP67 - Dust Tight Waterproof		Circular Bayonet Coupling		Polyamide (PA) Nylon Glass Filled	Shielded		Gold	Flash	Phosphor Bronze	-40 °C	105 ░C	Cat5e

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector Shielded Cat5e
