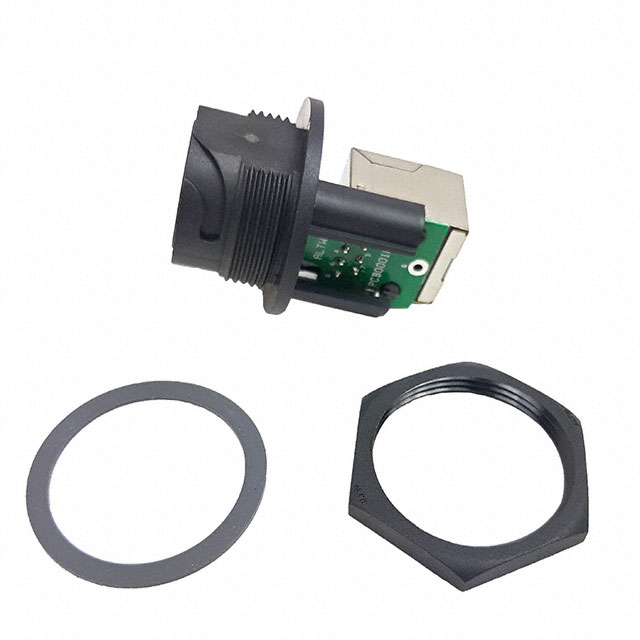

RDP-5SPFFH-TCU7001

Active

Amphenol LTW

CONN MOD COUPLER 8P8C TO 8P8C

Search across all available documentation for this part.

Active

Amphenol LTW

CONN MOD COUPLER 8P8C TO 8P8C

Technical Specifications

Parameters and characteristics for this part

Specification	RDP-5SPFFH-TCU7001

Convert From (Adapter End)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	8p8c (RJ45), Jack
Features	Circular Threaded Coupling
Housing Material	FR4 Epoxy Glass
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Bulkhead, Panel Mount
Shell Material, Finish	Nylon, Glass Filled, Polyamide (PA)
Shielding	Shielded
Type	Coupler

Part	Shell Material, Finish	Mounting Type	Ingress Protection	Convert To (Adapter End)	Features	Type	Housing Material	Shielding	Convert From (Adapter End)	Contact Finish	Contact Finish Thickness	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Ratings
Amphenol LTW RDP-5SPFFH-TCU7001	Glass Filled Nylon Polyamide (PA)	Bulkhead Panel Mount	IP67 - Dust Tight Waterproof	8p8c (RJ45) Jack	Circular Threaded Coupling	Coupler	FR4 Epoxy Glass	Shielded	Jack 8p8c (RJ45)
Amphenol LTW RDP-5SPFFH-TCM7001		Bulkhead Panel Mount	IP67 - Dust Tight Waterproof		Circular Bayonet Coupling		Polyamide (PA) Nylon Glass Filled	Shielded		Gold	Flash	Phosphor Bronze	-40 °C	105 ░C	Cat5e
Amphenol LTW RDP-5SPFFH-TSM7001		Bulkhead Panel Mount	IP67 - Dust Tight Waterproof		Circular Bayonet Coupling		Polyamide (PA) Nylon Glass Filled	Shielded		Gold	Flash	Phosphor Bronze	-40 °C	105 ░C	Cat5e

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Modular Coupler Connector Jack, 8p8c (RJ45) To Jack, 8p8c (RJ45) Shielded
