G8015H05B-RGR

Active

Mechatronics Fan Group

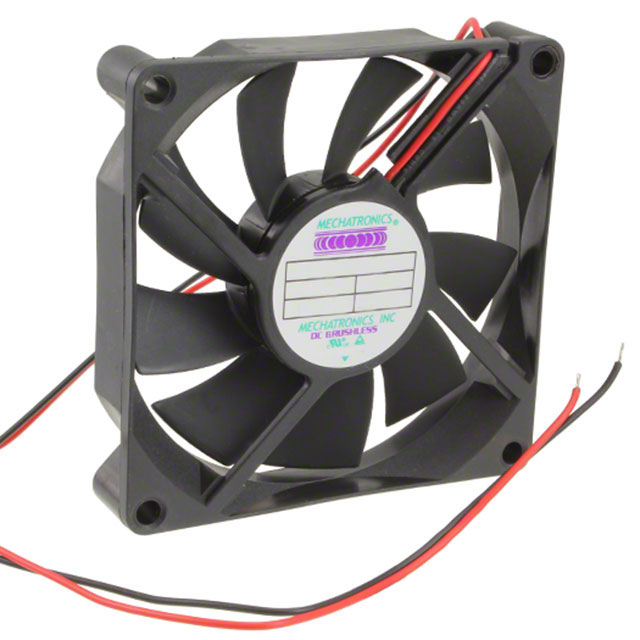

FAN AXIAL 80X15.3MM 5VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AC/DC Fans & Blowers Catalog

G8015H05B-RGR

Active

Mechatronics Fan Group

FAN AXIAL 80X15.3MM 5VDC WIRE

Deep-Dive with AI

DocumentsDatasheet AC/DC Fans & Blowers Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.30

Description

General part information

G8015 Series

Fan Tubeaxial 5VDC Square - 80mm L x 80mm H Ball 37.0 CFM (1.04m³/min) 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

AC/DC Fans & Blowers Catalog

Datasheet

Specification	G8015H05B-RGR	G8015 Series

Air Flow	1.04 mł/min	0.728 - 1.2 mł/min
Air Flow	37 CFM	26 - 43 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	-	0.09 - 320 mA
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP)	Thermal Overload Protector (TOP), Speed Sensor (Tach), Locked Rotor Sensor, Alarm Sensor, Conformal Coating
Ingress Protection	-	IP57 - Dust Protected, Waterproof
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Noise	36 dB	28 - 40 dB
RPM	4000 RPM	2800 - 4800 RPM
Size / Dimension [x]	80 mm	80 mm
Size / Dimension [y]	80 mm	80 mm
Static Pressure	42.3 Pa	22.4 - 57.3 Pa
Static Pressure	0.17 in H2O	0.09 - 0.23 in H2O
Termination	2 Wire Leads	2 Wire Leads, 3 Wire Leads, 4 Wire Leads
Voltage - Rated	5 V	5 - 24 V
Weight	0.128 lb	0.128 lb
Weight	58.06 g	58.06 g
Width [x]	15.3 mm	15.3 mm

Part

Termination

RPM

Fan Type

Static Pressure

Material - Blade

Voltage - Rated

Noise

Approval Agency

Bearing Type

Features

Size / Dimension [y]

Size / Dimension [x]

Width [x]

Air Flow

Weight

Current Rating (Amps)

Ingress Protection

Mechatronics Fan Group

G8015H05B-RGR

2 Wire Leads

4000 RPM

Tubeaxial

42.3 Pa

0.17 in H2O

Polybutylene Terephthalate (PBT)

5 V

36 dB

CE, cUL, TUV, UL

Ball

Thermal Overload Protector (TOP)

80 mm

15.3 mm

1.04 mł/min

37 CFM

0.128 lb

58.06 g

Mechatronics Fan Group

G8015S12B1-RGR

3 Wire Leads

2800 RPM

Tubeaxial

22.4 Pa

0.09 in H2O

Polybutylene Terephthalate (PBT)

12 VDC

28 dB

CE, cUL, TUV, UL

Ball

Speed Sensor (Tach), Thermal Overload Protector (TOP)

80 mm

15.3 mm

0.728 m³/min

26 CFM

0.128 lb

58.06 g

100 mA

Mechatronics Fan Group

G8015X12B-AGR-EM

2 Wire Leads

4800 RPM

Tubeaxial

57.3 Pa

0.23 in H2O

Polybutylene Terephthalate (PBT)

12 VDC

40 dB(A)

CE, cUL, TUV, UL

Ball

Thermal Overload Protector (TOP)

80 mm

15.3 mm

1.2 m³/min

43 CFM

0.128 lb

58.06 g

0.35 A

IP57 - Dust Protected, Waterproof

Mechatronics Fan Group

G8015L12B2-RGR-WS

4 Wire Leads

3200 RPM

Tubeaxial

27.4 Pa

0.11 in H2O

Polybutylene Terephthalate (PBT)

12 VDC

31 dB(A)

CE, cUL, TUV, UL

Ball

Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP)

80 mm

15.3 mm

0.812 mł/min

29 CFM

0.128 lb

58.06 g

Mechatronics Fan Group

G8015X24B1-RGR-L40

3 Wire Leads

4800 RPM

Tubeaxial

57.3 Pa

0.23 in H2O

Polybutylene Terephthalate (PBT)

24 VDC

40 dB(A)

CE, cUL, TUV, UL

Ball

Speed Sensor (Tach), Thermal Overload Protector (TOP)

80 mm

15.3 mm

1.2 m³/min

43 CFM

0.128 lb

58.06 g

0.25 A

Mechatronics Fan Group

G8015X12B-RGR

2 Wire Leads

4800 RPM

Tubeaxial

57.3 Pa

0.23 in H2O

Polybutylene Terephthalate (PBT)

12 VDC

40 dB(A)

CE, cUL, TUV, UL

Ball

Thermal Overload Protector (TOP)

80 mm

15.3 mm

1.2 m³/min

43 CFM

0.128 lb

58.06 g

0.35 A

Mechatronics Fan Group

G8015M24B-RGR

2 Wire Leads

3600 RPM

Tubeaxial

34.9 Pa

0.14 in H2O

Polybutylene Terephthalate (PBT)

24 VDC

34 dB(A)

CE, cUL, TUV, UL

Ball

Thermal Overload Protector (TOP)

80 mm

15.3 mm

0.896 m³/min

32 CFM

0.128 lb

58.06 g

120 mA

Mechatronics Fan Group

G8015X12B1-RGR-TTL

3 Wire Leads

4800 RPM

Tubeaxial

57.3 Pa

0.23 in H2O

Polybutylene Terephthalate (PBT)

12 VDC

40 dB(A)

CE, cUL, TUV, UL

Ball

Speed Sensor (Tach), Thermal Overload Protector (TOP)

80 mm

15.3 mm

1.2 m³/min

43 CFM

0.128 lb

58.06 g

0.35 A

Mechatronics Fan Group

G8015S12B-RGR

2 Wire Leads

2800 RPM

Tubeaxial

22.4 Pa

0.09 in H2O

Polybutylene Terephthalate (PBT)

12 VDC

28 dB

CE, cUL, TUV, UL

Ball

Thermal Overload Protector (TOP)

80 mm

15.3 mm

0.728 m³/min

26 CFM

0.128 lb

58.06 g

100 mA

Mechatronics Fan Group

G8015S24B-RGR-L15

2 Wire Leads

2800 RPM

Tubeaxial

22.4 Pa

0.09 in H2O

Polybutylene Terephthalate (PBT)

24 VDC

28 dB

CE, cUL, TUV, UL

Ball

Thermal Overload Protector (TOP)

80 mm

15.3 mm

0.728 m³/min

26 CFM

0.128 lb

58.06 g

Part	Termination	RPM	Fan Type	Static Pressure	Static Pressure	Material - Blade	Voltage - Rated	Noise	Approval Agency	Bearing Type	Features	Size / Dimension [y]	Size / Dimension [x]	Width [x]	Air Flow	Air Flow	Weight	Weight	Current Rating (Amps)	Ingress Protection
Mechatronics Fan Group G8015H05B-RGR	2 Wire Leads	4000 RPM	Tubeaxial	42.3 Pa	0.17 in H2O	Polybutylene Terephthalate (PBT)	5 V	36 dB	CE, cUL, TUV, UL	Ball	Thermal Overload Protector (TOP)	80 mm	80 mm	15.3 mm	1.04 mł/min	37 CFM	0.128 lb	58.06 g
Mechatronics Fan Group G8015S12B1-RGR	3 Wire Leads	2800 RPM	Tubeaxial	22.4 Pa	0.09 in H2O	Polybutylene Terephthalate (PBT)	12 VDC	28 dB	CE, cUL, TUV, UL	Ball	Speed Sensor (Tach), Thermal Overload Protector (TOP)	80 mm	80 mm	15.3 mm	0.728 m³/min	26 CFM	0.128 lb	58.06 g	100 mA
Mechatronics Fan Group G8015X12B-AGR-EM	2 Wire Leads	4800 RPM	Tubeaxial	57.3 Pa	0.23 in H2O	Polybutylene Terephthalate (PBT)	12 VDC	40 dB(A)	CE, cUL, TUV, UL	Ball	Thermal Overload Protector (TOP)	80 mm	80 mm	15.3 mm	1.2 m³/min	43 CFM	0.128 lb	58.06 g	0.35 A	IP57 - Dust Protected, Waterproof
Mechatronics Fan Group G8015L12B2-RGR-WS	4 Wire Leads	3200 RPM	Tubeaxial	27.4 Pa	0.11 in H2O	Polybutylene Terephthalate (PBT)	12 VDC	31 dB(A)	CE, cUL, TUV, UL	Ball	Alarm Sensor, Locked Rotor Sensor, Thermal Overload Protector (TOP)	80 mm	80 mm	15.3 mm	0.812 mł/min	29 CFM	0.128 lb	58.06 g
Mechatronics Fan Group G8015X24B1-RGR-L40	3 Wire Leads	4800 RPM	Tubeaxial	57.3 Pa	0.23 in H2O	Polybutylene Terephthalate (PBT)	24 VDC	40 dB(A)	CE, cUL, TUV, UL	Ball	Speed Sensor (Tach), Thermal Overload Protector (TOP)	80 mm	80 mm	15.3 mm	1.2 m³/min	43 CFM	0.128 lb	58.06 g	0.25 A
Mechatronics Fan Group G8015X12B-RGR	2 Wire Leads	4800 RPM	Tubeaxial	57.3 Pa	0.23 in H2O	Polybutylene Terephthalate (PBT)	12 VDC	40 dB(A)	CE, cUL, TUV, UL	Ball	Thermal Overload Protector (TOP)	80 mm	80 mm	15.3 mm	1.2 m³/min	43 CFM	0.128 lb	58.06 g	0.35 A
Mechatronics Fan Group G8015M24B-RGR	2 Wire Leads	3600 RPM	Tubeaxial	34.9 Pa	0.14 in H2O	Polybutylene Terephthalate (PBT)	24 VDC	34 dB(A)	CE, cUL, TUV, UL	Ball	Thermal Overload Protector (TOP)	80 mm	80 mm	15.3 mm	0.896 m³/min	32 CFM	0.128 lb	58.06 g	120 mA
Mechatronics Fan Group G8015X12B1-RGR-TTL	3 Wire Leads	4800 RPM	Tubeaxial	57.3 Pa	0.23 in H2O	Polybutylene Terephthalate (PBT)	12 VDC	40 dB(A)	CE, cUL, TUV, UL	Ball	Speed Sensor (Tach), Thermal Overload Protector (TOP)	80 mm	80 mm	15.3 mm	1.2 m³/min	43 CFM	0.128 lb	58.06 g	0.35 A
Mechatronics Fan Group G8015S12B-RGR	2 Wire Leads	2800 RPM	Tubeaxial	22.4 Pa	0.09 in H2O	Polybutylene Terephthalate (PBT)	12 VDC	28 dB	CE, cUL, TUV, UL	Ball	Thermal Overload Protector (TOP)	80 mm	80 mm	15.3 mm	0.728 m³/min	26 CFM	0.128 lb	58.06 g	100 mA
Mechatronics Fan Group G8015S24B-RGR-L15	2 Wire Leads	2800 RPM	Tubeaxial	22.4 Pa	0.09 in H2O	Polybutylene Terephthalate (PBT)	24 VDC	28 dB	CE, cUL, TUV, UL	Ball	Thermal Overload Protector (TOP)	80 mm	80 mm	15.3 mm	0.728 m³/min	26 CFM	0.128 lb	58.06 g
