G125-3041296L4

Active

Harwin Inc.

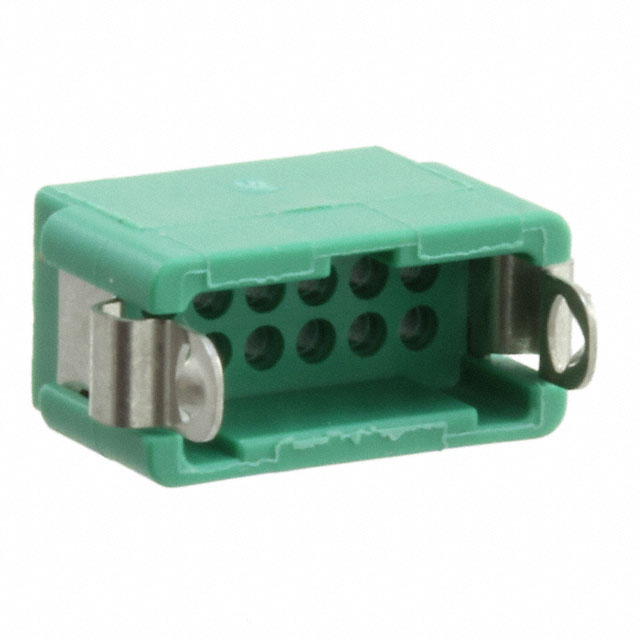

WIRE-TO-BOARD CONNECTOR, GECKO G125 SERIES, PLUG, 12, 1.25 MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet G125-2040696L0 +7

G125-3041296L4

Active

Harwin Inc.

WIRE-TO-BOARD CONNECTOR, GECKO G125 SERIES, PLUG, 12, 1.25 MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet G125-2040696L0 +7

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	G125-3041296L4

Connector Type	Header
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Lock
Features	Potting Wall
Insulation Material	Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.049 in
Pitch [x]	1.25 mm
Row Spacing	1.25 mm
Row Spacing	0.049 in

G125-304 Series

Part	Row Spacing	Row Spacing	Note	Number of Rows	Connector Type	Features	Contact Termination	Insulation Material	Pitch [x]	Pitch [x]	Number of Positions	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Number of Positions	Fastening Type
Harwin Inc. G125-3042696L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	26	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3043496L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	34	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3041696L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm		Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)	16
Harwin Inc. G125-3041696L4	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm		Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)	16	Latch Lock
Harwin Inc. G125-3045096L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	50	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3041096L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	10	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3040696L0	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	6	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)
Harwin Inc. G125-3041296L4	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	12	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)		Latch Lock
Harwin Inc. G125-3042096L4	1.25 mm	0.049 in	Contacts Not Included	2	Header	Potting Wall	Crimp	Glass Filled Halogen Free Nylon 4T Polyamide (PA4T)	0.049 in	1.25 mm	20	Male Pin	-65 ░C	150 °C	Free Hanging (In-Line)		Latch Lock

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.10
		10	$ 2.82
		30	$ 2.67
		50	$ 2.60
		100	$ 2.48
		250	$ 2.18
Newark	Each	1	$ 4.05
		10	$ 3.30
		25	$ 3.08
		50	$ 2.86
		100	$ 2.69
		250	$ 2.48
		500	$ 2.33
		1000	$ 2.20

Description

General part information

G125-304 Series

12 Rectangular Connectors - Housings Header 0.049" (1.25mm)
