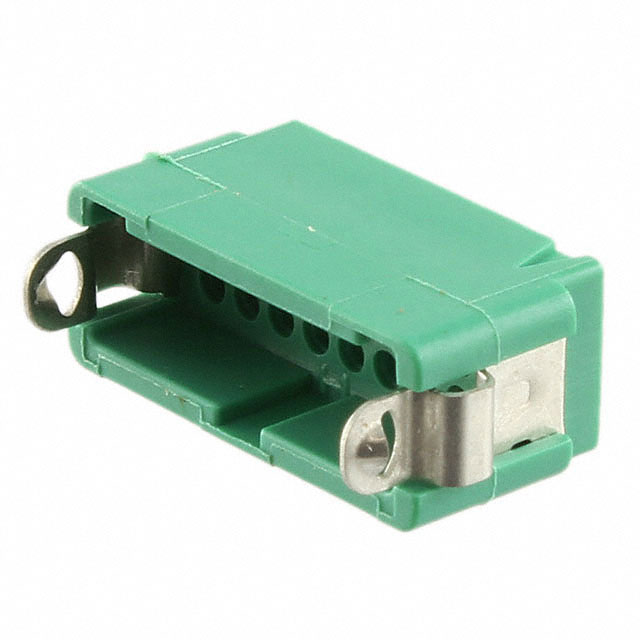

BOARD CONNECTOR, 16 CONTACT(S), 2 ROW(S), MALE, CRIMP TERMINAL, LEAD FREE
Deep-Dive with AI
Search across all available documentation for this part.
G125-3041696L4
ActiveHarwin Inc.
BOARD CONNECTOR, 16 CONTACT(S), 2 ROW(S), MALE, CRIMP TERMINAL, LEAD FREE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | G125-3041696L4 |
|---|---|
| Connector Type | Header |
| Contact Termination | Crimp |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock |
| Features | Potting Wall |
| Insulation Material | Polyamide (PA4T), Nylon 4T, Halogen Free, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Pitch [x] | 0.049 in |
| Pitch [x] | 1.25 mm |
| Row Spacing | 1.25 mm |
| Row Spacing | 0.049 in |
G125-304 Series
| Part | Row Spacing | Row Spacing | Note | Number of Rows | Connector Type | Features | Contact Termination | Insulation Material | Pitch [x] | Pitch [x] | Number of Positions | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Number of Positions | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 1.25 mm | 0.049 in | Contacts Not Included | 2 | Header | Potting Wall | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 26 | Male Pin | -65 ░C | 150 °C | Free Hanging (In-Line) | ||
Harwin Inc. | 1.25 mm | 0.049 in | Contacts Not Included | 2 | Header | Potting Wall | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 34 | Male Pin | -65 ░C | 150 °C | Free Hanging (In-Line) | ||
Harwin Inc. | 1.25 mm | 0.049 in | Contacts Not Included | 2 | Header | Potting Wall | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | Male Pin | -65 ░C | 150 °C | Free Hanging (In-Line) | 16 | ||
Harwin Inc. | 1.25 mm | 0.049 in | Contacts Not Included | 2 | Header | Potting Wall | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | Male Pin | -65 ░C | 150 °C | Free Hanging (In-Line) | 16 | Latch Lock | |
Harwin Inc. | 1.25 mm | 0.049 in | Contacts Not Included | 2 | Header | Potting Wall | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 50 | Male Pin | -65 ░C | 150 °C | Free Hanging (In-Line) | ||
Harwin Inc. | 1.25 mm | 0.049 in | Contacts Not Included | 2 | Header | Potting Wall | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 10 | Male Pin | -65 ░C | 150 °C | Free Hanging (In-Line) | ||
Harwin Inc. | 1.25 mm | 0.049 in | Contacts Not Included | 2 | Header | Potting Wall | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 6 | Male Pin | -65 ░C | 150 °C | Free Hanging (In-Line) | ||
Harwin Inc. | 1.25 mm | 0.049 in | Contacts Not Included | 2 | Header | Potting Wall | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 12 | Male Pin | -65 ░C | 150 °C | Free Hanging (In-Line) | Latch Lock | |
Harwin Inc. | 1.25 mm | 0.049 in | Contacts Not Included | 2 | Header | Potting Wall | Crimp | Glass Filled Halogen Free Nylon 4T Polyamide (PA4T) | 0.049 in | 1.25 mm | 20 | Male Pin | -65 ░C | 150 °C | Free Hanging (In-Line) | Latch Lock |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
G125-304 Series
16 Rectangular Connectors - Housings Header 0.049" (1.25mm)
