LCM-S01601DSR/D

Active

Lumex Opto/Components Inc.

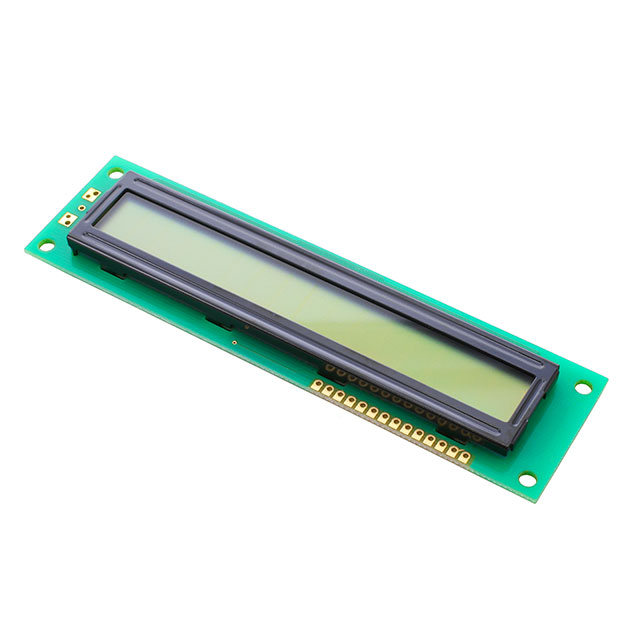

LCD MODULE 16X1 CHAR RFL STN

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MODULE 16X1 CHAR RFL STN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Reflective 5 x 8 Dots Without Backlight 80.00mm x 36.00mm x 8.80mm

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	LCM-S01601DSR/D	LCM-S01601 Series

Background Color	-	Green
Backlight	Without Backlight	Without Backlight
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size	-	6.56 mm
Character Size	-	3.07 mm
Display Format [x]	16	16
Display Format [y]	1	1
Display Mode	Reflective	Reflective, Transflective
Display Type	-	STN - Super-Twisted Nematic, TN - Twisted Nematic
Dot Size [x]	0.55 mm	0.55 mm
Dot Size [y]	0.75 mm	0.75 mm
Interface	-	Parallel
Number of Characters	16	16
Outline L x W x H [x]	80 mm	80 mm
Outline L x W x H [y]	36 mm	36 mm
Outline L x W x H [z]	8.8 mm	8.8 - 12.7 mm
Viewing Area [x]	66 mm	66 mm
Viewing Area [y]	16 mm	16 mm
Voltage - Supply [Max]	5.3 V	5.3 V
Voltage - Supply [Min]	4.7 V	4.7 V

LCD MODULE 16X1 CHAR RFL STN

Part	Display Format [x]	Display Format [y]	Outline L x W x H [y]	Outline L x W x H [x]	Outline L x W x H [z]	Number of Characters	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Format [y]	Character Format [x]	Backlight	Viewing Area [x]	Viewing Area [y]	Display Mode	Dot Size [y]	Dot Size [x]	Interface	Background Color	Display Type	Character Size [z]	Character Size [y]
Lumex Opto/Components Inc. LCM-S01601DSR/D	16	1	36 mm	80 mm	8.8 mm	16	4.7 V	5.3 V	8 Dots	5 Dots	Without Backlight	66 mm	16 mm	Reflective	0.75 mm	0.55 mm
Lumex Opto/Components Inc. LCM-S01601DSR	16	1	36 mm	80 mm	8.8 mm	16			8 Dots	5 Dots	Without Backlight	66 mm	16 mm	Reflective	0.75 mm	0.55 mm	Parallel	Green	STN - Super-Twisted Nematic	6.56 mm	3.07 mm
Lumex Opto/Components Inc. LCM-S01601DTR	16	1	36 mm	80 mm	8.8 mm	16			8 Dots	5 Dots	Without Backlight	66 mm	16 mm	Reflective	0.75 mm	0.55 mm	Parallel	Green	TN - Twisted Nematic	6.56 mm	3.07 mm
Lumex Opto/Components Inc. LCM-S01601DSF	16	1	36 mm	80 mm	12.7 mm	16			8 Dots	5 Dots		66 mm	16 mm	Transflective	0.75 mm	0.55 mm	Parallel	Green	STN - Super-Twisted Nematic	6.56 mm	3.07 mm
