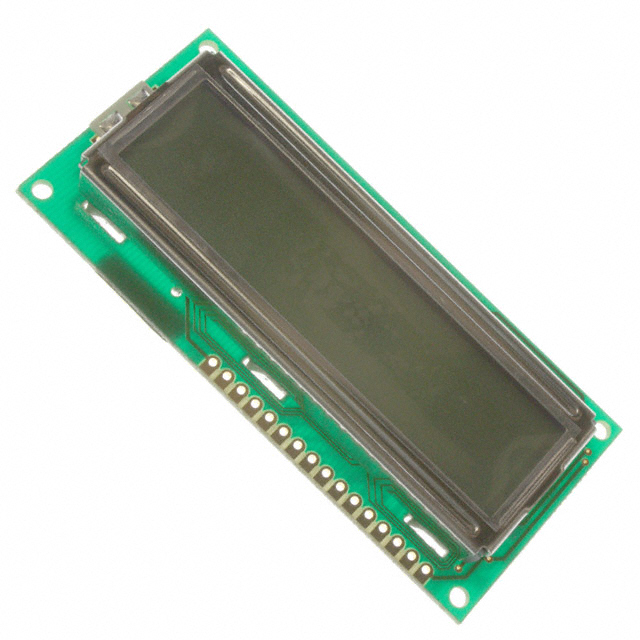

LCM-S01601DSF

Active

Lumex Opto/Components Inc.

LCD MOD 16DIG 16X1 TRANS YLW/GRN

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LCD MOD 16DIG 16X1 TRANS YLW/GRN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 80.00mm x 36.00mm x 12.70mm

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	LCM-S01601DSF	LCM-S01601 Series

Background Color	Green	Green
Backlight	-	Without Backlight
Character Format [x]	5 Dots	5 Dots
Character Format [y]	8 Dots	8 Dots
Character Size [y]	3.07 mm	3.07 mm
Character Size [z]	6.56 mm	6.56 mm
Display Format [x]	16	16
Display Format [y]	1	1
Display Mode	Transflective	Reflective, Transflective
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic, TN - Twisted Nematic
Dot Size [x]	0.55 mm	0.55 mm
Dot Size [y]	0.75 mm	0.75 mm
Interface	Parallel	Parallel
Number of Characters	16	16
Outline L x W x H [x]	80 mm	80 mm
Outline L x W x H [y]	36 mm	36 mm
Outline L x W x H [z]	12.7 mm	8.8 - 12.7 mm
Viewing Area [x]	66 mm	66 mm
Viewing Area [y]	16 mm	16 mm
Voltage - Supply	-	4.7 V
Voltage - Supply	-	5.3 V

LCD MODULE 16X1 CHAR RFL STN

Part	Display Format [x]	Display Format [y]	Outline L x W x H [y]	Outline L x W x H [x]	Outline L x W x H [z]	Number of Characters	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Format [y]	Character Format [x]	Backlight	Viewing Area [x]	Viewing Area [y]	Display Mode	Dot Size [y]	Dot Size [x]	Interface	Background Color	Display Type	Character Size [z]	Character Size [y]
Lumex Opto/Components Inc. LCM-S01601DSR/D	16	1	36 mm	80 mm	8.8 mm	16	4.7 V	5.3 V	8 Dots	5 Dots	Without Backlight	66 mm	16 mm	Reflective	0.75 mm	0.55 mm
Lumex Opto/Components Inc. LCM-S01601DSR	16	1	36 mm	80 mm	8.8 mm	16			8 Dots	5 Dots	Without Backlight	66 mm	16 mm	Reflective	0.75 mm	0.55 mm	Parallel	Green	STN - Super-Twisted Nematic	6.56 mm	3.07 mm
Lumex Opto/Components Inc. LCM-S01601DTR	16	1	36 mm	80 mm	8.8 mm	16			8 Dots	5 Dots	Without Backlight	66 mm	16 mm	Reflective	0.75 mm	0.55 mm	Parallel	Green	TN - Twisted Nematic	6.56 mm	3.07 mm
Lumex Opto/Components Inc. LCM-S01601DSF	16	1	36 mm	80 mm	12.7 mm	16			8 Dots	5 Dots		66 mm	16 mm	Transflective	0.75 mm	0.55 mm	Parallel	Green	STN - Super-Twisted Nematic	6.56 mm	3.07 mm
