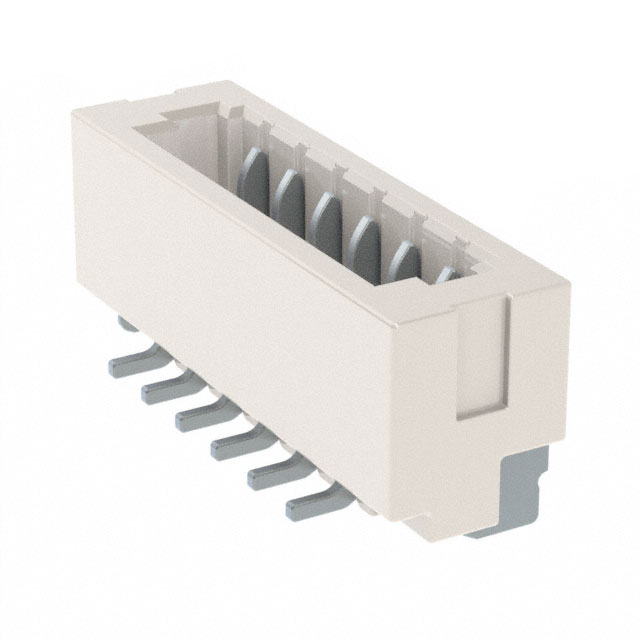

10144042-06011LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD 6POS 0.8MM
Deep-Dive with AI
Search across all available documentation for this part.
10144042-06011LF
ActiveAmphenol ICC (FCI)
CONN HEADER SMD 6POS 0.8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10144042-06011LF |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Glow Wire Compliant, Solder Retention, Pick and Place |
| Insulation Color | Cream |
| Insulation Height [z] | 2.7 mm |
| Insulation Height [z] | 0.106 in |
| Insulation Material | Thermoplastic, Halogen Free |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch - Mating | 0.031 in |
| Pitch - Mating | 0.8 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 30 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.00 | |
| 10 | $ 0.65 | |||
| 100 | $ 0.46 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 1.00 | ||
| 10 | $ 0.65 | |||
| 100 | $ 0.46 | |||
| 500 | $ 0.40 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 2300 | $ 0.37 | ||
| 4600 | $ 0.37 | |||
| 6900 | $ 0.36 | |||
| 11500 | $ 0.35 | |||
| 16100 | $ 0.34 | |||
| 23000 | $ 0.34 | |||
Description
General part information
10144042 Series
Connector Header Surface Mount 6 position 0.031" (0.80mm)
