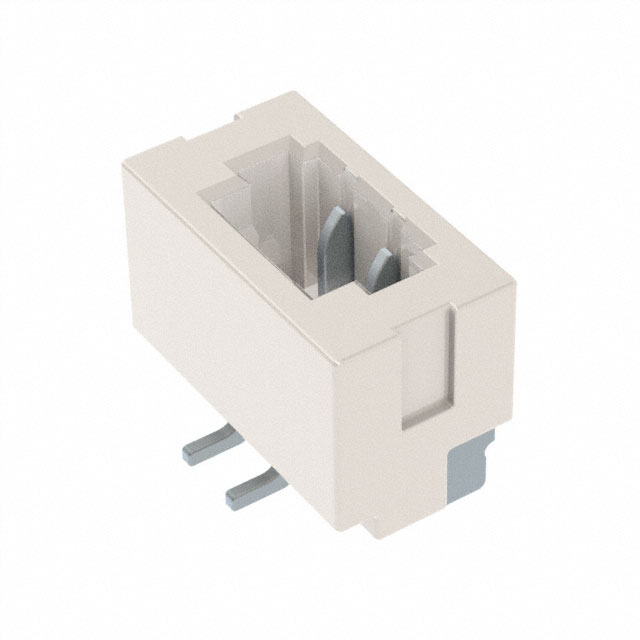

10144042-02011LF - 10144042-02011LF

10144042-02011LF

Active
Amphenol ICC (FCI)

CONN HEADER SMD 2POS 0.8MM

Deep-Dive with AI

Search across all available documentation for this part.

Documentsminitek 0 80 productpresentation Other Related DocumentDatasheet+1
10144042-02011LF - 10144042-02011LF

10144042-02011LF

Active
Amphenol ICC (FCI)

CONN HEADER SMD 2POS 0.8MM

Deep-Dive with AI

Documentsminitek 0 80 productpresentation Other Related DocumentDatasheet+1

Technical Specifications

Parameters and characteristics for this part

Specification10144042-02011LF
Connector TypeHeader
Contact Finish - PostTin
Contact MaterialCopper Alloy
Contact ShapeRectangular
Contact TypeMale Pin
Fastening TypePush-Pull
FeaturesGlow Wire Compliant, Solder Retention, Pick and Place
Insulation ColorCream
Insulation Height [z]2.7 mm
Insulation Height [z]0.106 in
Insulation MaterialThermoplastic, Halogen Free
Material Flammability RatingUL94 V-0
Mounting TypeSurface Mount
Number of Positions2
Number of Positions LoadedAll
Number of Rows1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-25 °C
Pitch - Mating0.031 in
Pitch - Mating0.8 mm
ShroudingShrouded - 4 Wall
StyleBoard to Cable/Wire
TerminationSolder
Voltage Rating30 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.53
10$ 0.45
100$ 0.38
500$ 0.34
1000$ 0.33
Digi-Reel® 1$ 0.53
10$ 0.45
100$ 0.38
500$ 0.34
1000$ 0.33
Tape & Reel (TR) 2300$ 0.31
4600$ 0.29
6900$ 0.28
11500$ 0.27
16100$ 0.27
23000$ 0.26

Description

General part information

10144042 Series

Connector Header Surface Mount 2 position 0.031" (0.80mm)
