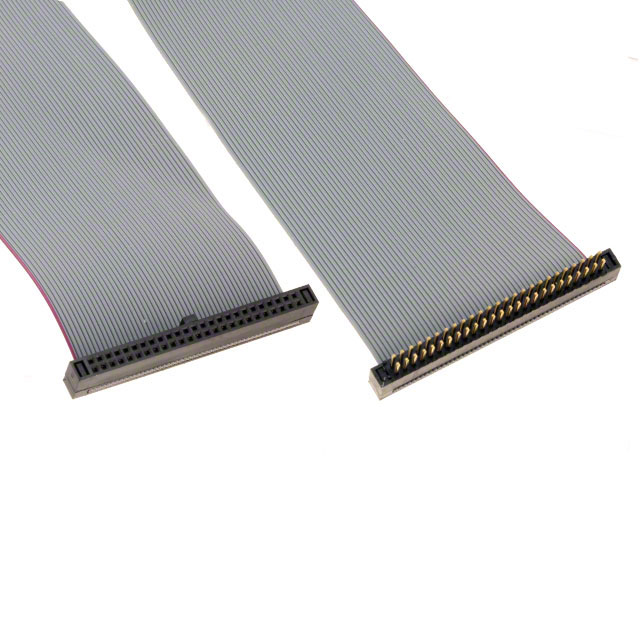

M50-9012542 - M50-9012542

M50-9012542

Active
Harwin Inc.

25+25 POS. MALE-FEMALE DIL CABLE ASSEMBLY, 150MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM50,M52 Series Spec SheetM50-3530842+2
M50-9012542 - M50-9012542

M50-9012542

Active
Harwin Inc.

25+25 POS. MALE-FEMALE DIL CABLE ASSEMBLY, 150MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM50,M52 Series Spec SheetM50-3530842+2

Technical Specifications

Parameters and characteristics for this part

SpecificationM50-9012542
Cable TerminationIDC
Connector TypeSocket to Plug
Contact FinishGold
Length150 mm
Length5.91 "
Length0.492 ft
Number of Positions50
Number of Rows2
Pitch - Cable0.64 mm
Pitch - Cable [x]0.025 in
Pitch - Connector0.05 in
Pitch - Connector1.27 mm
ShieldingUnshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 9.43
10$ 8.36
25$ 8.04
50$ 7.72
100$ 7.55
NewarkEach 50$ 11.96
100$ 11.66
250$ 10.45
500$ 9.85
1000$ 8.64
2500$ 8.22

Description

General part information

M50-901 Series

50 Position Cable Assembly Rectangular Socket to Plug 0.492' (150.00mm, 5.91")
