M50-9011342

Active

Harwin Inc.

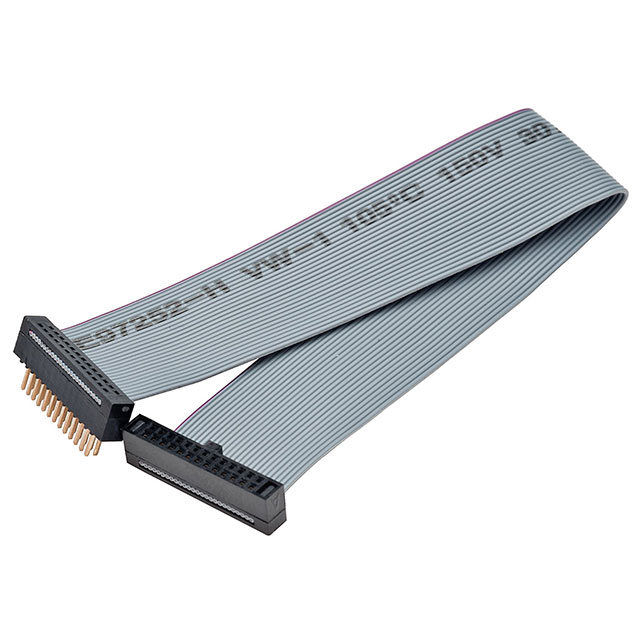

13+13 POS. MALE-FEMALE DIL CABLE ASSEMBLY, 150MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

13+13 POS. MALE-FEMALE DIL CABLE ASSEMBLY, 150MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Contact Finish	Length	Length	Length	Shielding	Pitch - Connector	Pitch - Connector	Connector Type	Cable Termination	Pitch - Cable [x]	Pitch - Cable	Number of Positions
Harwin Inc. M50-9011342	2	Gold	150 mm	5.91 "	0.492 ft	Unshielded	0.05 in	1.27 mm	Socket to Plug	IDC	0.025 in	0.64 mm	26
Harwin Inc. M50-9012542	2	Gold	150 mm	5.91 "	0.492 ft	Unshielded	0.05 in	1.27 mm	Socket to Plug	IDC	0.025 in	0.64 mm	50
Harwin Inc. M50-9011742	2	Gold	150 mm	5.91 "	0.492 ft	Unshielded	0.05 in	1.27 mm	Socket to Plug	IDC	0.025 in	0.64 mm	34

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

26 Position Cable Assembly Rectangular Socket to Plug 0.492' (150.00mm, 5.91")
