342-031-559-104

Active

EDAC Inc.

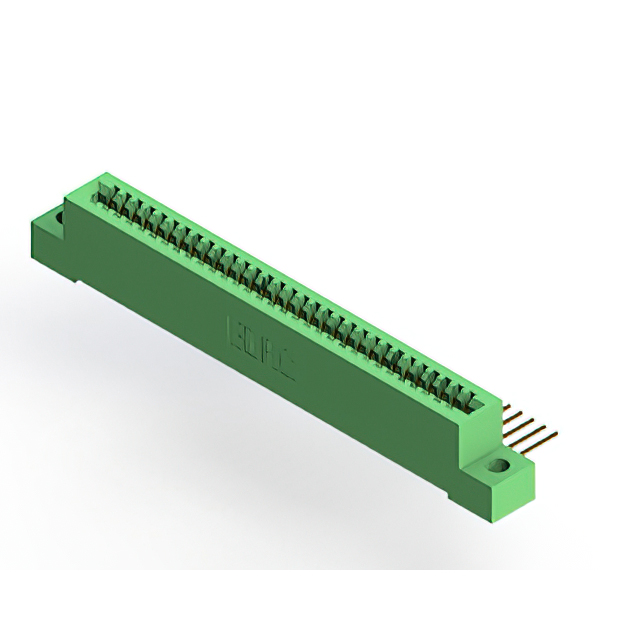

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

342-031-559-104

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 31 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	342-031-559-104

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.96 mm
Flange Feature [diameter]	0.156 in
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	31
Number of Positions/Bay/Row [custom]	31
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Wire Wrap, Solder
Termination Rows	1

342-031 Series

Part	Read Out	Pitch [x]	Pitch [x]	Number of Rows	Termination Rows	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Gender	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Contact Material	Material - Insulation	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Card Type	Number of Positions/Bay/Row [custom]	Color	Contact Type
EDAC Inc. 342-031-520-102	Single	2.54 mm	0.1 in	1	1	31	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Female	Through Hole	-40 °C	105 ░C	Gold	Copper Alloy	Polyester Thermoplastic	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Single Edge	31	Green	Cantilever
EDAC Inc. 342-031-521-112	Single	2.54 mm	0.1 in	1	1	31	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Female	Through Hole	-40 °C	105 ░C	Gold	Copper Alloy	Polyester Thermoplastic	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Single Edge	31	Green	Cantilever
EDAC Inc. 342-031-523-108	Single	2.54 mm	0.1 in	1	1	31			4-40 Flush Mount Threaded Insert Top Opening	Female	Through Hole	-40 °C	105 ░C	Gold	Copper Alloy	Polyester Thermoplastic	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Single Edge	31	Green	Cantilever
EDAC Inc. 342-031-542-108	Single	2.54 mm	0.1 in	1	1	31			4-40 Flush Mount Threaded Insert Top Opening	Female	Through Hole	-40 °C	105 ░C	Gold	Copper Alloy	Polyester Thermoplastic	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Single Edge	31	Green	Cantilever
EDAC Inc. 342-031-559-104	Single	2.54 mm	0.1 in	1	1	31	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Female	Through Hole Right Angle	-40 °C	105 ░C	Gold	Copper Alloy	Polyester Thermoplastic	Solder Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Single Edge	31	Green	Cantilever
EDAC Inc. 342-031-559-103	Single	2.54 mm	0.1 in	1	1	31	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Female	Through Hole Right Angle	-40 °C	105 ░C	Gold	Copper Alloy	Polyester Thermoplastic	Solder Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Single Edge	31	Green	Cantilever
EDAC Inc. 342-031-541-112	Single	2.54 mm	0.1 in	1	1	31	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Female	Through Hole	-40 °C	105 ░C	Gold	Copper Alloy	Polyester Thermoplastic	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Single Edge	31	Green	Cantilever
EDAC Inc. 342-031-500-108	Single	2.54 mm	0.1 in	1	1	31			4-40 Flush Mount Threaded Insert Top Opening	Female	Through Hole	-40 °C	105 ░C	Gold	Copper Alloy	Polyester Thermoplastic	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Single Edge	31	Green	Cantilever
EDAC Inc. 342-031-500-104	Single	2.54 mm	0.1 in	1	1	31	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Female	Through Hole	-40 °C	105 ░C	Gold	Copper Alloy	Polyester Thermoplastic	Solder Eyelet(s)	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Single Edge	31	Green	Cantilever
EDAC Inc. 342-031-542-112	Single	2.54 mm	0.1 in	1	1	31	3.25 mm	0.128 "	Flush Mount Side Opening Unthreaded	Female	Through Hole	-40 °C	105 ░C	Gold	Copper Alloy	Polyester Thermoplastic	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	10 Áin	0.25 Ám	Non Specified - Single Edge	31	Green	Cantilever

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 17.54
Newark	Each	1	$ 19.60
		100	$ 15.78
		250	$ 14.51
		500	$ 13.26
		1000	$ 11.06

Description

General part information

342-031 Series

31 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
