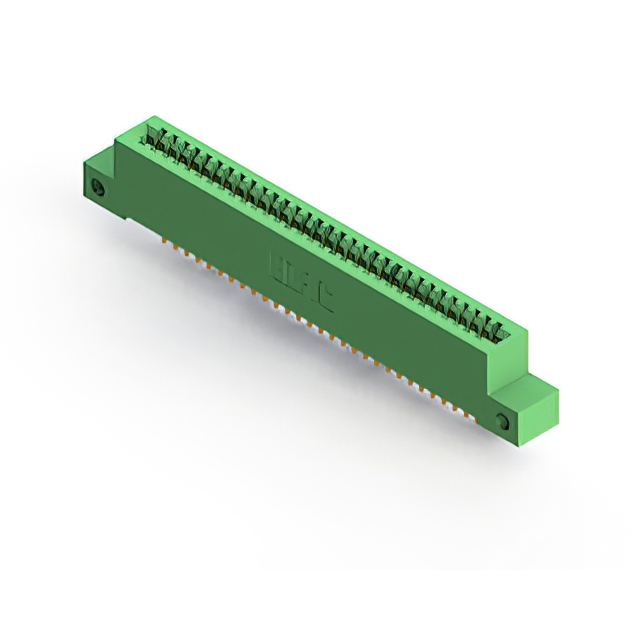

342-031-541-112
ActiveEDAC Inc.
CONN EDGE SINGLE FML 31POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
342-031-541-112
ActiveEDAC Inc.
CONN EDGE SINGLE FML 31POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 342-031-541-112 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Unthreaded, Flush Mount, Side Opening |
| Flange Feature [diameter] | 3.25 mm |
| Flange Feature [diameter] | 0.128 " |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 31 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
342-031 Series
| Part | Read Out | Pitch [x] | Pitch [x] | Number of Rows | Termination Rows | Number of Positions | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Gender | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Material | Material - Insulation | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Card Type | Number of Positions/Bay/Row [custom] | Color | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1 | 31 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Female | Through Hole | -40 °C | 105 ░C | Gold | Copper Alloy | Polyester Thermoplastic | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 31 | Green | Cantilever |
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1 | 31 | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Female | Through Hole | -40 °C | 105 ░C | Gold | Copper Alloy | Polyester Thermoplastic | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 31 | Green | Cantilever |
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1 | 31 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Through Hole | -40 °C | 105 ░C | Gold | Copper Alloy | Polyester Thermoplastic | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 31 | Green | Cantilever | ||
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1 | 31 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Through Hole | -40 °C | 105 ░C | Gold | Copper Alloy | Polyester Thermoplastic | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 31 | Green | Cantilever | ||
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1 | 31 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Female | Through Hole Right Angle | -40 °C | 105 ░C | Gold | Copper Alloy | Polyester Thermoplastic | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 31 | Green | Cantilever |
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1 | 31 | 2.95 mm | 0.116 in | Floating Bobbin Flush Mount | Female | Through Hole Right Angle | -40 °C | 105 ░C | Gold | Copper Alloy | Polyester Thermoplastic | Solder Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 31 | Green | Cantilever |
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1 | 31 | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Female | Through Hole | -40 °C | 105 ░C | Gold | Copper Alloy | Polyester Thermoplastic | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 31 | Green | Cantilever |
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1 | 31 | 4-40 Flush Mount Threaded Insert Top Opening | Female | Through Hole | -40 °C | 105 ░C | Gold | Copper Alloy | Polyester Thermoplastic | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 31 | Green | Cantilever | ||
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1 | 31 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Female | Through Hole | -40 °C | 105 ░C | Gold | Copper Alloy | Polyester Thermoplastic | Solder Eyelet(s) | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 31 | Green | Cantilever |
EDAC Inc. | Single | 2.54 mm | 0.1 in | 1 | 1 | 31 | 3.25 mm | 0.128 " | Flush Mount Side Opening Unthreaded | Female | Through Hole | -40 °C | 105 ░C | Gold | Copper Alloy | Polyester Thermoplastic | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | Non Specified - Single Edge | 31 | Green | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 16.76 | |
Description
General part information
342-031 Series
31 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
