TE Connectivity Raychem Cable Protection

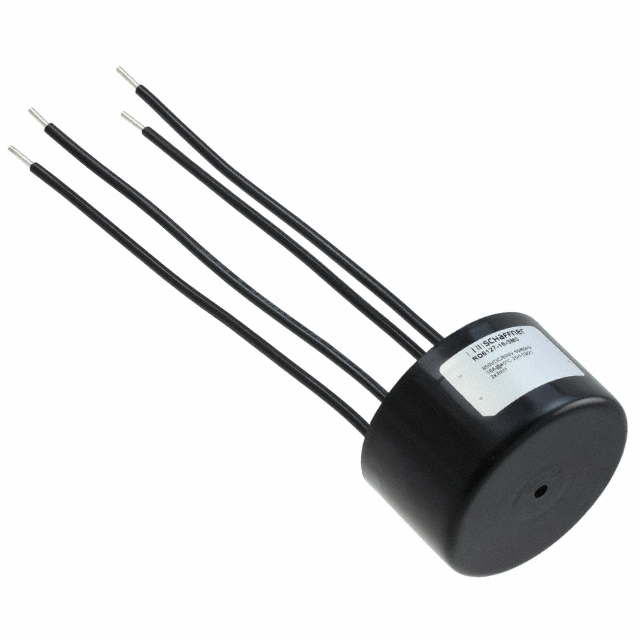

CMC 3MH 16A 2LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 3MH 16A 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Inductance @ Frequency	Voltage Rating - DC	DC Resistance (DCR) (Max)	Mounting Type	Package / Case	Package / Case	Number of Lines	Filter Type	Height (Max)	Height (Max)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current Rating (Max)	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Raychem Cable Protection RD6127-10-9M0	600 V	9 mH 400 Hz	850 V	25.9 mOhm	Through Hole	Horizontal	4 Lead	2	Power Line	1.398 in	35.5 mm	60 mm	2.362 in	2.362 in	60 mm	10 A	-25 °C	110 °C
TE Connectivity Raychem Cable Protection RD6127-16-3M0	600 V	3 mH	850 V		Through Hole	Horizontal	4 Lead	2	Power Line	1.398 in	35.5 mm	60 mm	2.362 in	2.362 in	60 mm	16 A	-25 °C	110 °C
TE Connectivity Raychem Cable Protection RD6127-16-3M0	600 V	3 mH	850 V		Through Hole	Horizontal	4 Lead	2	Power Line	1.398 in	35.5 mm	60 mm	2.362 in	2.362 in	60 mm	16 A	-25 °C	110 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 mH @ 1 kHz 2 Line Common Mode Choke Through Hole 16A (Typ) DCR 10.9mOhm (Typ)
