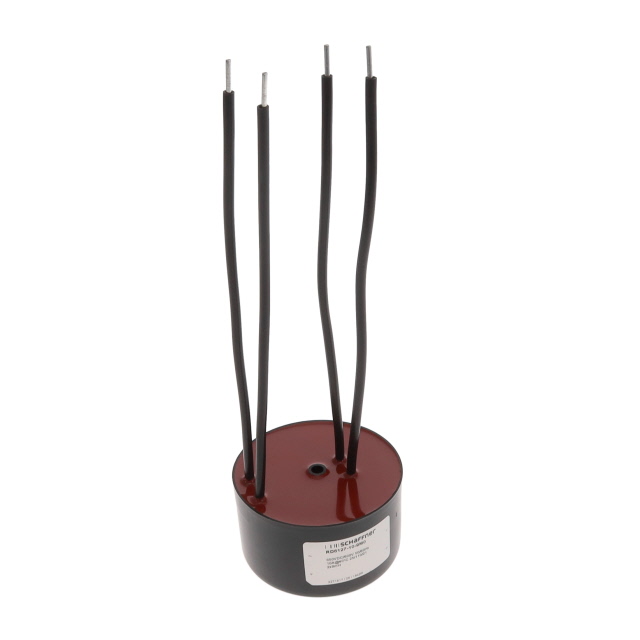

RD6127-10-9M0
ActiveTE Connectivity Raychem Cable Protection
CMC 9MH 10A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RD6127-10-9M0
ActiveTE Connectivity Raychem Cable Protection
CMC 9MH 10A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RD6127-10-9M0 |
|---|---|
| Current Rating (Max) | 10 A |
| DC Resistance (DCR) (Max) | 25.9 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.398 in |
| Height (Max) | 35.5 mm |
| Inductance @ Frequency | 400 Hz, 9 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | Horizontal |
| Package / Case | 4 Lead |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [x] | 2.362 in |
| Size / Dimension [y] | 2.362 in |
| Size / Dimension [y] | 60 mm |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 850 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 15.77 | |
Description
General part information
RD6127 Series
9 mH @ 400 Hz 2 Line Common Mode Choke Through Hole 10A (Typ) DCR 25.9mOhm (Typ)
