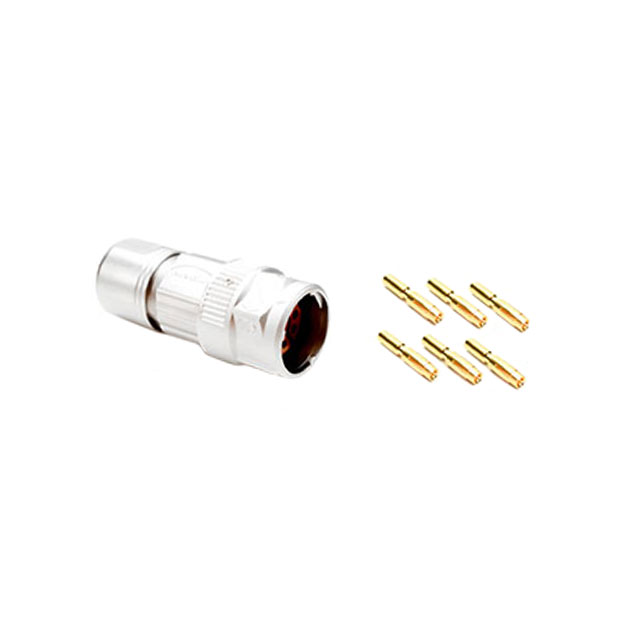

MB5CKN0600-S2-KIT

Active

Amphenol Sine Systems Corp

CONN PLUG FMALE 6POS GOLD CRIMP

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CONN PLUG FMALE 6POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Number of Positions	Contact Type	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Note	Orientation	Fastening Type	Contact Size	Connector Type	Type	Shell Finish	Features	Shell Size - Insert	Shell Material	Insert Material	Mounting Type	Contact Shape	Shielding	Material Flammability Rating	Current Rating (Amps)	Color	Primary Material	Voltage Rating	Contact Finish - Mating	Termination
Amphenol Sine Systems Corp MB5CKN0600-S2	6	Crimp	IP67 - Dust Tight Waterproof	-20 C	130 °C	Silver	Contacts Not Included	Keyed	Push-Twist	2 mm	Plug Housing	For Female Sockets	Nickel	Backshell Coupling Nut	M23-6	Zinc Die Cast	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Circular	Shielded	UL94 V-0
Amphenol Sine Systems Corp MB5CKN0600-S3-KIT	6		IP67 - Dust Tight Waterproof	-20 C	130 °C			Keyed	Push-Twist		Female Sockets Plug		Nickel	Backshell Coupling Nut	M23-6	Zinc Die Cast		Free Hanging (In-Line)		Shielded		28 A	Silver	Metal	630 VAC/DC	Gold	Crimp
Amphenol Sine Systems Corp MB5CKN0600-S3	6	Crimp	IP67 - Dust Tight Waterproof	-20 C	130 °C	Silver	Contacts Not Included	Keyed	Push-Twist	2 mm	Plug Housing	For Female Sockets	Nickel	Backshell Coupling Nut	M23-6	Zinc Die Cast	Polyamide (PA66) Nylon 6/6	Free Hanging (In-Line)	Circular	Shielded	UL94 V-0
Amphenol Sine Systems Corp MB5CKN0600-S2-KIT	6		IP67 - Dust Tight Waterproof	-20 C	130 °C			Keyed	Push-Twist		Female Sockets Plug		Nickel	Backshell Coupling Nut	M23-6	Zinc Die Cast		Free Hanging (In-Line)		Shielded		28 A	Silver	Metal	630 VAC/DC	Gold	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 (5 Power + PE) Position Circular Connector Plug, Female Sockets Crimp
