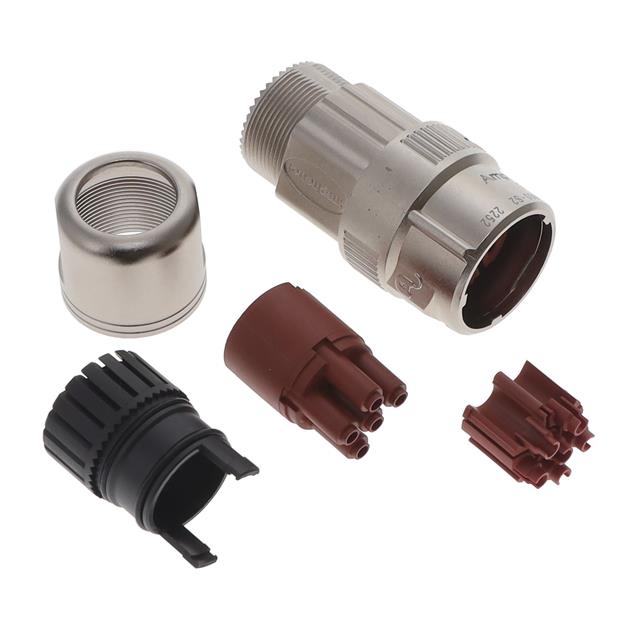

MB5CKN0600-S2
ActiveAmphenol Sine Systems Corp
CONN PLUG HSNG FMALE 6POS INLINE
Deep-Dive with AI
Search across all available documentation for this part.
MB5CKN0600-S2
ActiveAmphenol Sine Systems Corp
CONN PLUG HSNG FMALE 6POS INLINE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MB5CKN0600-S2 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 2 mm |
| Contact Type | Crimp |
| Fastening Type | Push-Twist |
| Features | Coupling Nut, Backshell |
| Housing Color | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | M23-6 |
| Shielding | Shielded |
| Type | For Female Sockets |
MB5CKN0600 Series
| Part | Number of Positions | Contact Type | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Note | Orientation | Fastening Type | Contact Size | Connector Type | Type | Shell Finish | Features | Shell Size - Insert | Shell Material | Insert Material | Mounting Type | Contact Shape | Shielding | Material Flammability Rating | Current Rating (Amps) | Color | Primary Material | Voltage Rating | Contact Finish - Mating | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Sine Systems Corp | 6 | Crimp | IP67 - Dust Tight Waterproof | -20 C | 130 °C | Silver | Contacts Not Included | Keyed | Push-Twist | 2 mm | Plug Housing | For Female Sockets | Nickel | Backshell Coupling Nut | M23-6 | Zinc Die Cast | Polyamide (PA66) Nylon 6/6 | Free Hanging (In-Line) | Circular | Shielded | UL94 V-0 | ||||||
Amphenol Sine Systems Corp | 6 | IP67 - Dust Tight Waterproof | -20 C | 130 °C | Keyed | Push-Twist | Female Sockets Plug | Nickel | Backshell Coupling Nut | M23-6 | Zinc Die Cast | Free Hanging (In-Line) | Shielded | 28 A | Silver | Metal | 630 VAC/DC | Gold | Crimp | ||||||||
Amphenol Sine Systems Corp | 6 | Crimp | IP67 - Dust Tight Waterproof | -20 C | 130 °C | Silver | Contacts Not Included | Keyed | Push-Twist | 2 mm | Plug Housing | For Female Sockets | Nickel | Backshell Coupling Nut | M23-6 | Zinc Die Cast | Polyamide (PA66) Nylon 6/6 | Free Hanging (In-Line) | Circular | Shielded | UL94 V-0 | ||||||
Amphenol Sine Systems Corp | 6 | IP67 - Dust Tight Waterproof | -20 C | 130 °C | Keyed | Push-Twist | Female Sockets Plug | Nickel | Backshell Coupling Nut | M23-6 | Zinc Die Cast | Free Hanging (In-Line) | Shielded | 28 A | Silver | Metal | 630 VAC/DC | Gold | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 16.98 | |
| 10 | $ 16.16 | |||
Description
General part information
MB5CKN0600 Series
6 (5 Power + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Coupling Nut
