MGS-1-01

Active

Essentra Access Solutions

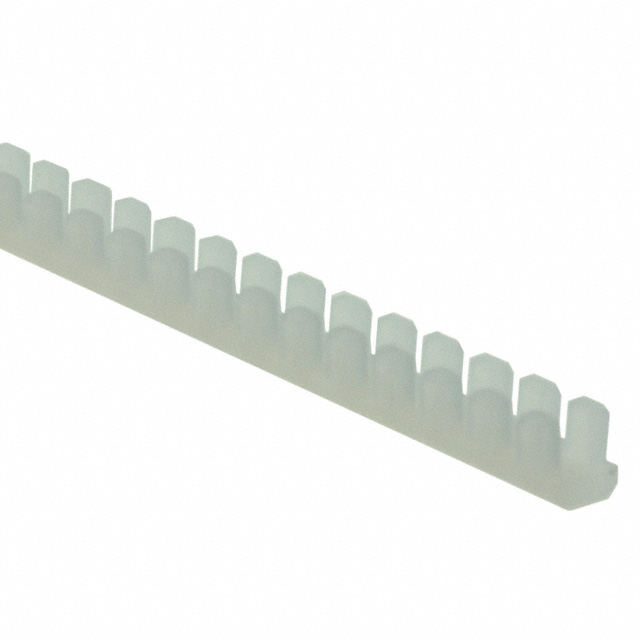

GROMMET, SLOTTED EDGING, NYLON 6.6 (POLYAMIDE 6.6), 0.052 "

Search across all available documentation for this part.

Active

Essentra Access Solutions

GROMMET, SLOTTED EDGING, NYLON 6.6 (POLYAMIDE 6.6), 0.052 "

Technical Specifications

Parameters and characteristics for this part

Specification	MGS-1-01

Bushing, Grommet Type	Grommet - Edging, Slotted
Color	Natural
For Use With/Related Products	Irregular Holes, Edges
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Panel Cutout Dimensions [x]	0.32 m
Panel Cutout Dimensions [x]	1.062 ft
Panel Thickness [Max]	0.052 "
Panel Thickness [Max]	1.32 mm
Panel Thickness [Min]	0.38 mm
Panel Thickness [Min]	0.015 in

Part	Material	Bushing, Grommet Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Material Flammability Rating	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	For Use With/Related Products	Color
Essentra Access Solutions MGS-3-01	Polyamide (PA66) Nylon 6/6	Grommet - Edging Slotted	0.32 m	1.062 ft	UL94 V-2	3.25 mm	0.085 "	0.128 "	2.16 mm	Edges Irregular Holes	Natural
Essentra Access Solutions MGS-1-01	Polyamide (PA66) Nylon 6/6	Grommet - Edging Slotted	0.32 m	1.062 ft	UL94 V-2	1.32 mm	0.015 in	0.052 "	0.38 mm	Edges Irregular Holes	Natural
Essentra Access Solutions MGS-2-01	Polyamide (PA66) Nylon 6/6	Grommet - Edging Slotted	0.32 m	1.062 ft	UL94 V-2	2.16 mm	0.052 "	0.085 "	1.32 mm	Edges Irregular Holes	Natural

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Edging - 1.062' L (0.32m) Grommet - Edging, Slotted Natural
