MGS-3-01
ActiveEssentra Access Solutions

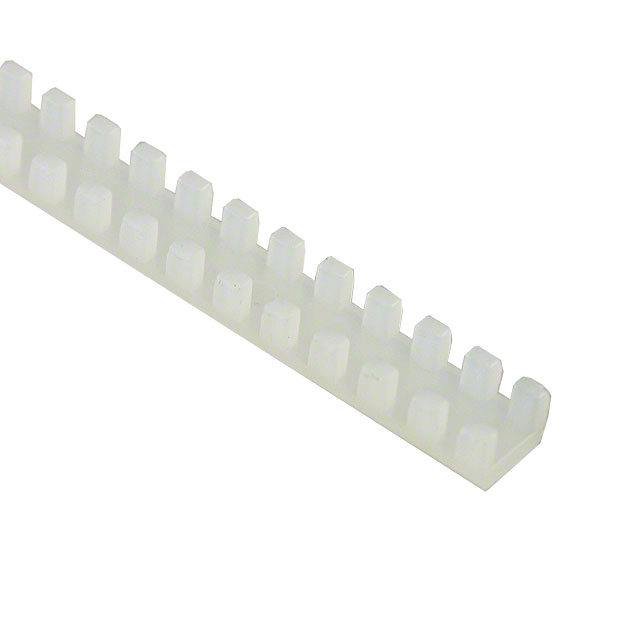

GROMMET EDGE SLOT NYLON NATURAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MGS-3-01
ActiveEssentra Access Solutions
GROMMET EDGE SLOT NYLON NATURAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MGS-3-01 |
|---|---|
| Bushing, Grommet Type | Grommet - Edging, Slotted |
| Color | Natural |
| For Use With/Related Products | Irregular Holes, Edges |
| Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-2 |
| Panel Cutout Dimensions [x] | 0.32 m |
| Panel Cutout Dimensions [x] | 1.062 ft |
| Panel Thickness [Max] | 3.25 mm |
| Panel Thickness [Max] | 0.128 " |
| Panel Thickness [Min] | 0.085 " |
| Panel Thickness [Min] | 2.16 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.75 | |
| 10 | $ 0.57 | |||
| 25 | $ 0.51 | |||
| 50 | $ 0.47 | |||
| 100 | $ 0.44 | |||
| 250 | $ 0.39 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.34 | |||
| 2500 | $ 0.31 | |||
Description
General part information
MGS Series
Edging - 1.062' L (0.32m) Grommet - Edging, Slotted Natural
