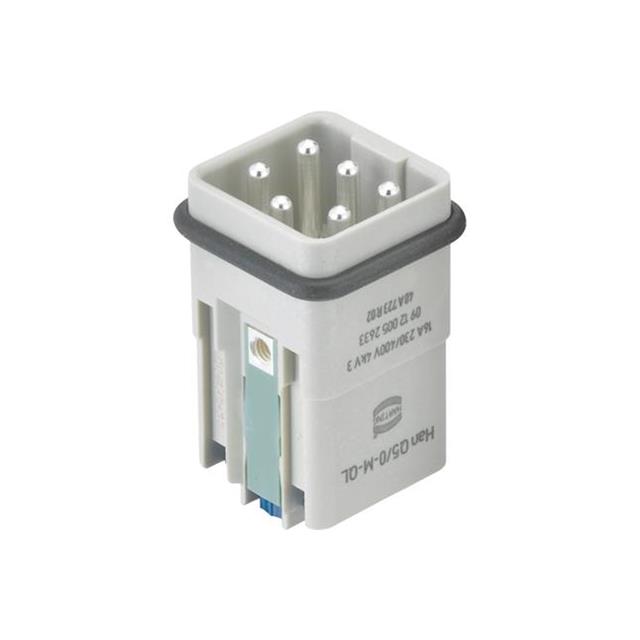

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 5+PE CONTACTS, 3A, PLUG, PUSH LOCK PIN

Search across all available documentation for this part.

Active

HARTING

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 5+PE CONTACTS, 3A, PLUG, PUSH LOCK PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	09120052634	09120052 Series

Color	Gray	Gray
Contact Finish	Silver	Silver
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	16 A	16 A
Gender	Male	Male, Female
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	3 A	3 A
Termination Style	Push In with Lock	Push In with Lock
Voltage Rating	600 V	600 V

HEAVY DUTY CONNECTOR, HAN Q SERIES, INSERT, 5+PE CONTACTS, 3A, PLUG, PUSH LOCK PIN

Part	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Finish	Voltage Rating	Gender	Color	Size	Housing Material	Contact Material	Termination Style
HARTING 09120052634	UL94 V-0	125 °C	-40 °C	16 A	Silver	600 V	Male	Gray	3 A	Polycarbonate (PC)	Copper Alloy	Push In with Lock
HARTING 09120052633	UL94 V-0	125 °C	-40 °C	16 A	Silver	600 V	Male	Gray	3 A	Polycarbonate (PC)	Copper Alloy	Push In with Lock
HARTING 09120052733	UL94 V-0	125 °C	-40 °C	16 A	Silver	600 V	Female	Gray	3 A	Polycarbonate (PC)	Copper Alloy	Push In with Lock
HARTING 09120052734	UL94 V-0	125 °C	-40 °C	16 A	Silver	600 V	Female	Gray	3 A	Polycarbonate (PC)	Copper Alloy	Push In with Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert Gray 5 Position Push In with Lock
