09120052734

Active

HARTING Technology Group

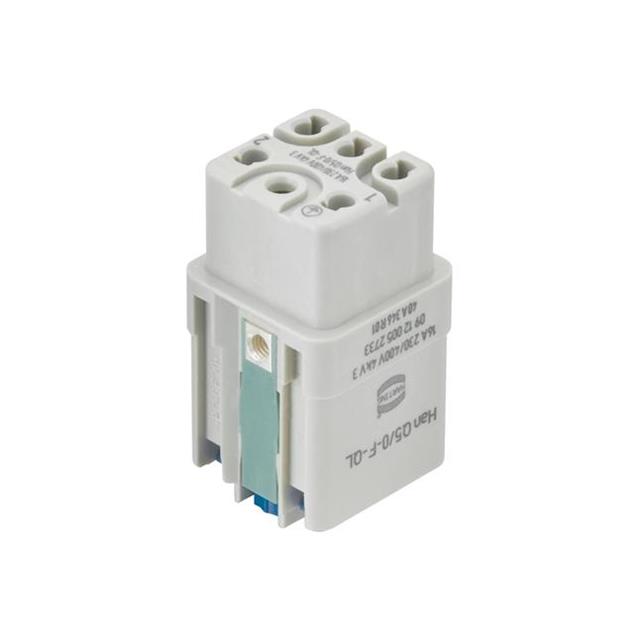

HEAVY DUTY INSERT, RCPT, 5POS, 1.5MM2

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY INSERT, RCPT, 5POS, 1.5MM2

Technical Specifications

Parameters and characteristics for this part

Specification	09120052734

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	16 A
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	Push In with Lock
Voltage Rating	600 V

Part	Size	Color	Contact Finish	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Housing Material	Gender	Contact Material	Material Flammability Rating	Current Rating (Amps)
HARTING Technology Group 09120052733	3 A	Gray	Silver	600 V	125 °C	-40 °C	Push In with Lock	Polycarbonate (PC)	Female	Copper Alloy	UL94 V-0	16 A
HARTING Technology Group 09120052633	3 A	Gray	Silver	600 V	125 °C	-40 °C	Push In with Lock	Polycarbonate (PC)	Male	Copper Alloy	UL94 V-0	16 A
HARTING Technology Group 09120052734	3 A	Gray	Silver	600 V	125 °C	-40 °C	Push In with Lock	Polycarbonate (PC)	Female	Copper Alloy	UL94 V-0	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 5 Position Push In with Lock
