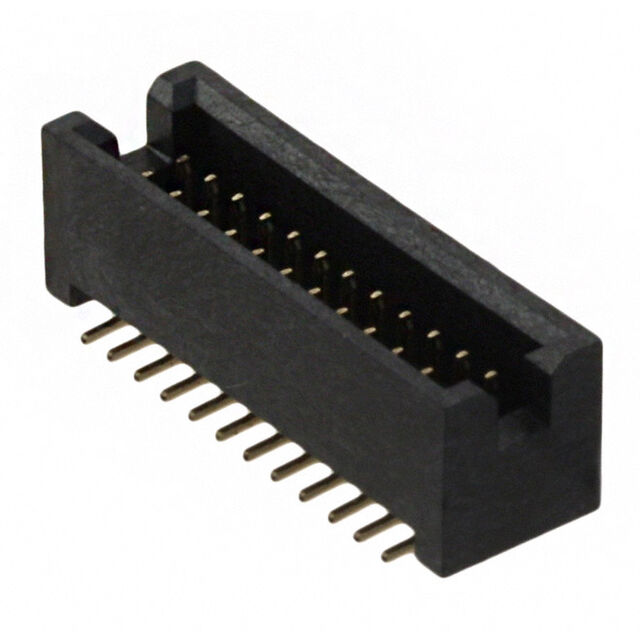

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 24 CONTACTS, SURFACE MOUNT, ARCHER M50 SERIES

Search across all available documentation for this part.

Active

Harwin Inc.

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 24 CONTACTS, SURFACE MOUNT, ARCHER M50 SERIES

Technical Specifications

Parameters and characteristics for this part

Specification	M50-4901245

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.69 mm
Insulation Height	0.224 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

Part	Mounting Type	Contact Finish - Mating	Contact Shape	Contact Type	Material Flammability Rating	Number of Rows	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Connector Type	Shrouding	Number of Positions Loaded	Insulation Color	Insulation Height	Insulation Height	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Post	Insulation Material	Fastening Type	Contact Material
Harwin Inc. M50-4900745	Surface Mount	Gold	Square	Male Pin	UL94 V-0	2	1 A	0.05 in	1.27 mm	Header	Shrouded - 4 Wall	All	Black	5.69 mm	0.224 in	Solder	-40 °C	105 ░C	14	0.05 in	1.27 mm	Gold	Liquid Crystal Polymer (LCP)	Push-Pull	Copper Alloy
Harwin Inc. M50-4902045	Surface Mount	Gold	Square	Male Pin	UL94 V-0	2	1 A	0.05 in	1.27 mm	Header	Shrouded - 4 Wall	All	Black	5.69 mm	0.224 in	Solder	-40 °C	105 ░C	40	0.05 in	1.27 mm	Gold	Liquid Crystal Polymer (LCP)	Push-Pull	Copper Alloy
Harwin Inc. M50-4901245	Surface Mount	Gold	Square	Male Pin	UL94 V-0	2	1 A	0.05 in	1.27 mm	Header	Shrouded - 4 Wall	All	Black	5.69 mm	0.224 in	Solder	-40 °C	105 ░C	24	0.05 in	1.27 mm	Gold	Liquid Crystal Polymer (LCP)	Push-Pull	Copper Alloy
