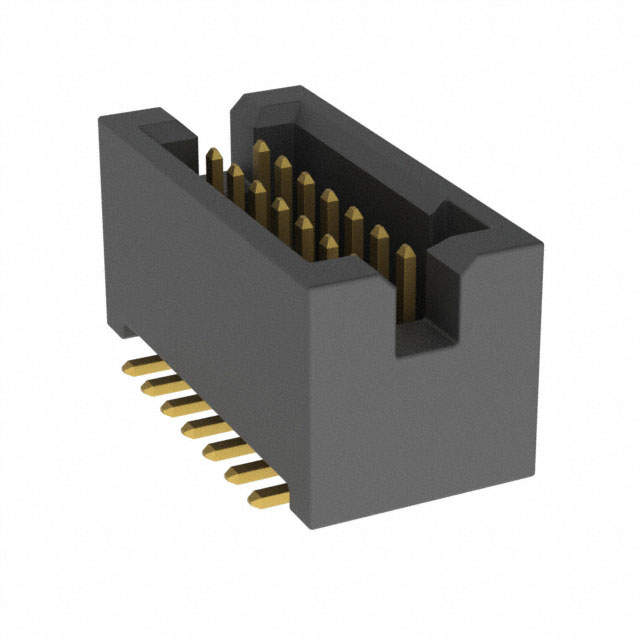

Specification	M50-4900745

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Per Contact)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.224 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.05 in
Row Spacing - Mating	0.05 in
Shrouding	Shrouded - 4 Wall
Style	Board
Termination	Solder

M50-490 Series

Part	Contact Type	Number of Positions Loaded	Fastening Type	Number of Positions	Contact Shape	Insulation Material	Termination	Contact Material	Shrouding	Pitch - Mating	Insulation Color	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Post	Connector Type	Insulation Height	Number of Rows	Current Rating (Per Contact)	Style	Row Spacing - Mating	Material Flammability Rating	Mounting Type	Contact Finish - Mating
Harwin Inc. M50-4900745	Male Pin	All	Push-Pull	14	Square	Liquid Crystal Polymer (LCP)	Solder	Copper Alloy	Shrouded - 4 Wall	0.05 in	Black	-40 °C	105 °C	Gold	Header	0.224 in	2	1 A	Board	0.05 in	UL94 V-0	Surface Mount	Gold
Harwin Inc. M50-4900545	Male Pin	All	Push-Pull	10	Square	Liquid Crystal Polymer (LCP)	Solder	Copper Alloy	Shrouded - 4 Wall	0.05 in	Black	-40 °C	105 °C	Gold	Header	0.224 in	2	1 A	Board	0.05 in	UL94 V-0	Surface Mount	Gold
Harwin Inc. M50-4901245	Male Pin	All	Push-Pull	24 pos	Square	Liquid Crystal Polymer (LCP)	Solder	Copper Alloy	Shrouded - 4 Wall	0.05 in	Black	-40 °C	105 °C	Gold	Header	0.224 in	2	1 A	Board	0.05 in	UL94 V-0	Surface Mount	Gold
