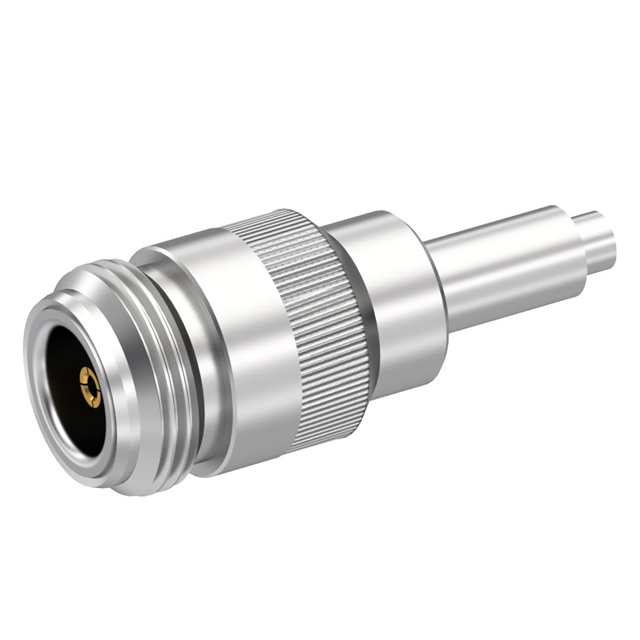

R161236000

Active

Radiall USA, Inc.

N / STRAIGHT JACK FULL CRIMP-TYP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N / STRAIGHT JACK FULL CRIMP-TYP

Technical Specifications

Parameters and characteristics for this part

Specification	R161236000

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-188, 316, 316 Double Braid
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Number of Ports	Contact Termination	Body Finish	Mating Cycles	Body Material	Ingress Protection	Voltage Rating	Connector Style	Impedance	Center Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Dielectric Material	Insertion Loss	Housing Color	Frequency - Max [Max]	Center Contact Plating	Shield Termination	Cable Group	Cable Group
Radiall USA, Inc. R161237000W	1	Crimp	White Bronze	500	Brass	IP67 - Dust Tight Waterproof	850 V	N Type	50 Ohms	Beryllium Copper	Female Socket Jack	155 °C	-55 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	0.15 dB	Silver	11 GHz	Gold	Crimp	141	RG-58
Radiall USA, Inc. R161237000	1	Crimp	White Bronze	500	Brass	IP67 - Dust Tight Waterproof	850 V	N Type	50 Ohms	Beryllium Copper	Female Socket Jack	155 °C	-55 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	0.15 dB	Silver	11 GHz	Gold	Crimp	141	RG-58
Radiall USA, Inc. R161238000	1	Crimp	White Bronze	500	Brass	IP67 - Dust Tight Waterproof	850 V	N Type	50 Ohms	Beryllium Copper	Female Socket Jack	155 °C	-55 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	0.15 dB	Silver	11 GHz	Gold	Crimp		223 400 RG-142
Radiall USA, Inc. R161236000	1	Crimp	White Bronze	500	Brass	IP67 - Dust Tight Waterproof	250 VDC	N Type	50 Ohms	Beryllium Copper	Female Socket Jack	155 °C	-55 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	0.15 dB	Silver	11 GHz	Gold	Crimp		316 316 Double Braid RG-188

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 25.65

General part information

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
