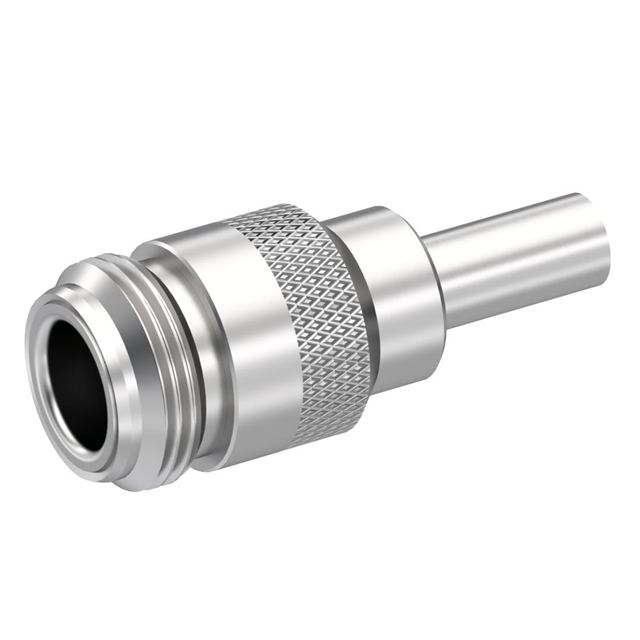

R161238000

Active

Radiall USA, Inc.

N / STRAIGHT JACK FULL CRIMP-TYP

Search across all available documentation for this part.

Active

Radiall USA, Inc.

N / STRAIGHT JACK FULL CRIMP-TYP

Technical Specifications

Parameters and characteristics for this part

Specification	R161238000

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-142, 400, 223
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	850 V

Part	Number of Ports	Contact Termination	Body Finish	Mating Cycles	Body Material	Ingress Protection	Voltage Rating	Connector Style	Impedance	Center Contact Material	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Dielectric Material	Insertion Loss	Housing Color	Frequency - Max [Max]	Center Contact Plating	Shield Termination	Cable Group	Cable Group
Radiall USA, Inc. R161237000W	1	Crimp	White Bronze	500	Brass	IP67 - Dust Tight Waterproof	850 V	N Type	50 Ohms	Beryllium Copper	Female Socket Jack	155 °C	-55 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	0.15 dB	Silver	11 GHz	Gold	Crimp	141	RG-58
Radiall USA, Inc. R161237000	1	Crimp	White Bronze	500	Brass	IP67 - Dust Tight Waterproof	850 V	N Type	50 Ohms	Beryllium Copper	Female Socket Jack	155 °C	-55 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	0.15 dB	Silver	11 GHz	Gold	Crimp	141	RG-58
Radiall USA, Inc. R161238000	1	Crimp	White Bronze	500	Brass	IP67 - Dust Tight Waterproof	850 V	N Type	50 Ohms	Beryllium Copper	Female Socket Jack	155 °C	-55 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	0.15 dB	Silver	11 GHz	Gold	Crimp		223 400 RG-142
Radiall USA, Inc. R161236000	1	Crimp	White Bronze	500	Brass	IP67 - Dust Tight Waterproof	250 VDC	N Type	50 Ohms	Beryllium Copper	Female Socket Jack	155 °C	-55 °C	Free Hanging (In-Line)	Polytetrafluoroethylene (PTFE)	0.15 dB	Silver	11 GHz	Gold	Crimp		316 316 Double Braid RG-188

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 23.42

General part information

N Type Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
