MM70-314B1-2-R300
ActiveJAE Electronics

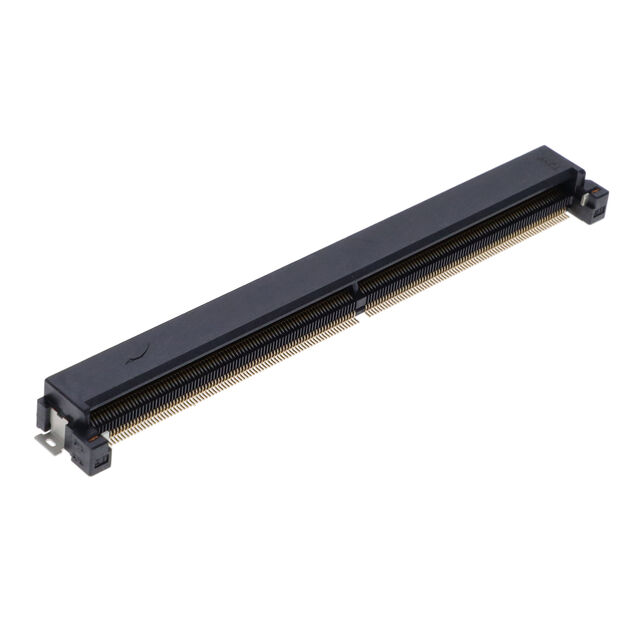

CARD EDGE CONNECTOR, 314 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.02 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR, SOCKET,
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MM70-314B1-2-R300
ActiveJAE Electronics
CARD EDGE CONNECTOR, 314 CONTACT(S), 2 ROW(S), FEMALE, RIGHT ANGLE, 0.02 INCH PITCH, SURFACE MOUNT TERMINAL, LOCKING, BLACK INSULATOR, SOCKET,
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MM70-314B1-2-R300 |
|---|---|
| Card Thickness | 1.2 mm |
| Card Thickness | 0.047 in |
| Card Type | MXM 3.0 |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.3 Ám |
| Contact Finish Thickness | 11.8 Áin |
| Contact Material | Copper Alloy |
| Features | Latches, Board Guide |
| Gender | Female |
| Material - Insulation | Thermoplastic |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 314 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.5 mm |
| Pitch [x] | 0.02 in |
| Read Out | Dual |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 9.36 | |
| 10 | $ 8.43 | |||
| 25 | $ 7.94 | |||
| 50 | $ 7.73 | |||
| 100 | $ 7.53 | |||
| Tape & Reel (TR) | 300 | $ 6.72 | ||
| 600 | $ 6.31 | |||
| 900 | $ 5.90 | |||
| 1500 | $ 5.41 | |||
Description
General part information
MM70-314 Series
314 Position Female Connector MXM 3.0 Gold 0.020" (0.50mm) Black
