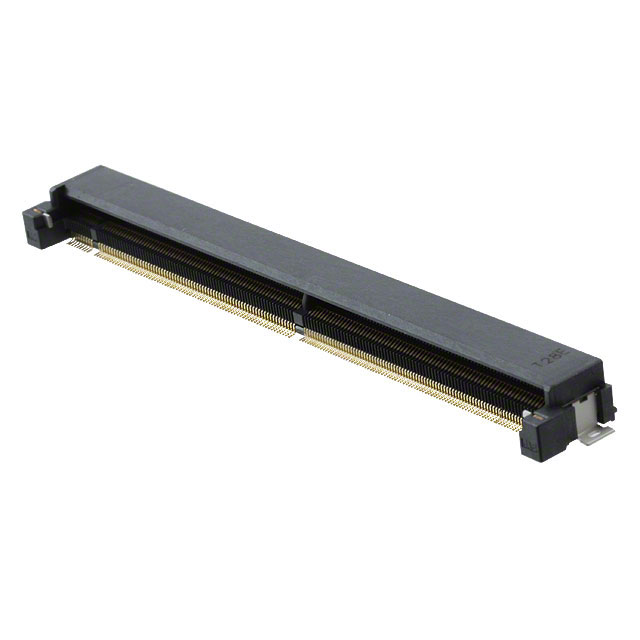

MM70-314-310B1-2-R300

Active

JAE Electronics

CONN MXM 3.0 FMALE 314POS 0.020

Search across all available documentation for this part.

Active

JAE Electronics

CONN MXM 3.0 FMALE 314POS 0.020

Technical Specifications

Parameters and characteristics for this part

Specification	MM70-314-310B1-2-R300

Card Thickness	1.2 mm
Card Thickness	0.047 in
Card Type	MXM 3.0
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Material	Copper Alloy
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type	Surface Mount, Right Angle
Number of Positions	314
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Read Out	Dual
Termination	Solder

Part	Gender	Number of Rows	Color	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Termination	Card Thickness	Card Thickness	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Material - Insulation	Contact Finish	Contact Material	Card Type	Read Out	Features
JAE Electronics MM70-314-310B1-2-R300	Female	2	Black	0.5 mm	0.02 in	0.3 Ám	11.8 Áin	Surface Mount Right Angle	Solder	1.2 mm	0.047 in	314	85 °C	-40 °C	Liquid Crystal Polymer (LCP) Glass Filled	Gold	Copper Alloy	MXM 3.0	Dual
JAE Electronics MM70-314B1-2-R300	Female	2	Black	0.5 mm	0.02 in	0.3 Ám	11.8 Áin	Surface Mount Right Angle	Solder	1.2 mm	0.047 in	314	85 °C	-40 °C	Thermoplastic	Gold	Copper Alloy	MXM 3.0	Dual	Board Guide Latches
