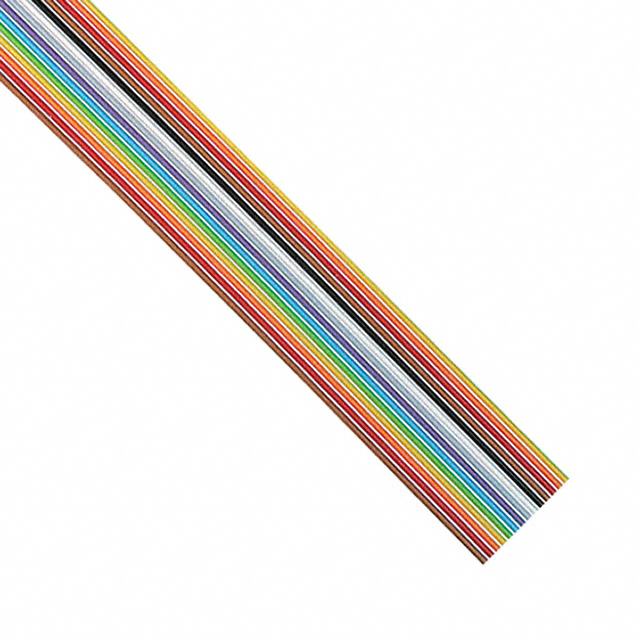

C3302/15 100
Active3M (TC)
CBL RIBN 15COND 0.05 MULT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C3302/15 100
Active3M (TC)
CBL RIBN 15COND 0.05 MULT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C3302/15 100 |
|---|---|
| Cable Type | Flat Cable |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 7 |
| Conductor Strand [custom] | 36 AWG |
| Features | Zippable |
| Insulation Resistance | 1 GOhms |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Multiple |
| Length [x] | 100 ft |
| Length [x] | 30.48 m |
| Number of Conductors | 15 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Ratings | UL Style 20462 |
| Ribbon Thickness | 0.042 in |
| Ribbon Thickness | 1.07 mm |
| Ribbon Width | 0.75 " |
| Ribbon Width | 19.05 mm |
| Shielding | Unshielded |
| Voltage | 300 V |
| Wire Gauge | 28 AWG |
C3302 Series
| Part | Number of Conductors | Insulation Resistance | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Pitch [x] | Pitch [x] | Features | Ratings | Ribbon Width | Ribbon Width | Wire Gauge | Shielding | Jacket (Insulation) Material | Length [x] | Length [x] | Jacket Color | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Ribbon Thickness | Ribbon Thickness | Voltage | Length | Length | Ribbon Width [custom] | Ribbon Width [custom] | Ribbon Width [y] | Ribbon Width [y] | Ribbon Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 9 | 1 GOhms | -20 C | 105 ░C | Flat Cable | 0.05 in | 1.27 mm | Zippable | UL Style 20462 | 11.43 mm | 0.45 in | 28 AWG | Unshielded | Poly-Vinyl Chloride (PVC) | 100 ft | 30.48 m | Multiple | Copper Tinned | 7 | 36 AWG | 0.042 in | 1.07 mm | 300 V | |||||||
3M (TC) | 10 | 1 GOhms | -20 C | 105 ░C | Flat Cable | 0.05 in | 1.27 mm | Zippable | UL Style 20462 | 28 AWG | Unshielded | Poly-Vinyl Chloride (PVC) | 10 ft | 3.05 m | Multiple | Copper Tinned | 7 | 36 AWG | 0.042 in | 1.07 mm | 300 V | 25 ft | 7.62 m | 0.5 " | 12.7 mm | |||||
3M (TC) | 30 | 1 GOhms | -20 C | 105 ░C | Flat Cable | 0.05 in | 1.27 mm | Splice Free Zippable | UL Style 20462 | 28 AWG | Unshielded | Poly-Vinyl Chloride (PVC) | 100 ft | 30.48 m | Multiple | Copper Tinned | 7 | 36 AWG | 0.042 in | 1.07 mm | 300 V | 38.1 mm | 1.5 in | |||||||
3M (TC) | 64 | 1 GOhms | -20 C | 105 ░C | Flat Cable | 0.05 in | 1.27 mm | Zippable | UL Style 20462 | 28 AWG | Unshielded | Poly-Vinyl Chloride (PVC) | 100 ft | 30.48 m | Multiple | Copper Tinned | 7 | 36 AWG | 0.042 in | 1.07 mm | 300 V | 81.28 mm | 3.2 in | |||||||
3M (TC) | 37 | 1 GOhms | -20 C | 105 ░C | Flat Cable | 0.05 in | 1.27 mm | Zippable | UL Style 20462 | 46.99 mm | 1.85 in | 28 AWG | Unshielded | Poly-Vinyl Chloride (PVC) | 100 ft | 30.48 m | Multiple | Copper Tinned | 7 | 36 AWG | 0.042 in | 1.07 mm | 300 V | |||||||
3M (TC) | 20 | 1 GOhms | -20 C | 105 ░C | Flat Cable | 0.05 in | 1.27 mm | Zippable | UL Style 20462 | 1 in | 28 AWG | Unshielded | Poly-Vinyl Chloride (PVC) | 10 ft | 3.05 m | Multiple | Copper Tinned | 7 | 36 AWG | 0.042 in | 1.07 mm | 300 V | 25 ft 50 ft | 7.62 m 15.24 m | 25.4 mm | |||||
3M (TC) | 15 | 1 GOhms | -20 C | 105 ░C | Flat Cable | 0.05 in | 1.27 mm | Zippable | UL Style 20462 | 19.05 mm | 0.75 " | 28 AWG | Unshielded | Poly-Vinyl Chloride (PVC) | 100 ft | 30.48 m | Multiple | Copper Tinned | 7 | 36 AWG | 0.042 in | 1.07 mm | 300 V | |||||||
3M (TC) | 16 | 1 GOhms | -20 C | 105 ░C | Flat Cable | 0.05 in | 1.27 mm | Zippable | UL Style 20462 | 28 AWG | Unshielded | Poly-Vinyl Chloride (PVC) | 10 ft 100 ft | 3.05 m 30.48 m | Multiple | Copper Tinned | 7 | 36 AWG | 0.042 in | 1.07 mm | 300 V | 25 ft 50 ft | 7.62 m 15.24 m | 20.32 mm | 0.8 in | |||||
3M (TC) | 60 | 1 GOhms | -20 C | 105 ░C | Flat Cable | 0.05 in | 1.27 mm | Zippable | UL Style 20462 | 76.2 mm | 3 in | 28 AWG | Unshielded | Poly-Vinyl Chloride (PVC) | 100 ft | 30.48 m | Multiple | Copper Tinned | 7 | 36 AWG | 0.042 in | 1.07 mm | 300 V | |||||||
3M (TC) | 40 | 1 GOhms | -20 C | 105 ░C | Flat Cable | 0.05 in | 1.27 mm | Zippable | UL Style 20462 | 28 AWG | Unshielded | Poly-Vinyl Chloride (PVC) | 10 ft 100 ft | 3.05 m 30.48 m | Multiple | Copper Tinned | 7 | 36 AWG | 0.042 in | 1.07 mm | 300 V | 1 ft 25 ft 50 ft | 7.62 m 15.24 m 304.8 mm | 50.8 mm | 2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1000 | $ 0.82 | |
Description
General part information
C3302 Series
Flat Ribbon Cable Multiple 15 Conductors 0.050" (1.27mm) Flat Cable 100.0' (30.48m)
