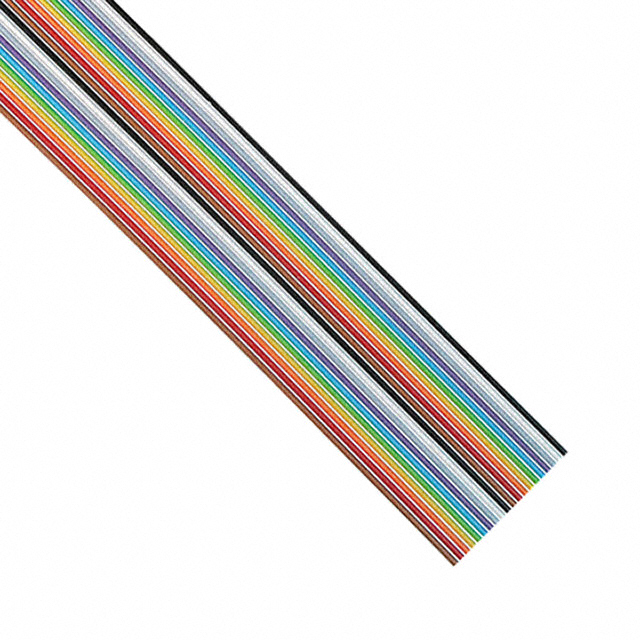

C3302/20 100

Active

3M (TC)

80610184840 C3302/20(100)=20/CAB/RC/CC/28AWG/STR/.050/CSA/100

Deep-Dive with AI

DocumentsDatasheet Cables & Accessories Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C3302/20 100

Cable Type	Flat Cable
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	36 AWG
Features	Zippable
Insulation Resistance	1 GOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length	25 ft, 50 ft
Length	7.62 m, 15.24 m
Length [x]	3.05 m
Length [x]	10 ft
Number of Conductors	20
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Ratings	UL Style 20462
Ribbon Thickness	0.042 in
Ribbon Thickness	1.07 mm
Ribbon Width	1 in
Ribbon Width	25.4 mm
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

C3302 Series

Part	Number of Conductors	Insulation Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Pitch [x]	Pitch [x]	Features	Ratings	Ribbon Width	Ribbon Width	Wire Gauge	Shielding	Jacket (Insulation) Material	Length [x]	Length [x]	Jacket Color	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Ribbon Thickness	Ribbon Thickness	Voltage	Length	Length	Ribbon Width [custom]	Ribbon Width [custom]	Ribbon Width [y]	Ribbon Width [y]	Ribbon Width
3M (TC) C3302/09 100	9	1 GOhms	-20 C	105 ░C	Flat Cable	0.05 in	1.27 mm	Zippable	UL Style 20462	11.43 mm	0.45 in	28 AWG	Unshielded	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	Multiple	Copper Tinned	7	36 AWG	0.042 in	1.07 mm	300 V
3M (TC) C3302/10SF 100	10	1 GOhms	-20 C	105 ░C	Flat Cable	0.05 in	1.27 mm	Zippable	UL Style 20462			28 AWG	Unshielded	Poly-Vinyl Chloride (PVC)	10 ft	3.05 m	Multiple	Copper Tinned	7	36 AWG	0.042 in	1.07 mm	300 V	25 ft	7.62 m	0.5 "	12.7 mm
3M (TC) C3302/30SF	30	1 GOhms	-20 C	105 ░C	Flat Cable	0.05 in	1.27 mm	Splice Free Zippable	UL Style 20462			28 AWG	Unshielded	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	Multiple	Copper Tinned	7	36 AWG	0.042 in	1.07 mm	300 V					38.1 mm	1.5 in
3M (TC) C3302/64 100	64	1 GOhms	-20 C	105 ░C	Flat Cable	0.05 in	1.27 mm	Zippable	UL Style 20462			28 AWG	Unshielded	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	Multiple	Copper Tinned	7	36 AWG	0.042 in	1.07 mm	300 V					81.28 mm	3.2 in
3M (TC) C3302/37 100	37	1 GOhms	-20 C	105 ░C	Flat Cable	0.05 in	1.27 mm	Zippable	UL Style 20462	46.99 mm	1.85 in	28 AWG	Unshielded	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	Multiple	Copper Tinned	7	36 AWG	0.042 in	1.07 mm	300 V
3M (TC) C3302/20 100	20	1 GOhms	-20 C	105 ░C	Flat Cable	0.05 in	1.27 mm	Zippable	UL Style 20462	1 in		28 AWG	Unshielded	Poly-Vinyl Chloride (PVC)	10 ft	3.05 m	Multiple	Copper Tinned	7	36 AWG	0.042 in	1.07 mm	300 V	25 ft 50 ft	7.62 m 15.24 m					25.4 mm
3M (TC) C3302/15 100	15	1 GOhms	-20 C	105 ░C	Flat Cable	0.05 in	1.27 mm	Zippable	UL Style 20462	19.05 mm	0.75 "	28 AWG	Unshielded	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	Multiple	Copper Tinned	7	36 AWG	0.042 in	1.07 mm	300 V
3M (TC) C3302/16 100	16	1 GOhms	-20 C	105 ░C	Flat Cable	0.05 in	1.27 mm	Zippable	UL Style 20462			28 AWG	Unshielded	Poly-Vinyl Chloride (PVC)	10 ft 100 ft	3.05 m 30.48 m	Multiple	Copper Tinned	7	36 AWG	0.042 in	1.07 mm	300 V	25 ft 50 ft	7.62 m 15.24 m			20.32 mm	0.8 in
3M (TC) C3302/60 100	60	1 GOhms	-20 C	105 ░C	Flat Cable	0.05 in	1.27 mm	Zippable	UL Style 20462	76.2 mm	3 in	28 AWG	Unshielded	Poly-Vinyl Chloride (PVC)	100 ft	30.48 m	Multiple	Copper Tinned	7	36 AWG	0.042 in	1.07 mm	300 V
3M (TC) C3302/40 100	40	1 GOhms	-20 C	105 ░C	Flat Cable	0.05 in	1.27 mm	Zippable	UL Style 20462			28 AWG	Unshielded	Poly-Vinyl Chloride (PVC)	10 ft 100 ft	3.05 m 30.48 m	Multiple	Copper Tinned	7	36 AWG	0.042 in	1.07 mm	300 V	1 ft 25 ft 50 ft	7.62 m 15.24 m 304.8 mm			50.8 mm	2 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 80.75
		1	$ 12.16
		1	$ 21.55
		1	$ 44.84
		5	$ 17.82
		5	$ 10.06
		5	$ 66.36
		5	$ 36.99
		10	$ 33.88
		10	$ 60.81
		10	$ 16.38
		10	$ 9.27
		25	$ 54.27
		25	$ 30.28
		25	$ 8.32
		25	$ 14.67
		50	$ 7.67
		50	$ 49.69
		50	$ 27.82
		50	$ 13.50
		100	$ 25.37
		100	$ 45.44
		100	$ 12.38
		100	$ 7.04
Newark	Each	1	$ 126.56
		10	$ 117.57
		25	$ 109.86
		50	$ 106.00
		100	$ 102.15

Description

General part information

C3302 Series

Flat Ribbon Cable Multiple 20 Conductors 0.050" (1.27mm) Flat Cable 10.0' (3.05m)
