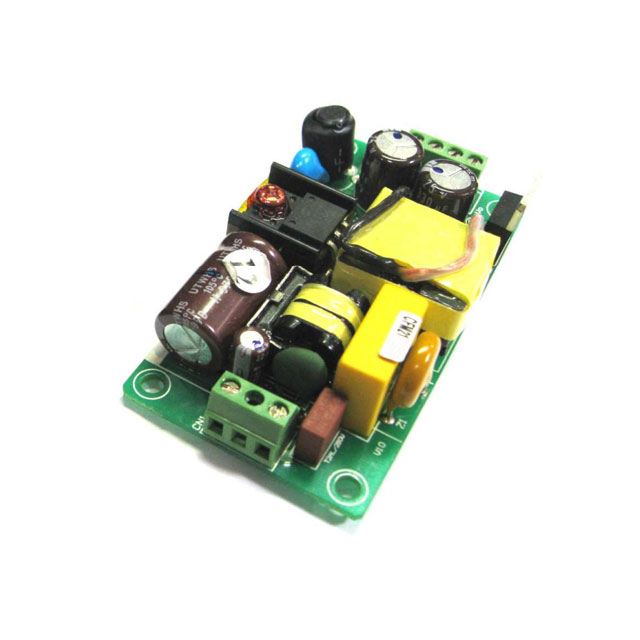

CFM21S090-S

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 9V 21W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM21S090-S

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 9V 21W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM21S090-S

Applications	Household Appliances, ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	2.3 A
Efficiency	81 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	21 W
Size / Dimension [x]	3 "
Size / Dimension [x]	76.2 mm
Size / Dimension [y]	40.6 mm
Size / Dimension [y]	1.6 "
Size / Dimension [z]	19.5 mm
Size / Dimension [z]	0.77 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	5.656 kV
Voltage - Output 1	9 V

CFM21 Series

Part	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Power (Watts)	Applications	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Mounting Type	Type	Features	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 1	Approval Agency
Cincon Electronics Co. LTD CFM21S033-T	75 %	90 VAC	264 VAC	1	13 W	Household Appliances ITE (Commercial)	40.6 mm	1.6 "	19.5 mm	3 "	76.2 mm	0.77 "	5.656 kV	Chassis Mount	Open Frame	Universal Input	3.3 V	-25 °C	70 °C	4 A	CE cURus TUV
Cincon Electronics Co. LTD CFM21S240-T	85 %	90 VAC	264 VAC	1	22 W	ITE (Commercial) Medical	40.6 mm	1.6 "	19.5 mm	3 "	76.2 mm	0.77 "	5.656 kV	Chassis Mount	Open Frame	Universal Input	24 V	-25 °C	70 °C	900 mA	CE cURus TUV
Cincon Electronics Co. LTD CFM21S120-T	83 %	90 VAC	264 VAC	1	20 W	Household Appliances ITE (Commercial)	40.6 mm	1.6 "	19.5 mm	3 "	76.2 mm	0.77 "	5.656 kV	Chassis Mount	Open Frame	Universal Input	12 V	-25 °C	70 °C	1.7 A	CE cURus TUV
Cincon Electronics Co. LTD CFM21M150-T	85 %	90 VAC	264 VAC	1	21 W	ITE (Commercial) Medical	40.6 mm	1.6 "	19.2 mm	3 "	76.2 mm	0.76 "	4000 V	Chassis Mount	Open Frame	Universal Input	15 V	-25 °C	70 °C	1.4 A	CE cURus TUV
Cincon Electronics Co. LTD CFM21S120-S	83 %	90 VAC	264 VAC	1	20 W	Household Appliances ITE (Commercial)	40.6 mm	1.6 "	19.5 mm	3 "	76.2 mm	0.77 "	5.656 kV	Chassis Mount	Open Frame	Universal Input	12 V	-25 °C	70 °C	1.7 A	CE cURus TUV
Cincon Electronics Co. LTD CFM21S090-T	81 %	90 VAC	264 VAC	1	21 W	Household Appliances ITE (Commercial)	40.6 mm	1.6 "	19.5 mm	3 "	76.2 mm	0.77 "	5.656 kV	Chassis Mount	Open Frame	Universal Input	9 V	-25 °C	70 °C	2.3 A	CE cURus TUV
Cincon Electronics Co. LTD CFM21M090-S	83 %	90 VAC	264 VAC	1	21 W	ITE (Commercial) Medical	40.6 mm	1.6 "	19.2 mm	3 "	76.2 mm	0.76 "	4000 V	Chassis Mount	Open Frame	Universal Input	9 V	-25 °C	70 °C	2.3 A	CE cURus TUV
Cincon Electronics Co. LTD CFM21M120-T	85 %	90 VAC	264 VAC	1	20 W	ITE (Commercial) Medical	40.6 mm	1.6 "	19.2 mm	3 "	76.2 mm	0.76 "	4000 V	Chassis Mount	Open Frame	Universal Input	12 V	-25 °C	70 °C	1.7 A	CE cURus TUV
Cincon Electronics Co. LTD CFM21M150-S	85 %	90 VAC	264 VAC	1	21 W	ITE (Commercial) Medical	40.6 mm	1.6 "	19.2 mm	3 "	76.2 mm	0.76 "	4000 V	Chassis Mount	Open Frame	Universal Input	15 V	-25 °C	70 °C	1.4 A	CE cURus TUV
Cincon Electronics Co. LTD CFM21S090-S	81 %	90 VAC	264 VAC	1	21 W	Household Appliances ITE (Commercial)	40.6 mm	1.6 "	19.5 mm	3 "	76.2 mm	0.77 "	5.656 kV	Chassis Mount	Open Frame	Universal Input	9 V	-25 °C	70 °C	2.3 A	CE cURus TUV

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.44
		100	$ 17.32

Description

General part information

CFM21 Series

Open Frame AC DC Converters 1 Output 9V 90 ~ 264 VAC Input
