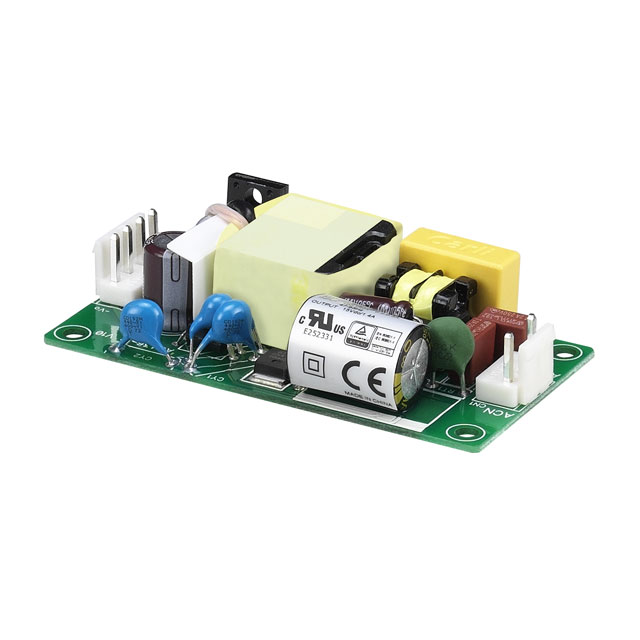

Specification	CFM21M150-T

Applications	ITE (Commercial), Medical
Approval Agency	cURus, TUV, CE
Current - Output 1	1.4 A
Efficiency	85 %
Features	Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-25 °C
Power (Watts)	21 W
Size / Dimension Height	0.76 in
Size / Dimension Length	3 in
Size / Dimension Width	1.6 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	15 V

CFM21 Series

Switching Power Supplies AC-DC Module, 20 Watt, Single Output, Encapsulated Type, 90-264VAC Input, 3.3VDC Output, Encapsulated

Part	Number of Outputs	Features	Operating Temperature (Max)	Operating Temperature (Min)	Efficiency	Applications	Type	Approval Agency	Current - Output 1	Mounting Type	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Voltage - Output 1	Power (Watts)	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Voltage - Isolation
Cincon Electronics Co. LTD CFM21S033-T	1	Universal Input	70 °C	-25 °C	75 %	Household Appliances ITE (Commercial)	Open Frame	CE cURus TUV	4 A	Chassis Mount	90 V	264 V	3.3 V	13 W	3 in	1.6 in	0.77 in	5.656 kV
Cincon Electronics Co. LTD CFM21S240-T	1	Universal Input	70 °C	-25 °C	85 %	ITE (Commercial) Medical	Open Frame	CE cURus TUV	900 mA	Chassis Mount	90 V	264 V	24 V	22 W	3 in	1.6 in	0.77 in	5.656 kV
Cincon Electronics Co. LTD CFM21M120-S	1	Universal Input	70 °C	-25 °C	85 %	ITE (Commercial) Medical	Open Frame	CE cURus TUV	1.7 A	Chassis Mount	90 V	264 V	12 V	20 W	3 in	1.6 in	0.76 in	4000 Vpk
Cincon Electronics Co. LTD CFM21S120-T	1	Universal Input	70 °C	-25 °C	83 %	Household Appliances ITE (Commercial)	Open Frame	CE cURus TUV	1.7 A	Chassis Mount	90 V	264 V	12 V	20 W	3 in	1.6 in	0.77 in	5.656 kV
Cincon Electronics Co. LTD CFM21M150-T	1	Universal Input	70 °C	-25 °C	85 %	ITE (Commercial) Medical	Open Frame	CE cURus TUV	1.4 A	Chassis Mount	90 V	264 V	15 V	21 W	3 in	1.6 in	0.76 in	4000 Vpk
Cincon Electronics Co. LTD CFM21S240-S	1	Universal Input	70 °C	-25 °C	88 %	Household Appliances ITE (Commercial)	Open Frame	CE cURus TUV	900 mA	Chassis Mount	90 V	264 V	24 V	22 W	3 in	1.6 in	0.77 in	5.656 kV
Cincon Electronics Co. LTD CFM21M240-S	1	Universal Input	70 °C	-25 °C	86 %	ITE (Commercial) Medical	Open Frame	CE cURus TUV	900 mA	Chassis Mount	90 V	264 V	24 V	22 W	3 in	1.6 in	0.76 in	4000 Vpk
Cincon Electronics Co. LTD CFM21S120-S	1	Universal Input	70 °C	-25 °C	83 %	Household Appliances ITE (Commercial)	Open Frame	CE cURus TUV	1.7 A	Chassis Mount	90 V	264 V	12 V	20 W	3 in	1.6 in	0.77 in	5.656 kV
Cincon Electronics Co. LTD CFM21S090-T	1	Universal Input	70 °C	-25 °C	81 %	Household Appliances ITE (Commercial)	Open Frame	CE cURus TUV	2.3 A	Chassis Mount	90 V	264 V	9 V	21 W	3 in	1.6 in	0.77 in	5.656 kV
Cincon Electronics Co. LTD CFM21M090-S	1	Universal Input	70 °C	-25 °C	83 %	ITE (Commercial) Medical	Open Frame	CE cURus TUV	2.3 A	Chassis Mount	90 V	264 V	9 V	21 W	3 in	1.6 in	0.76 in	4000 Vpk

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

CFM21M150-T | Datasheet
