RB6532-16-0M8

Active

TE Connectivity Raychem Cable Protection

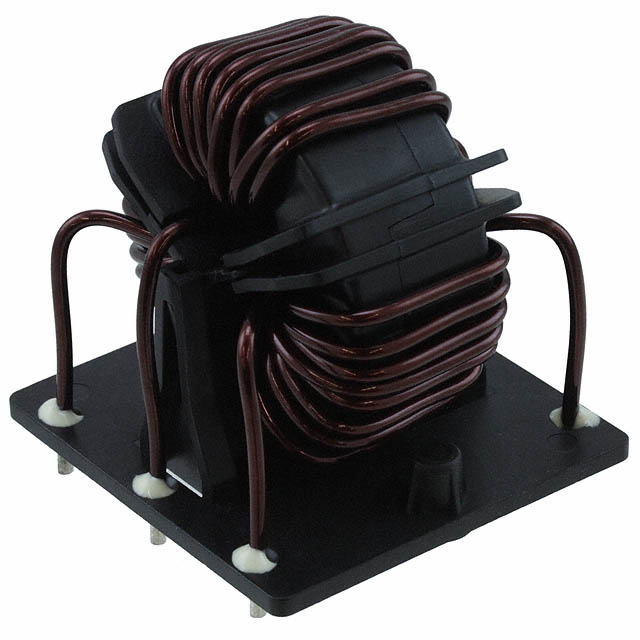

CMC 800UH 16A 3LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 800UH 16A 3LN TH

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR) (Max)	Package / Case	Package / Case	Height (Max)	Height (Max)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Filter Type	Inductance @ Frequency	Current Rating (Max) [Max]	Voltage Rating - DC	Voltage Rating - DC	Height (Max) [Max]	DC Resistance (DCR) (Max) [Max]
TE Connectivity Raychem Cable Protection RB6532-36-0M4	1.5 mOhm	6 Leads	Vertical	70 mm	2.756 in	Through Hole	2.441 in	2.283 "	62 mm	58 mm	600 V	125 °C	-40 °C	3	Power Line	400 Hz 420 µH	36 A	1 kVDC	1 kV
TE Connectivity Raychem Cable Protection RB6532-50-0M2	0.8 mOhm	6 Leads	Vertical	70 mm	2.756 in	Through Hole	2.441 in	2.283 "	62 mm	58 mm	600 V	125 °C	-40 °C	3	Power Line	180 µH	50 A	1 kVDC	1 kV
TE Connectivity Raychem Cable Protection RB6532-25-0M5	2.4 mOhm	6 Leads	Vertical			Through Hole	2.283 in	2.165 in	58 mm	55 mm	600 V	125 °C	-40 °C	3	Power Line	470 µH	25 A	1 kVDC	1 kV	2.283 in 58 mm
TE Connectivity Raychem Cable Protection RB6532-16-0M8		6 Leads	Vertical			Through Hole	2.283 in	2.165 in	58 mm	55 mm	600 V	125 °C	-40 °C	3	Power Line	800 µH	16 A	1 kVDC	1 kV	2.283 in 58 mm	4.7 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

800 µH @ 1 kHz 3 Line Common Mode Choke Through Hole 16A DCR 4.7mOhm (Typ)
