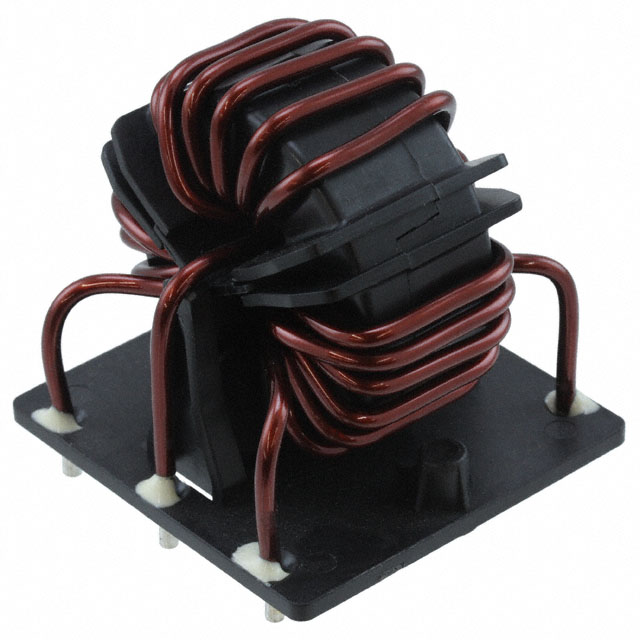

RB6532-25-0M5

Active

TE Connectivity Raychem Cable Protection

CMC 470UH 25A 3LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 470UH 25A 3LN TH

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR) (Max)	Package / Case	Package / Case	Height (Max)	Height (Max)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Number of Lines	Filter Type	Inductance @ Frequency	Current Rating (Max) [Max]	Voltage Rating - DC	Voltage Rating - DC	Height (Max) [Max]	DC Resistance (DCR) (Max) [Max]
TE Connectivity Raychem Cable Protection RB6532-36-0M4	1.5 mOhm	6 Leads	Vertical	70 mm	2.756 in	Through Hole	2.441 in	2.283 "	62 mm	58 mm	600 V	125 °C	-40 °C	3	Power Line	400 Hz 420 µH	36 A	1 kVDC	1 kV
TE Connectivity Raychem Cable Protection RB6532-50-0M2	0.8 mOhm	6 Leads	Vertical	70 mm	2.756 in	Through Hole	2.441 in	2.283 "	62 mm	58 mm	600 V	125 °C	-40 °C	3	Power Line	180 µH	50 A	1 kVDC	1 kV
TE Connectivity Raychem Cable Protection RB6532-25-0M5	2.4 mOhm	6 Leads	Vertical			Through Hole	2.283 in	2.165 in	58 mm	55 mm	600 V	125 °C	-40 °C	3	Power Line	470 µH	25 A	1 kVDC	1 kV	2.283 in 58 mm
TE Connectivity Raychem Cable Protection RB6532-16-0M8		6 Leads	Vertical			Through Hole	2.283 in	2.165 in	58 mm	55 mm	600 V	125 °C	-40 °C	3	Power Line	800 µH	16 A	1 kVDC	1 kV	2.283 in 58 mm	4.7 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.48

General part information

470 µH @ 400 Hz 3 Line Common Mode Choke Through Hole 25A DCR 2.4mOhm (Typ)
