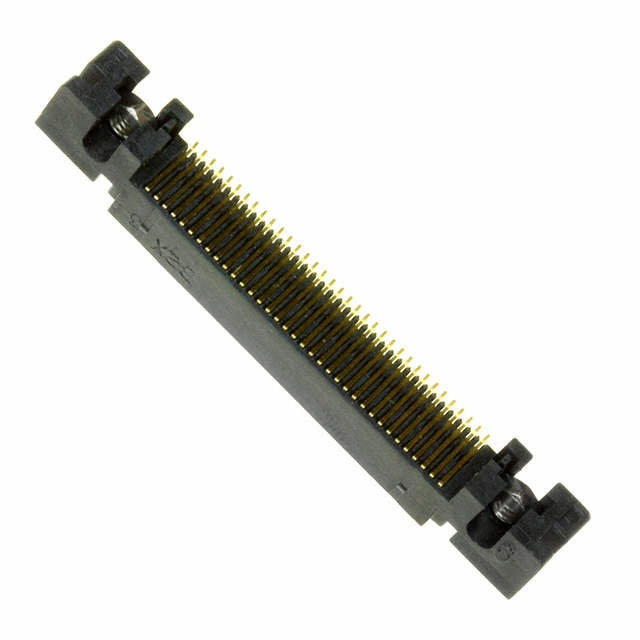

KX15-70KLNL
ActiveJAE Electronics
CONN PLUG 70POS R/A SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KX15-70KLNL
ActiveJAE Electronics
CONN PLUG 70POS R/A SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KX15-70KLNL |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Board Guide |
| Height Above Board | 0.226 in |
| Height Above Board | 5.74 mm |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 70 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
KX15-70K Series
| Part | Mounting Type | Height Above Board | Height Above Board | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Features | Number of Rows | Pitch [x] | Pitch [x] | Contact Finish | Mated Stacking Heights | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | Surface Mount Right Angle | 0.226 in | 5.74 mm | 4 Áin | 0.1 Ám | 70 | Board Guide Solder Retention | 2 | 0.8 mm | 0.031 in | Gold | ||
JAE Electronics | Surface Mount Right Angle | 0.226 in | 5.74 mm | 4 Áin | 0.1 Ám | 70 | Board Guide | 2 | 0.8 mm | 0.031 in | Gold | ||
JAE Electronics | Surface Mount | 0.226 in | 5.74 mm | 4 Áin | 0.1 Ám | 70 | Board Guide Solder Retention | 2 | 0.8 mm | 0.031 in | Gold | 6 mm 9 mm 12 mm 15 mm 18 mm | |
JAE Electronics | Surface Mount | 4.75 mm | 4 Áin | 0.1 Ám | 70 | Board Guide Solder Retention | 2 | 0.8 mm | 0.031 in | Gold | 5 mm 8 mm 11 mm 14 mm 17 mm | 0.187 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 115 | $ 5.28 | |
Description
General part information
KX15-70K Series
70 Position Connector Plug, Center Strip Contacts Surface Mount, Right Angle Gold
