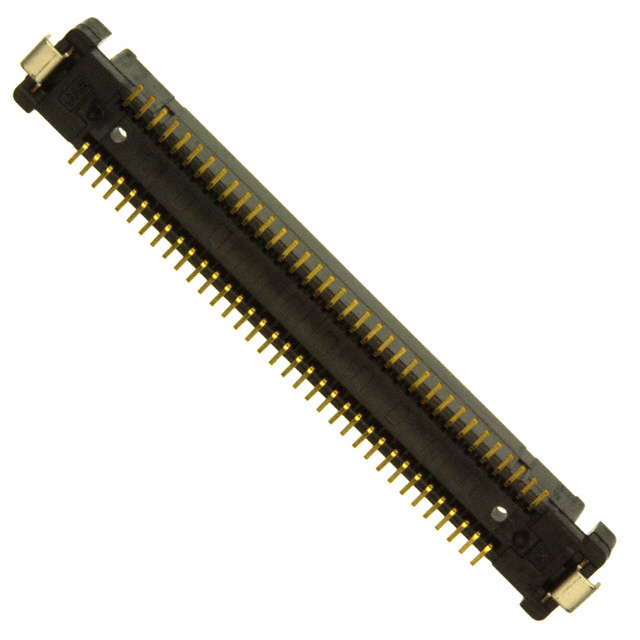

KX15-70K3DE

Active

JAE Electronics

CONN PLUG 70POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 70POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	KX15-70K3DE

Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	4.75 mm
Height Above Board [z]	0.187 in
Mated Stacking Heights	11 mm, 5 mm, 8 mm, 17 mm, 14 mm
Mounting Type	Surface Mount
Number of Positions	70
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Mounting Type	Height Above Board	Height Above Board	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Features	Number of Rows	Pitch [x]	Pitch [x]	Contact Finish	Mated Stacking Heights	Height Above Board [z]
JAE Electronics KX15-70KLDLE	Surface Mount Right Angle	0.226 in	5.74 mm	4 Áin	0.1 Ám	70	Board Guide Solder Retention	2	0.8 mm	0.031 in	Gold
JAE Electronics KX15-70KLNL	Surface Mount Right Angle	0.226 in	5.74 mm	4 Áin	0.1 Ám	70	Board Guide	2	0.8 mm	0.031 in	Gold
JAE Electronics KX15-70K4D-E1000E	Surface Mount	0.226 in	5.74 mm	4 Áin	0.1 Ám	70	Board Guide Solder Retention	2	0.8 mm	0.031 in	Gold	6 mm 9 mm 12 mm 15 mm 18 mm
JAE Electronics KX15-70K3DE	Surface Mount		4.75 mm	4 Áin	0.1 Ám	70	Board Guide Solder Retention	2	0.8 mm	0.031 in	Gold	5 mm 8 mm 11 mm 14 mm 17 mm	0.187 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

70 Position Connector Plug, Center Strip Contacts Surface Mount Gold
