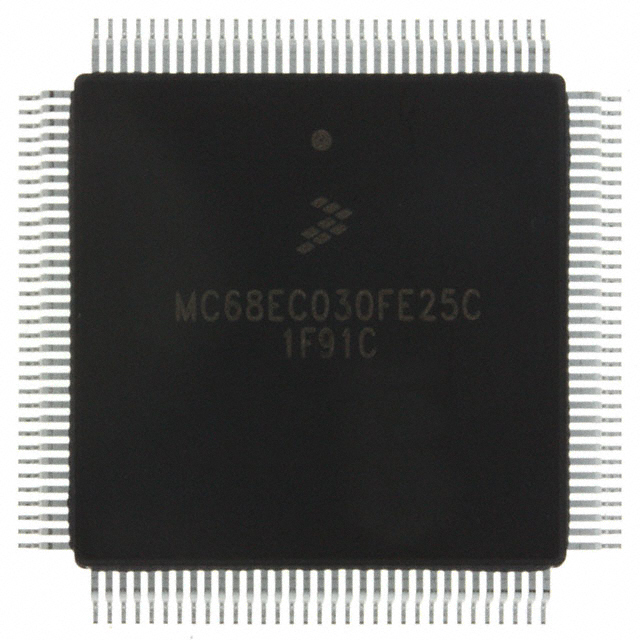

MC68EC030CFE25C

Obsolete

Freescale Semiconductor - NXP

IC MPU M680X0 25MHZ 132CQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MC68EC030CFE25C

Obsolete

Freescale Semiconductor - NXP

IC MPU M680X0 25MHZ 132CQFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MC68EC030CFE25C

Additional Interfaces	SCI, SPI
Core Processor	68030
Graphics Acceleration	False
Mounting Type	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	132-BCQFP
Speed	25 MHz
Supplier Device Package	132-CQFP (24x24)
Voltage - I/O	5 V

MC68 Series

Part	Co-Processors/DSP	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Additional Interfaces	Number of Cores/Bus Width [Min] [custom]	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [Max] [custom]	Voltage - I/O	Mounting Type	Core Processor	Speed	RAM Controllers	Number of Cores/Bus Width	Ethernet	Display & Interface Controllers
Freescale Semiconductor - NXP MC68LC302PU20CT	Communications RISC CPM	100-LQFP	100-LQFP (14x14)	70 °C	0 °C	GCI IDL ISDN NMSI PCM SCPI	8 Bit	1	16 Bit	5 V	Surface Mount	M68000	20 MHz	DRAM
Freescale Semiconductor - NXP MC68EC030CFE25C		132-BCQFP	132-CQFP (24x24)	85 °C	-40 °C	SCI SPI				5 V	Surface Mount	68030	25 MHz		1 Core 32 Bit
Freescale Semiconductor - NXP MC68EC020FG25		100-BQFP	100-QFP (14x20)	70 °C	0 °C					5 V	Surface Mount	68020	25 MHz		1 Core 32 Bit
Freescale Semiconductor - NXP MC68HC000FN16		68-LCC (J-Lead)	68-PLCC (24.21x24.21)	70 °C	0 °C					5 V	Surface Mount	EC000	16 MHz		1 Core 32 Bit
Freescale Semiconductor - NXP MC68EN360EM25L	Communications CPM	240-BFQFP	240-FQFP (32x32)	70 °C	0 °C	SCC SMC SPI				5 V	Surface Mount	CPU32+	25 MHz	DRAM	1 Core 32 Bit	10 Mbps
Freescale Semiconductor - NXP MC68EC000EI12R2		68-LCC (J-Lead)	68-PLCC (24.21x24.21)	70 °C	0 °C					5 V	Surface Mount	EC000	12 MHz		1 Core 32 Bit
Freescale Semiconductor - NXP MC68SZ328AVM66		196-PBGA	196-BGA	70 °C	0 °C	SPI UART				3 V	Surface Mount	FLX68000	66 MHz	DRAM	1 Core 32 Bit		LCD Touch Panel
Freescale Semiconductor - NXP MC68SEC000AE10		64-LQFP	64-LQFP (10x10)	70 °C	0 °C					3.3 V 5 V	Surface Mount	EC000	10 MHz		1 Core 32 Bit
Freescale Semiconductor - NXP MC68SEC000AE16		64-LQFP	64-LQFP (10x10)	70 °C	0 °C					3.3 V 5 V	Surface Mount	EC000	16 MHz		1 Core 32 Bit
Freescale Semiconductor - NXP MC68LC302AF20VCT	Communications RISC CPM	100-LQFP	100-LQFP (14x14)	70 °C	0 °C	GCI IDL ISDN NMSI PCM SCPI	8 Bit	1	16 Bit	3.3 V	Surface Mount	M68000	20 MHz	DRAM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MC68 Series

68030 Microprocessor IC M680x0 1 Core, 32-Bit 25MHz 132-CQFP (24x24)
