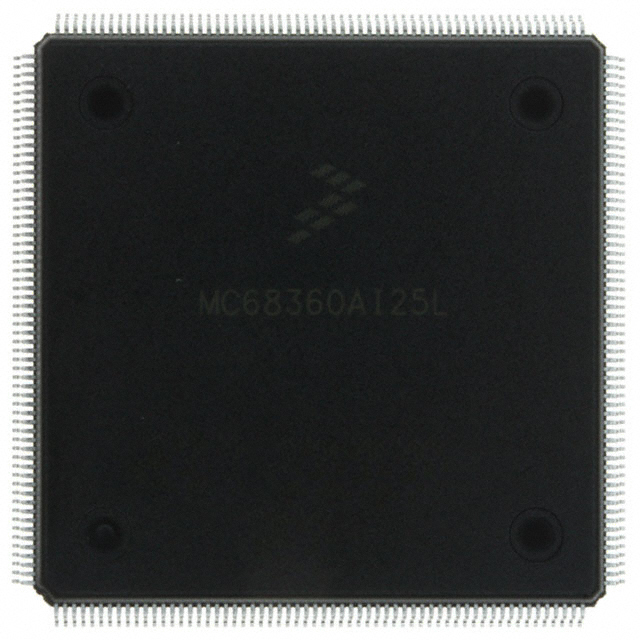

MC68EN360EM25L

Obsolete

Freescale Semiconductor - NXP

IC MPU M683XX 25MHZ 240FQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MC68EN360EM25L

Obsolete

Freescale Semiconductor - NXP

IC MPU M683XX 25MHZ 240FQFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MC68EN360EM25L

Additional Interfaces	SMC, SCC, SPI
Co-Processors/DSP	CPM, Communications
Core Processor	CPU32+
Ethernet	10 Mbps
Graphics Acceleration	False
Mounting Type	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Package / Case	240-BFQFP
RAM Controllers	DRAM
Speed	25 MHz
Supplier Device Package	240-FQFP (32x32)
Voltage - I/O	5 V

MC68 Series

Part	Co-Processors/DSP	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Additional Interfaces	Number of Cores/Bus Width [Min] [custom]	Number of Cores/Bus Width [custom]	Number of Cores/Bus Width [Max] [custom]	Voltage - I/O	Mounting Type	Core Processor	Speed	RAM Controllers	Number of Cores/Bus Width	Ethernet	Display & Interface Controllers
Freescale Semiconductor - NXP MC68LC302PU20CT	Communications RISC CPM	100-LQFP	100-LQFP (14x14)	70 °C	0 °C	GCI IDL ISDN NMSI PCM SCPI	8 Bit	1	16 Bit	5 V	Surface Mount	M68000	20 MHz	DRAM
Freescale Semiconductor - NXP MC68EC030CFE25C		132-BCQFP	132-CQFP (24x24)	85 °C	-40 °C	SCI SPI				5 V	Surface Mount	68030	25 MHz		1 Core 32 Bit
Freescale Semiconductor - NXP MC68EC020FG25		100-BQFP	100-QFP (14x20)	70 °C	0 °C					5 V	Surface Mount	68020	25 MHz		1 Core 32 Bit
Freescale Semiconductor - NXP MC68HC000FN16		68-LCC (J-Lead)	68-PLCC (24.21x24.21)	70 °C	0 °C					5 V	Surface Mount	EC000	16 MHz		1 Core 32 Bit
Freescale Semiconductor - NXP MC68EN360EM25L	Communications CPM	240-BFQFP	240-FQFP (32x32)	70 °C	0 °C	SCC SMC SPI				5 V	Surface Mount	CPU32+	25 MHz	DRAM	1 Core 32 Bit	10 Mbps
Freescale Semiconductor - NXP MC68EC000EI12R2		68-LCC (J-Lead)	68-PLCC (24.21x24.21)	70 °C	0 °C					5 V	Surface Mount	EC000	12 MHz		1 Core 32 Bit
Freescale Semiconductor - NXP MC68SZ328AVM66		196-PBGA	196-BGA	70 °C	0 °C	SPI UART				3 V	Surface Mount	FLX68000	66 MHz	DRAM	1 Core 32 Bit		LCD Touch Panel
Freescale Semiconductor - NXP MC68SEC000AE10		64-LQFP	64-LQFP (10x10)	70 °C	0 °C					3.3 V 5 V	Surface Mount	EC000	10 MHz		1 Core 32 Bit
Freescale Semiconductor - NXP MC68SEC000AE16		64-LQFP	64-LQFP (10x10)	70 °C	0 °C					3.3 V 5 V	Surface Mount	EC000	16 MHz		1 Core 32 Bit
Freescale Semiconductor - NXP MC68LC302AF20VCT	Communications RISC CPM	100-LQFP	100-LQFP (14x14)	70 °C	0 °C	GCI IDL ISDN NMSI PCM SCPI	8 Bit	1	16 Bit	3.3 V	Surface Mount	M68000	20 MHz	DRAM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MC68 Series

CPU32+ Microprocessor IC M683xx 1 Core, 32-Bit 25MHz 240-FQFP (32x32)

Documents

Technical documentation and resources
