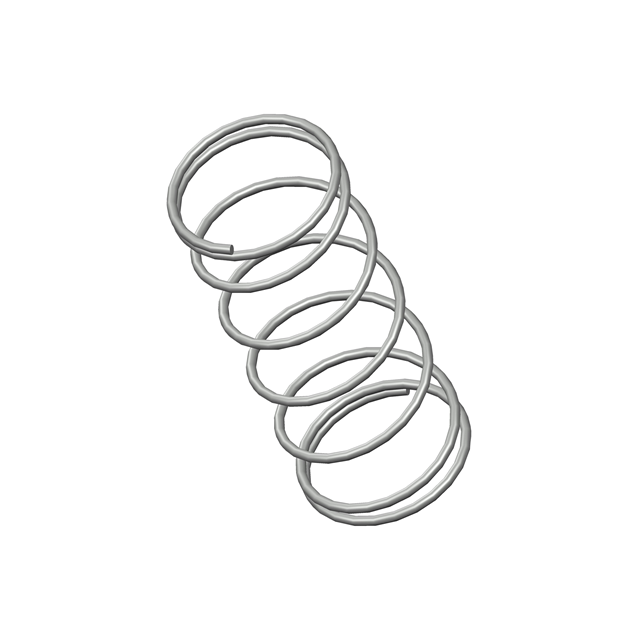

A12-14CS
ActiveCentury Spring Corp
COMP O= .390,L= .97,W= .022
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A12-14CS
ActiveCentury Spring Corp
COMP O= .390,L= .97,W= .022
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A12-14CS | A12 Series |
|---|---|---|
| Diameter - Inside | - | 9.25 mm |
| Diameter - Inside | - | 0.364 in |
| Diameter - Inside [diameter] | 0.346 in | 0.112 - 0.346 " |
| Diameter - Inside [diameter] | 8.79 mm | 2.84 - 8.79 mm |
| Diameter - Outside [diameter] | 0.39 in | 0.14 - 0.406 in |
| Diameter - Outside [diameter] | 9.91 mm | 3.56 - 10.31 mm |
| End Style | Closed | Closed |
| Finish | Zinc | None, Zinc |
| Free Length | 0.97 in | 0.35 - 0.97 " |
| Free Length | 24.64 mm | 8.89 - 24.64 mm |
| Material | Music Wire | Stainless Steel, Music Wire |
| Rate | 1.2 lbs/in | 1.2 - 4 lbs/in |
| Type | Compression | Compression |
| Wire Diameter | - | 0.021 in |
| Wire Diameter | - | 0.53 mm |
| Wire Diameter [diameter] | 0.56 mm | 0.36 - 0.56 mm |
| Wire Diameter [diameter] | 0.022 in | 0.014 - 0.022 in |
A12 Series
COMP O= .140,L= .35,W= .014
| Part | Finish | Material | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Wire Diameter [diameter] | Wire Diameter [diameter] | End Style | Rate | Free Length | Free Length | Diameter - Inside [diameter] | Diameter - Inside [diameter] | Type | Wire Diameter | Wire Diameter | Diameter - Inside | Diameter - Inside |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Century Spring Corp A12-1CS | None | Stainless Steel | 0.14 in | 3.56 mm | 0.36 mm | 0.014 in | Closed | 4 lbs/in | 8.89 mm | 0.35 " | 0.112 " | 2.84 mm | |||||
Century Spring Corp A12-14CS | Zinc | Music Wire | 0.39 in | 9.91 mm | 0.56 mm | 0.022 in | Closed | 1.2 lbs/in | 24.64 mm | 0.97 in | 0.346 in | 8.79 mm | Compression | ||||
Century Spring Corp A12-13CS | None | Stainless Steel | 0.406 in | 10.31 mm | Closed | 2.1 lbs/in | 13.72 mm | 0.54 in | Compression | 0.021 in | 0.53 mm | 9.25 mm | 0.364 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 5.17 | |
| 50 | $ 2.07 | |||
| 150 | $ 1.97 | |||
| 300 | $ 1.87 | |||
| 500 | $ 1.64 | |||
Description
General part information
A12 Series
COMP O= .390,L= .97,W= .022
