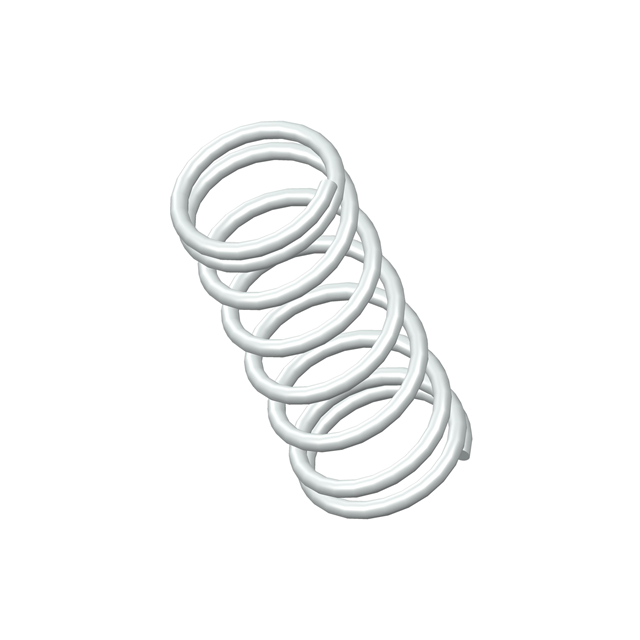

A12-1CS

Active

Century Spring Corp

COMP O= .140,L= .35,W= .014

Search across all available documentation for this part.

Active

Century Spring Corp

COMP O= .140,L= .35,W= .014

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

COMP O= .140,L= .35,W= .014

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

COMP O= .140,L= .35,W= .014

Part	Finish	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wire Diameter [diameter]	Wire Diameter [diameter]	End Style	Rate	Free Length	Free Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type	Wire Diameter	Wire Diameter	Diameter - Inside	Diameter - Inside
Century Spring Corp A12-1CS	None	Stainless Steel	0.14 in	3.56 mm	0.36 mm	0.014 in	Closed	4 lbs/in	8.89 mm	0.35 "	0.112 "	2.84 mm
Century Spring Corp A12-14CS	Zinc	Music Wire	0.39 in	9.91 mm	0.56 mm	0.022 in	Closed	1.2 lbs/in	24.64 mm	0.97 in	0.346 in	8.79 mm	Compression
Century Spring Corp A12-13CS	None	Stainless Steel	0.406 in	10.31 mm			Closed	2.1 lbs/in	13.72 mm	0.54 in			Compression	0.021 in	0.53 mm	9.25 mm	0.364 in
