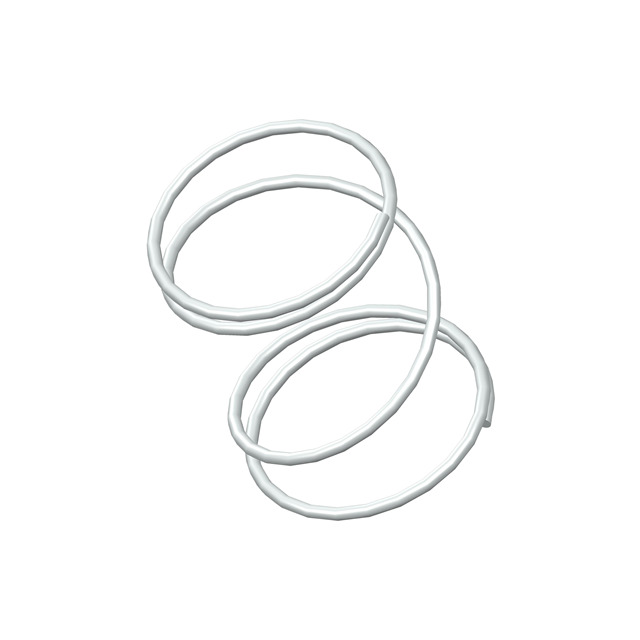

A12-13CS

Active

Century Spring Corp

COMPRESSION STEEL 0.406" 0.540"

Search across all available documentation for this part.

Active

Century Spring Corp

COMPRESSION STEEL 0.406" 0.540"

Technical Specifications

Parameters and characteristics commom to parts in this series

COMP O= .140,L= .35,W= .014

Part	Finish	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Wire Diameter [diameter]	Wire Diameter [diameter]	End Style	Rate	Free Length	Free Length	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Type	Wire Diameter	Wire Diameter	Diameter - Inside	Diameter - Inside
Century Spring Corp A12-1CS	None	Stainless Steel	0.14 in	3.56 mm	0.36 mm	0.014 in	Closed	4 lbs/in	8.89 mm	0.35 "	0.112 "	2.84 mm
Century Spring Corp A12-14CS	Zinc	Music Wire	0.39 in	9.91 mm	0.56 mm	0.022 in	Closed	1.2 lbs/in	24.64 mm	0.97 in	0.346 in	8.79 mm	Compression
Century Spring Corp A12-13CS	None	Stainless Steel	0.406 in	10.31 mm			Closed	2.1 lbs/in	13.72 mm	0.54 in			Compression	0.021 in	0.53 mm	9.25 mm	0.364 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

COMPRESSION STEEL 0.406" 0.540"
