CD431690B

Obsolete

Powerex Inc.

THYRISTOR MODULE, SERIES CONNECTED, 95 A, 1.6 KV

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SCR Module Selection Guide

CD431690B

Obsolete

Powerex Inc.

THYRISTOR MODULE, SERIES CONNECTED, 95 A, 1.6 KV

Deep-Dive with AI

DocumentsDatasheet SCR Module Selection Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CD431690B

Current - Gate Trigger (Igt) (Max) [Max]	150 mA
Current - Hold (Ih) (Max) [Max]	250 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	2100 A
Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	2000 A
Current - On State (It (AV)) (Max)	95 A
Current - On State (It (RMS)) (Max) [Max]	150 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	POW-R-BLOK™ Module
Structure	Series Connection - All SCRs
Voltage - Off State	1.6 kV

CD431690 Series

Part	Mounting Type	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Structure	Current - On State (It (AV)) (Max)	Package / Case	Voltage - Off State	Current - On State (It (RMS)) (Max) [Max]	Number of SCRs, Diodes	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max)	Current - Gate Trigger (Igt) (Max) [Max] [x]	Current - On State (It (AV)) (Max) [Max]
Powerex Inc. CD431690B	Chassis Mount	150 mA	250 mA	2000 A	2100 A	-40 °C	125 ¯C	Series Connection - All SCRs	95 A	POW-R-BLOK™ Module	1.6 kV	150 A	2 SCRs
Powerex Inc. CD431690C			100 mA			-40 °C	125 ¯C	Series Connection - All SCRs		Module	1.6 kV	141 A	2 SCRs	2000 A	2.5 V	100 mA	90 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Newark	Each	1	$ 44.51
		5	$ 38.92
		10	$ 33.31

Description

General part information

CD431690 Series

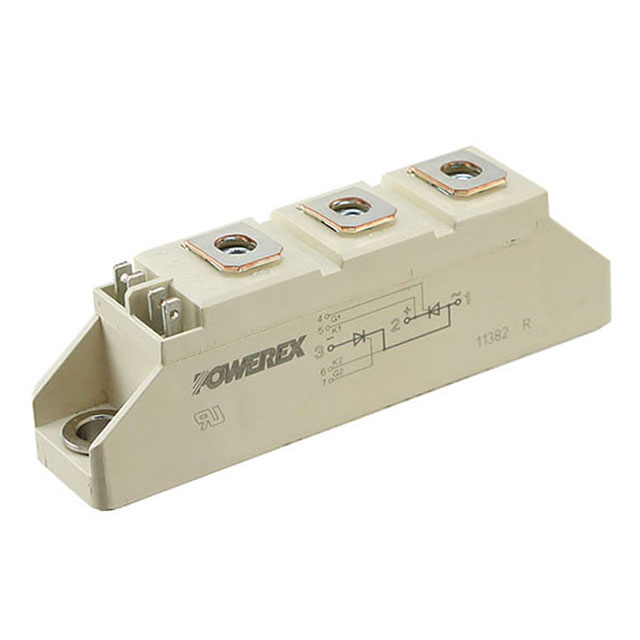

The CD431690B is a dual SCR Isolated Module designed for use in applications requiring phase control and isolated packaging. The modules are isolated for easy mounting with other components on a common heat sink. It is ideal for bridge circuits, large IGBT circuit front ends, welders, heat and temperature control.
