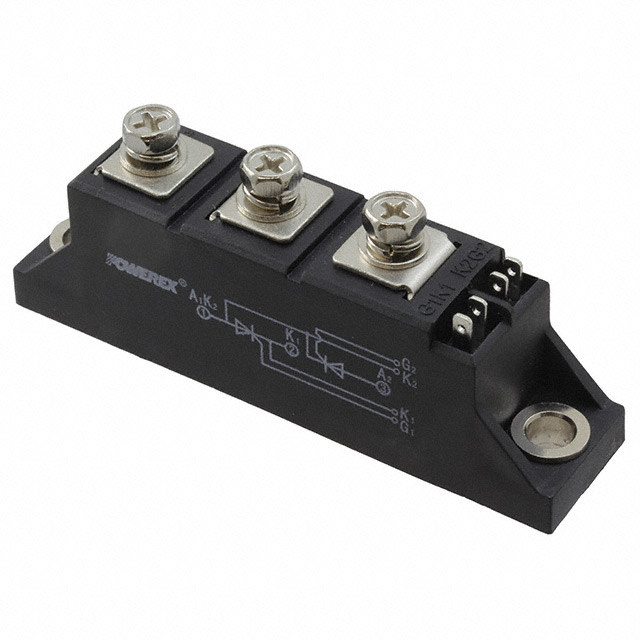

CD431690C

Active

Powerex Inc.

THYRISTOR MODULE, SERIES CONNECTED, 90 A

Search across all available documentation for this part.

Active

Powerex Inc.

THYRISTOR MODULE, SERIES CONNECTED, 90 A

Technical Specifications

Parameters and characteristics for this part

Specification	CD431690C

Current - Gate Trigger (Igt) (Max) [Max] [x]	100 mA
Current - Hold (Ih) (Max) [Max]	100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	2000 A
Current - On State (It (AV)) (Max) [Max]	90 A
Current - On State (It (RMS)) (Max) [Max]	141 A
Number of SCRs, Diodes	2 SCRs
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Structure	Series Connection - All SCRs
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.6 kV

Part	Mounting Type	Current - Gate Trigger (Igt) (Max) [Max]	Current - Hold (Ih) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Structure	Current - On State (It (AV)) (Max)	Package / Case	Voltage - Off State	Current - On State (It (RMS)) (Max) [Max]	Number of SCRs, Diodes	Current - Non Rep. Surge 50, 60Hz (Itsm)	Voltage - Gate Trigger (Vgt) (Max)	Current - Gate Trigger (Igt) (Max) [Max] [x]	Current - On State (It (AV)) (Max) [Max]
Powerex Inc. CD431690B	Chassis Mount	150 mA	250 mA	2000 A	2100 A	-40 °C	125 ¯C	Series Connection - All SCRs	95 A	POW-R-BLOK™ Module	1.6 kV	150 A	2 SCRs
Powerex Inc. CD431690C			100 mA			-40 °C	125 ¯C	Series Connection - All SCRs		Module	1.6 kV	141 A	2 SCRs	2000 A	2.5 V	100 mA	90 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SCR Module 1.6 kV 141 A Series Connection - All SCRs Module
