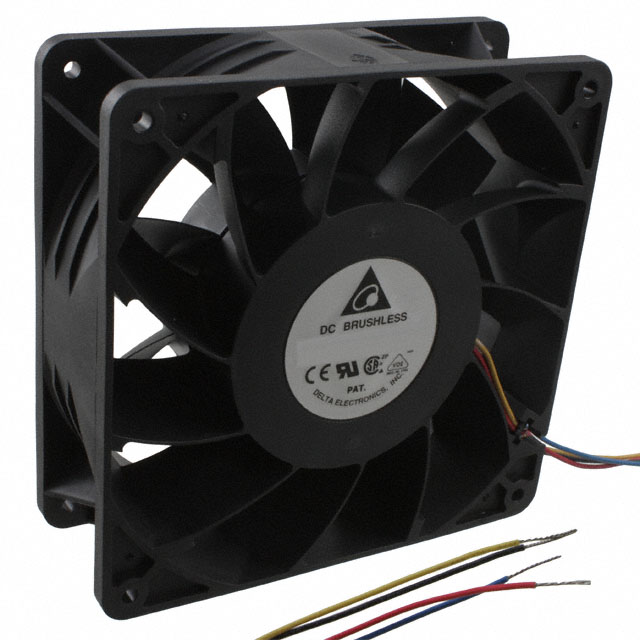

FFB1424VHG-EP

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 24V 18V TO 26.4V 252.11CFM 58.5DB 139.7 X 139.7 X 50.8MM

Search across all available documentation for this part.

Active

Delta Electronics

DC FAN AXIAL BALL BEARING 24V 18V TO 26.4V 252.11CFM 58.5DB 139.7 X 139.7 X 50.8MM

Technical Specifications

Parameters and characteristics for this part

Specification	FFB1424VHG-EP

Air Flow	7.06 m³/min
Air Flow	252.1 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), GR-487 (Salt Fog Protection), PWM Control
Ingress Protection	IP56 - Dust Protected, Water Resistant
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	58.5 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	24 W
RPM	3200 RPM
Static Pressure	0.644 in H2O
Static Pressure	160.4 Pa
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	18 VDC
Weight	670 g
Weight	1.5 lb
Width [y]	2 "

Part	Features	Approval Agency	Fan Type	Current Rating (Amps)	Termination	Material - Blade	Power (Watts)	Noise	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Width [y]	RPM	Static Pressure	Static Pressure	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Voltage - Rated	Material - Frame	Air Flow	Air Flow	Ingress Protection
Delta Electronics FFB1424UHE-MF00	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	Tubeaxial	3.35 A	3 Wire Leads	Plastic	80.4 W	74 dB(A)	Ball	26.4 VDC	14 VDC	38 mm	5500 RPM	409.5 Pa	1.644 in H2O	80000 Hrs	70 °C	70 °C	-10 °C	-10 °C	1.4 lbs	650 g	24 VDC	Aluminum	367.6 CFM	10.29 m³/min
Delta Electronics FFB1424SHG-F00	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	Tubeaxial	1.53 A	3 Wire Leads	Plastic	36.72 W		Ball	26.4 VDC	14 VDC	2 "	3600 RPM	194.5 Pa	0.781 in H2O	70000 Hrs	50 °C	50 °C	-10 °C	-10 °C	1.5 lb	670 g	24 VDC	Plastic	273.1 CFM	7.65 m³/min
Delta Electronics FFB1424VHG-EP	GR-487 (Salt Fog Protection) PWM Control Speed Sensor (Tach)	CE CSA UL VDE	Tubeaxial	1 A	4 Wire Leads	Plastic	24 W	58.5 dB	Ball	26.4 VDC	18 VDC	2 "	3200 RPM	160.4 Pa	0.644 in H2O	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	1.5 lb	670 g	24 VDC	Plastic	252.1 CFM	7.06 m³/min	IP56 - Dust Protected Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 139.7mm L x 139.7mm H Ball 252.1 CFM (7.06m³/min) 4 Wire Leads
