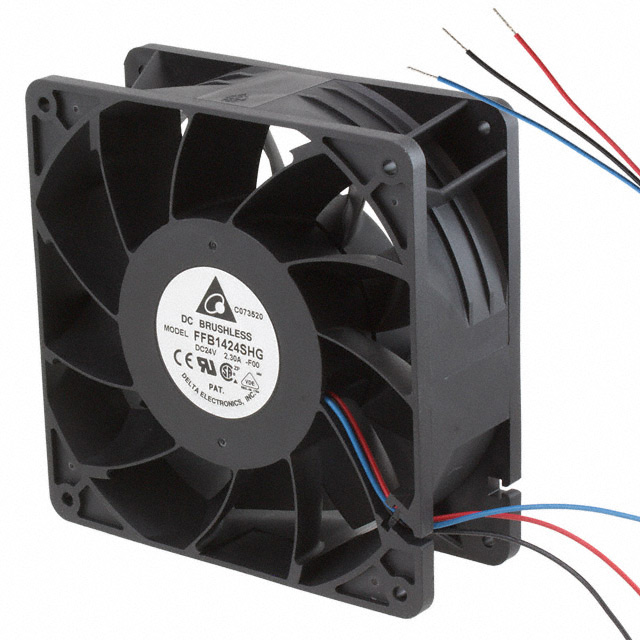

FFB1424SHG-F00

Obsolete

Delta Electronics

FAN AXIAL 139.7X50.8MM 24VDC

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 139.7X50.8MM 24VDC

Technical Specifications

Parameters and characteristics for this part

Specification	FFB1424SHG-F00

Air Flow	273.1 CFM
Air Flow	7.65 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.53 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	36.72 W
RPM	3600 RPM
Static Pressure	0.781 in H2O
Static Pressure	194.5 Pa
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	14 VDC
Weight	670 g
Weight	1.5 lb
Width [y]	2 "

Part	Features	Approval Agency	Fan Type	Current Rating (Amps)	Termination	Material - Blade	Power (Watts)	Noise	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	Width [y]	RPM	Static Pressure	Static Pressure	Lifetime @ Temp.	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Voltage - Rated	Material - Frame	Air Flow	Air Flow	Ingress Protection
Delta Electronics FFB1424UHE-MF00	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	Tubeaxial	3.35 A	3 Wire Leads	Plastic	80.4 W	74 dB(A)	Ball	26.4 VDC	14 VDC	38 mm	5500 RPM	409.5 Pa	1.644 in H2O	80000 Hrs	70 °C	70 °C	-10 °C	-10 °C	1.4 lbs	650 g	24 VDC	Aluminum	367.6 CFM	10.29 m³/min
Delta Electronics FFB1424SHG-F00	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE	Tubeaxial	1.53 A	3 Wire Leads	Plastic	36.72 W		Ball	26.4 VDC	14 VDC	2 "	3600 RPM	194.5 Pa	0.781 in H2O	70000 Hrs	50 °C	50 °C	-10 °C	-10 °C	1.5 lb	670 g	24 VDC	Plastic	273.1 CFM	7.65 m³/min
Delta Electronics FFB1424VHG-EP	GR-487 (Salt Fog Protection) PWM Control Speed Sensor (Tach)	CE CSA UL VDE	Tubeaxial	1 A	4 Wire Leads	Plastic	24 W	58.5 dB	Ball	26.4 VDC	18 VDC	2 "	3200 RPM	160.4 Pa	0.644 in H2O	70000 Hrs	70 °C	70 °C	-10 °C	-10 °C	1.5 lb	670 g	24 VDC	Plastic	252.1 CFM	7.06 m³/min	IP56 - Dust Protected Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 24VDC Square - 139.7mm L x 139.7mm H Ball 273.1 CFM (7.65m³/min) 3 Wire Leads
