0801483

Active

Phoenix Contact

TERM BLOCK MARKER

Search across all available documentation for this part.

Active

Phoenix Contact

TERM BLOCK MARKER

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.37

General part information

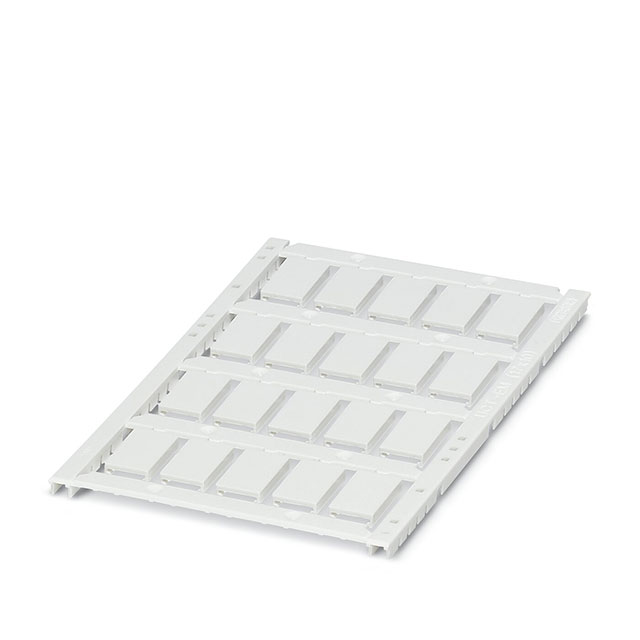

Wire Marker, Cards 0.39" W x 0.67" L (10.0mm x 17.0mm) White Polycarbonate (PC)

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	0801483	UCT-EM Series

	-	-
Color	White	White, Yellow
Legend	Blank	Blank
Material	Polycarbonate (PC)	Polycarbonate (PC)
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	-	5 - 30 mm
Size	-	0.2 - 1.18 "
Size [x]	0.67 in	0.28 - 0.83 in
Size [x]	17 mm	7 - 21 mm
Size [y]	10 mm	5 - 20 mm
Size [y]	0.39 "	0.2 - 0.79 "
Type	Wire Marker, Cards	Wire Marker, Clip-On, Wire Marker, Cards

LABELS MARKER LABEL POLYCARBONATE WHITE 7X12MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Size [y]	Size [x]	Size [y]	Size [x]	Color	Legend	Material	Size	Size
Phoenix Contact 0801501	-40 °C	120 °C	Wire Marker, Clip-On	0.47 "	0.28 in	12 mm	7 mm	White	Blank	Polycarbonate (PC)
Phoenix Contact 0801485	-40 °C	120 °C	Cards, Wire Marker	0.31 "	0.39 "	8 mm	10 mm	White	Blank	Polycarbonate (PC)
Phoenix Contact 0801483	-40 °C	120 °C	Cards, Wire Marker	0.39 "	0.67 in	10 mm	17 mm	White	Blank	Polycarbonate (PC)
Phoenix Contact 0801842	-40 °C	120 °C	Cards, Wire Marker	0.67 "	0.31 in			White	Blank	Polycarbonate (PC)	8 mm, 17 mm
Phoenix Contact 0801493
Phoenix Contact 0801475	-40 °C	120 °C	Cards, Wire Marker	0.35 in	0.67 in	9 mm	17 mm	White	Blank	Polycarbonate (PC)
Phoenix Contact 0801505	-40 °C	120 °C	Wire Marker, Clip-On					White	Blank	Polycarbonate (PC)	5 mm, 30 mm	0.2 in, 1.18 "
Phoenix Contact 0801504	-40 °C	120 °C	Wire Marker	0.59 in	0.39 "	15 mm	10 mm	White	Blank	Polycarbonate (PC)
Phoenix Contact 0801476
Phoenix Contact 0801489	-40 °C	120 °C	Cards, Wire Marker	0.31 "	0.83 "	8 mm	21 mm	White	Blank	Polycarbonate (PC)
