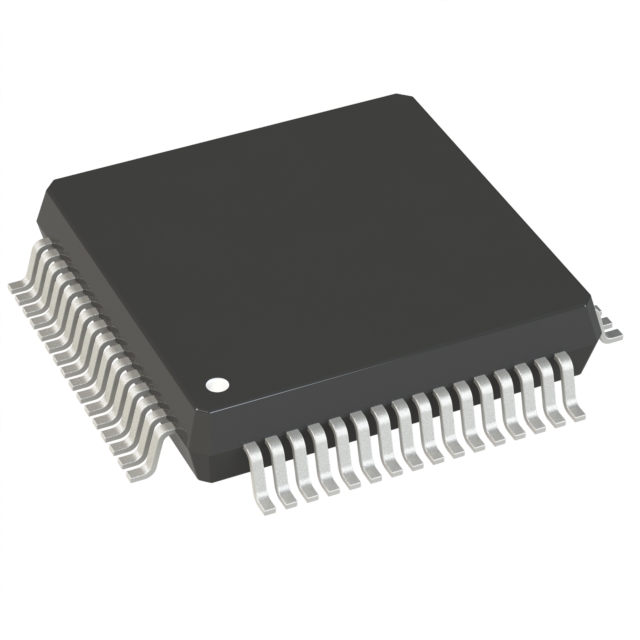

STM32F446RET6
ActiveSTMicroelectronics
HIGH-PERFORMANCE FOUNDATION LINE, ARM CORTEX-M4 CORE WITH DSP AND FPU, 512 KBYTES OF FLASH MEMORY, 180 MHZ CPU, ART ACCELERATOR, DUAL QSPI
Deep-Dive with AI
Search across all available documentation for this part.
STM32F446RET6
ActiveSTMicroelectronics
HIGH-PERFORMANCE FOUNDATION LINE, ARM CORTEX-M4 CORE WITH DSP AND FPU, 512 KBYTES OF FLASH MEMORY, 180 MHZ CPU, ART ACCELERATOR, DUAL QSPI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STM32F446RET6 | STM32F446 Series |
|---|---|---|
| Connectivity | LINbus, I2C, USB OTG, UART/USART, IrDA, USB, EBI/EMI, SPDIF-Rx, SAI, SD, SPI, CANbus | LINbus, I2C, USB OTG, UART/USART, IrDA, USB, EBI/EMI, SPDIF-Rx, SAI, SD, SPI, CANbus |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4, ARM® Cortex®-M4F |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core, 32-Bit |
| Data Converters | A/D 16x12b, D/A 2x12b | A/D 24x12b, D/A 2x12b, A/D 16x12b |
| Data Converters | - | 12 b |
| Data Converters | - | 2 - 24 |
| Mounting Type | Surface Mount | Surface Mount |
| Number of I/O | 50 | 50 - 114 |
| Operating Temperature [Max] | 85 °C | 85 - 105 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Oscillator Type | Internal | Internal, External |
| Package / Case | 64-LQFP | 144-UFBGA, 144-LQFP, 100-LQFP, WLCSP, 81-UFBGA, 64-LQFP |
| Peripherals | PWM, I2S, POR, Brown-out Detect/Reset, WDT, LVD, DMA | PWM, I2S, POR, Brown-out Detect/Reset, WDT, LVD, DMA |
| Program Memory Size | 512 KB | 256 - 512 KB |
| Program Memory Type | FLASH | FLASH |
| RAM Size | 128 K | 128 - 132 K |
| Speed | 180 MHz | 180 MHz |
| Supplier Device Package | 64-LQFP (10x10) | 144-UFBGA (10x10), 144-LQFP (20x20), 100-LQFP (14x14), 81-WLCSP, 144-UFBGA (7x7), 64-LQFP (10x10) |
| Supplier Device Package | - | 3.8 |
| Supplier Device Package | - | 3.69 |
| Voltage - Supply (Vcc/Vdd) [Max] | 3.6 V | 3.6 V |
| Voltage - Supply (Vcc/Vdd) [Min] | 1.7 V | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow Electronics | N/A | 1 | $ 4.84 | |
| 1 | $ 4.84 | |||
| Avnet Americas | N/A | 1 | $ 11.11 | |
| 1 | $ 11.11 | |||
| 10 | $ 10.14 | |||
| 10 | $ 10.14 | |||
| 25 | $ 9.71 | |||
| 25 | $ 9.71 | |||
| 50 | $ 9.33 | |||
| 50 | $ 9.33 | |||
| 100 | $ 8.95 | |||
| 100 | $ 8.95 | |||
| 160 | $ 4.96 | |||
| 160 | $ 4.96 | |||
| 170 | $ 4.84 | |||
| 170 | $ 4.84 | |||
| 330 | $ 4.78 | |||
| 330 | $ 4.78 | |||
| 800 | $ 4.73 | |||
| 800 | $ 4.73 | |||
| 1600 | $ 4.67 | |||
| 1600 | $ 4.67 | |||
| CHIPMALL.COM LIMITED | N/A | 1 | $ 2.86 | |
| 5 | $ 2.46 | |||
| 5 | $ 2.46 | |||
| 5 | $ 2.86 | |||
| 5 | $ 2.86 | |||
| 10 | $ 2.53 | |||
| 30 | $ 2.36 | |||
| 50 | $ 2.36 | |||
| 50 | $ 2.36 | |||
| 150 | $ 2.19 | |||
| 150 | $ 2.19 | |||
| 160 | $ 2.13 | |||
| 480 | $ 2.05 | |||
| 500 | $ 2.05 | |||
| 500 | $ 2.05 | |||
| 960 | $ 2.01 | |||
| 2500 | $ 2.01 | |||
| 2500 | $ 2.01 | |||
| Chip1Stop | N/A | 1 | $ 8.60 | |
| 1 | $ 8.60 | |||
| 10 | $ 6.68 | |||
| 10 | $ 6.68 | |||
| 50 | $ 6.21 | |||
| 50 | $ 6.21 | |||
| 100 | $ 6.07 | |||
| 100 | $ 6.07 | |||
| 200 | $ 5.31 | |||
| 200 | $ 5.31 | |||
| 500 | $ 5.06 | |||
| 500 | $ 5.06 | |||
| 960 | $ 4.94 | |||
| 960 | $ 4.94 | |||
| 1920 | $ 4.66 | |||
| 1920 | $ 4.66 | |||
| DigiKey | N/A | 1 | $ 9.10 | |
| 10 | $ 7.08 | |||
| 25 | $ 6.57 | |||
| 160 | $ 5.87 | |||
| 320 | $ 5.69 | |||
| 480 | $ 5.60 | |||
| 960 | $ 5.47 | |||
| Digikey | Tray | 1 | $ 11.16 | |
| 10 | $ 7.81 | |||
| 25 | $ 6.95 | |||
| 160 | $ 5.73 | |||
| 320 | $ 5.41 | |||
| 480 | $ 5.25 | |||
| 960 | $ 5.01 | |||
| Future Electronics | N/A | 1 | $ 5.37 | |
| 1 | $ 5.37 | |||
| 1 | $ 5.37 | |||
| 1 | $ 5.37 | |||
| 1 | $ 5.37 | |||
| 10 | $ 5.16 | |||
| 10 | $ 5.16 | |||
| 10 | $ 5.16 | |||
| 10 | $ 5.16 | |||
| 10 | $ 5.16 | |||
| 25 | $ 5.01 | |||
| 25 | $ 5.01 | |||
| 25 | $ 5.01 | |||
| 25 | $ 5.01 | |||
| 25 | $ 5.01 | |||
| 50 | $ 4.89 | |||
| 50 | $ 4.89 | |||
| 50 | $ 4.89 | |||
| 50 | $ 4.89 | |||
| 50 | $ 4.89 | |||
| 125 | $ 4.64 | |||
| 125 | $ 4.64 | |||
| 125 | $ 4.64 | |||
| 125 | $ 4.64 | |||
| 125 | $ 4.64 | |||
| 160 | $ 4.91 | |||
| 160 | $ 4.91 | |||
| 320 | $ 4.83 | |||
| 320 | $ 4.83 | |||
| 480 | $ 4.78 | |||
| 480 | $ 4.78 | |||
| 640 | $ 4.75 | |||
| 640 | $ 4.75 | |||
| 800 | $ 4.64 | |||
| 800 | $ 4.64 | |||
| LCSC | N/A | 1 | $ 2.98 | |
| 1 | $ 2.98 | |||
| 10 | $ 2.63 | |||
| 10 | $ 2.63 | |||
| 30 | $ 2.46 | |||
| 30 | $ 2.46 | |||
| 160 | $ 2.22 | |||
| 160 | $ 2.22 | |||
| 480 | $ 2.13 | |||
| 480 | $ 2.13 | |||
| 960 | $ 2.10 | |||
| 960 | $ 2.10 | |||
| Mouser Electronics | N/A | 1 | $ 9.10 | |
| 1 | $ 9.10 | |||
| 10 | $ 7.08 | |||
| 10 | $ 7.08 | |||
| 25 | $ 6.58 | |||
| 25 | $ 6.58 | |||
| 100 | $ 5.88 | |||
| 100 | $ 5.88 | |||
| 250 | $ 5.60 | |||
| 250 | $ 5.60 | |||
| 960 | $ 5.46 | |||
| 960 | $ 5.46 | |||
| Newark | N/A | 1 | $ 11.11 | |
| 10 | $ 10.13 | |||
| 25 | $ 9.71 | |||
| 50 | $ 9.02 | |||
| 100 | $ 9.01 | |||
| 100 | $ 8.32 | |||
| 320 | $ 8.63 | |||
| 320 | $ 7.50 | |||
| 640 | $ 7.66 | |||
| 640 | $ 7.49 | |||
| Quest Components | N/A | 1 | $ 14.32 | |
| 1 | $ 12.94 | |||
| 1 | $ 14.32 | |||
| 1 | $ 12.94 | |||
| 3 | $ 9.49 | |||
| 3 | $ 9.49 | |||
| 8 | $ 9.55 | |||
| 8 | $ 9.55 | |||
| 9 | $ 8.63 | |||
| 9 | $ 8.63 | |||
| 27 | $ 8.83 | |||
| 27 | $ 8.83 | |||
| RS | N/A | 1 | $ 10.21 | |
| 10 | $ 9.24 | |||
| 10 | $ 9.24 | |||
| 25 | $ 8.80 | |||
| 25 | $ 8.80 | |||
| 100 | $ 7.63 | |||
| 100 | $ 7.63 | |||
| 160 | $ 7.62 | |||
| 250 | $ 7.30 | |||
| 250 | $ 7.30 | |||
| 320 | $ 9.76 | |||
| 480 | $ 8.87 | |||
| 960 | $ 8.01 | |||
| 2560 | $ 7.50 | |||
| STMicroelectronics | N/A | 1 | $ 8.92 | |
| 1 | $ 8.92 | |||
| 10 | $ 6.94 | |||
| 10 | $ 6.94 | |||
| 25 | $ 6.45 | |||
| 25 | $ 6.45 | |||
| 100 | $ 5.76 | |||
| 100 | $ 5.76 | |||
| 250 | $ 5.49 | |||
| 250 | $ 5.49 | |||
| 500 | $ 5.49 | |||
| 500 | $ 5.49 | |||
| Semour Electronics Co Ltd | N/A | 1 | $ 1.95 | |
| 100 | $ 1.74 | |||
| 160 | $ 6.59 | |||
| 320 | $ 6.53 | |||
| 640 | $ 6.48 | |||
| 960 | $ 1.68 | |||
| 1280 | $ 6.42 | |||
| TME | N/A | 1 | $ 10.35 | |
| 1 | $ 10.30 | |||
| 3 | $ 9.82 | |||
| 3 | $ 9.78 | |||
| 10 | $ 9.29 | |||
| 10 | $ 9.25 | |||
| 25 | $ 8.87 | |||
| 25 | $ 8.83 | |||
| 100 | $ 7.71 | |||
| 100 | $ 7.67 | |||
| 160 | $ 7.13 | |||
| 160 | $ 7.10 | |||
| 320 | $ 6.76 | |||
| 320 | $ 6.73 | |||
| Verical | N/A | 1 | $ 10.71 | |
| 1 | $ 10.71 | |||
| 2 | $ 5.13 | |||
| 2 | $ 4.84 | |||
| 2 | $ 5.13 | |||
| 2 | $ 4.84 | |||
| 5 | $ 6.95 | |||
| 5 | $ 7.04 | |||
| 10 | $ 6.90 | |||
| 10 | $ 6.99 | |||
| 50 | $ 6.74 | |||
| 50 | $ 6.83 | |||
| 200 | $ 6.71 | |||
| 200 | $ 6.80 | |||
| 500 | $ 6.00 | |||
| 500 | $ 6.09 | |||
| Win Source Electronics | N/A | 20 | $ 2.62 | |
| 20 | $ 2.62 | |||
| 41 | $ 2.45 | |||
| 41 | $ 2.45 | |||
| 64 | $ 2.37 | |||
| 64 | $ 2.37 | |||
| 92 | $ 2.20 | |||
| 92 | $ 2.20 | |||
| 119 | $ 2.11 | |||
| 119 | $ 2.11 | |||
| 148 | $ 2.03 | |||
| 148 | $ 2.03 | |||
STM32F446 Series
High-performance foundation line, Arm Cortex-M4 core with DSP and FPU, 256 Kbytes of Flash memory, 180 MHz CPU, ART Accelerator, Dual QSPI
| Part | Speed | Supplier Device Package | Peripherals | Program Memory Type | Number of I/O | Connectivity | Program Memory Size | Core Processor | RAM Size | Mounting Type | Oscillator Type | Voltage - Supply (Vcc/Vdd) [Max] | Voltage - Supply (Vcc/Vdd) [Min] | Core Size | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Data Converters | Data Converters [custom] | Data Converters [custom] | Supplier Device Package [x] | Supplier Device Package [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics STM32F446ZEJ7 | 180 MHz | 144-UFBGA (10x10) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 114 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 512 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 144-UFBGA | 105 °C | -40 °C | A/D 24x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446ZCT6TR | 180 MHz | 144-LQFP (20x20) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 114 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 256 KB | ARM® Cortex®-M4F | 128 K | Surface Mount | External, Internal | 3.6 V | 1.7 V | 32-Bit | 144-LQFP | 85 °C | -40 °C | 12 b | 2, 24 | |||
STMicroelectronics STM32F446VCT6TR | 180 MHz | 100-LQFP (14x14) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 81 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 256 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 100-LQFP | 85 °C | -40 °C | A/D 16x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446ZEH7TR | 180 MHz | 144-UFBGA (10x10) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 114 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 512 KB | ARM® Cortex®-M4 | 132 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 144-UFBGA | 105 °C | -40 °C | A/D 24x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446VET6 | 180 MHz | 100-LQFP (14x14) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 81 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 512 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 100-LQFP | 85 °C | -40 °C | A/D 16x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446VET6TR | 180 MHz | 100-LQFP (14x14) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 81 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 512 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 100-LQFP | 85 °C | -40 °C | A/D 16x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446MEY6TR | 180 MHz | 81-WLCSP | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 63 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 512 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 81-UFBGA, WLCSP | 85 °C | -40 °C | 12 b | 2, 14 | 3.8 | 3.69 | |
STMicroelectronics STM32F446ZCJ6 | 180 MHz | 144-UFBGA (10x10) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 114 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 256 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 144-UFBGA | 85 °C | -40 °C | A/D 24x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446VET7 | 180 MHz | 100-LQFP (14x14) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 81 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 512 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 100-LQFP | 105 °C | -40 °C | A/D 16x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446ZCJ7 | 180 MHz | 144-UFBGA (10x10) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 114 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 256 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 144-UFBGA | 105 °C | -40 °C | A/D 24x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446ZET7 | 180 MHz | 144-LQFP (20x20) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 114 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 512 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 144-LQFP | 105 °C | -40 °C | A/D 24x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446ZCT6 | 180 MHz | 144-LQFP (20x20) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 114 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 256 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 144-LQFP | 85 °C | -40 °C | A/D 24x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446ZET7TR | 180 MHz | 144-LQFP (20x20) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 114 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 512 KB | ARM® Cortex®-M4F | 128 K | Surface Mount | External, Internal | 3.6 V | 1.7 V | 32-Bit | 144-LQFP | 105 °C | -40 °C | 12 b | 2, 24 | |||
STMicroelectronics STM32F446ZEH6TR | 180 MHz | 144-UFBGA (7x7) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 114 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 512 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 144-UFBGA | 85 °C | -40 °C | A/D 24x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446RET6 | 180 MHz | 64-LQFP (10x10) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 50 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 512 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 64-LQFP | 85 °C | -40 °C | A/D 16x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446RCT6 | 180 MHz | 64-LQFP (10x10) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 50 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 256 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 64-LQFP | 85 °C | -40 °C | A/D 16x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446ZEH7 | 180 MHz | 144-UFBGA (10x10) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 114 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 512 KB | ARM® Cortex®-M4 | 132 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 144-UFBGA | 105 °C | -40 °C | A/D 24x12b, D/A 2x12b | ||||
STMicroelectronics STM32F446VCT6 | 180 MHz | 100-LQFP (14x14) | Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT | FLASH | 81 | CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG | 256 KB | ARM® Cortex®-M4 | 128 K | Surface Mount | Internal | 3.6 V | 1.7 V | 32-Bit Single-Core | 100-LQFP | 85 °C | -40 °C | A/D 16x12b, D/A 2x12b |
Description
General part information
STM32F446 Series
The STM32F446xC/E devices are based on the high-performance Arm®Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex-M4 core features a floating point unit (FPU) single precision supporting all Arm®single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) that enhances application security.
The STM32F446xC/E devices incorporate high-speed embedded memories (Flash memory up to 512 Kbytes, up to 128 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers.
