STM32F446MEY6TR

Active

STMicroelectronics

HIGH-PERFORMANCE FOUNDATION LINE, ARM CORTEX-M4 CORE WITH DSP AND FPU, 512 KBYTES OF FLASH MEMORY, 180 MHZ CPU, ART ACCELERATOR, DUAL QSPI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet STM32F446xx Ref Manual

STM32F446MEY6TR

Active

STMicroelectronics

HIGH-PERFORMANCE FOUNDATION LINE, ARM CORTEX-M4 CORE WITH DSP AND FPU, 512 KBYTES OF FLASH MEMORY, 180 MHZ CPU, ART ACCELERATOR, DUAL QSPI

Deep-Dive with AI

DocumentsDatasheet STM32F446xx Ref Manual

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	STM32F446MEY6TR	STM32F446 Series

Connectivity	LINbus, I2C, USB OTG, UART/USART, IrDA, USB, EBI/EMI, SPDIF-Rx, SAI, SD, SPI, CANbus	LINbus, I2C, USB OTG, UART/USART, IrDA, USB, EBI/EMI, SPDIF-Rx, SAI, SD, SPI, CANbus
Core Processor	ARM® Cortex®-M4	ARM® Cortex®-M4, ARM® Cortex®-M4F
Core Size	32-Bit Single-Core	32-Bit Single-Core, 32-Bit
Data Converters	-	A/D 24x12b, D/A 2x12b, A/D 16x12b
Data Converters [custom]	12 b	12 b
Data Converters [custom]	2, 14	2 - 24
Mounting Type	Surface Mount	Surface Mount
Number of I/O	63	50 - 114
Operating Temperature [Max]	85 °C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	Internal	Internal, External

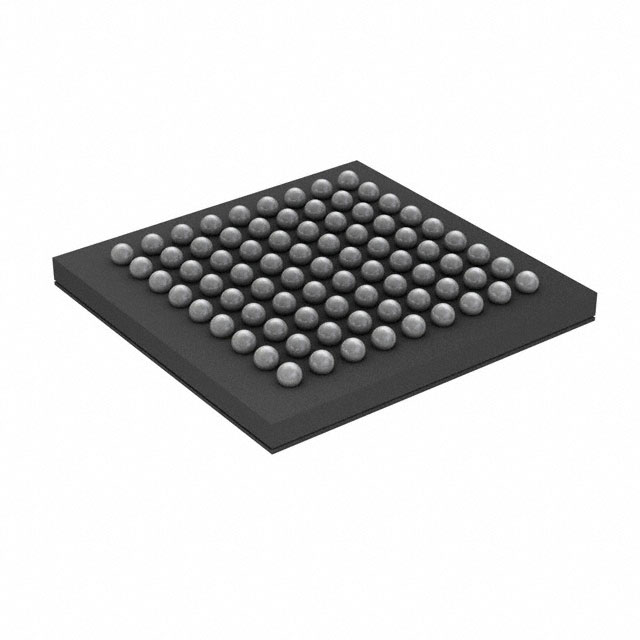

Package / Case	WLCSP, 81-UFBGA	144-UFBGA, 144-LQFP, 100-LQFP, WLCSP, 81-UFBGA, 64-LQFP
Peripherals	PWM, I2S, POR, Brown-out Detect/Reset, WDT, LVD, DMA	PWM, I2S, POR, Brown-out Detect/Reset, WDT, LVD, DMA
Program Memory Size	512 KB	256 - 512 KB
Program Memory Type	FLASH	FLASH
RAM Size	128 K	128 - 132 K
Speed	180 MHz	180 MHz
Supplier Device Package	81-WLCSP	144-UFBGA (10x10), 144-LQFP (20x20), 100-LQFP (14x14), 81-WLCSP, 144-UFBGA (7x7), 64-LQFP (10x10)
Supplier Device Package [x]	3.8	3.8
Supplier Device Package [y]	3.69	3.69
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	1.7 V	1.7 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow Electronics	N/A	1	$ 5.47
		1	$ 5.47
		10	$ 4.89
		10	$ 4.89
		25	$ 4.63
		25	$ 4.63
		100	$ 4.41
		100	$ 4.41
		250	$ 4.35
		250	$ 4.35
		500	$ 4.29
		500	$ 4.29
		1000	$ 4.23
		1000	$ 4.23
Avnet Americas	N/A	5000	$ 4.27
		5000	$ 4.27
		10000	$ 4.16
		10000	$ 4.16
		20000	$ 4.11
		20000	$ 4.11
		30000	$ 4.06
		30000	$ 4.06
		40000	$ 4.02
		40000	$ 4.02
DigiKey	N/A	1	$ 7.93
		1	$ 7.93
		10	$ 6.14
		10	$ 6.14
		25	$ 5.69
		25	$ 5.69
		100	$ 5.20
		100	$ 5.20
		250	$ 4.96
		250	$ 4.96
		500	$ 4.82
		500	$ 4.82
		1000	$ 4.71
		1000	$ 4.71
		5000	$ 4.51
		5000	$ 4.51
Digikey	Cut Tape (CT)	1	$ 10.34
		10	$ 7.20
		25	$ 6.39
		100	$ 5.49
		250	$ 5.05
		500	$ 4.78
		1000	$ 4.56
	Digi-Reel®	1	$ 10.34
		10	$ 7.20
		25	$ 6.39
		100	$ 5.49
		250	$ 5.05
		500	$ 4.78
		1000	$ 4.56
	Tape & Reel (TR)	5000	$ 4.49
Farnell	N/A	1	$ 8.41
		10	$ 6.97
		10	$ 6.97
		25	$ 6.65
		25	$ 6.65
		50	$ 6.21
		50	$ 6.21
		100	$ 5.77
		100	$ 5.77
		250	$ 5.51
		250	$ 5.51
		500	$ 4.38
		500	$ 4.38
Future Electronics	N/A	5000	$ 4.02
		5000	$ 4.02
		5000	$ 4.02
Mouser Electronics	N/A	1	$ 6.59
		1	$ 6.63
		10	$ 5.47
		10	$ 5.50
		25	$ 5.13
		25	$ 5.15
		100	$ 4.77
		100	$ 4.78
		250	$ 4.63
		250	$ 4.63
		500	$ 4.52
		500	$ 4.50
		1000	$ 4.29
		1000	$ 4.28
		2500	$ 4.13
		5000	$ 4.28
		5000	$ 4.27
STMicroelectronics	N/A	1	$ 6.50
		1	$ 6.46
		10	$ 5.39
		10	$ 5.36
		25	$ 5.05
		25	$ 5.03
		100	$ 4.68
		100	$ 4.68
		250	$ 4.54
		250	$ 4.54
		500	$ 4.41
		500	$ 4.43
Semour Electronics Co Ltd	N/A	5000	$ 5.25
Verical	N/A	2	$ 5.47
		2	$ 5.47
		2	$ 5.60
		10	$ 4.89
		10	$ 4.89
		10	$ 4.87
		25	$ 4.63
		25	$ 4.63
		25	$ 4.66
		100	$ 4.41
		100	$ 4.41
		100	$ 4.33
		250	$ 4.35
		250	$ 4.35
		250	$ 4.09
		500	$ 4.29
		500	$ 4.29
		500	$ 4.05
		1000	$ 4.23
		1000	$ 4.23
		1000	$ 4.02
Win Source Electronics	N/A	8	$ 6.73
		8	$ 6.73
		8	$ 6.73
		19	$ 5.52
		19	$ 5.52
		19	$ 5.52
		29	$ 5.35
		29	$ 5.35
		29	$ 5.35
		39	$ 5.18
		39	$ 5.18
		39	$ 5.18
		50	$ 5.01
		50	$ 5.01
		50	$ 5.01
		67	$ 4.49
		67	$ 4.49
		67	$ 4.49

STM32F446 Series

High-performance foundation line, Arm Cortex-M4 core with DSP and FPU, 256 Kbytes of Flash memory, 180 MHz CPU, ART Accelerator, Dual QSPI

Part	Speed	Supplier Device Package	Peripherals	Program Memory Type	Number of I/O	Connectivity	Program Memory Size	Core Processor	RAM Size	Mounting Type	Oscillator Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Core Size	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Data Converters	Data Converters [custom]	Data Converters [custom]	Supplier Device Package [x]	Supplier Device Package [y]
STMicroelectronics STM32F446ZEJ7	180 MHz	144-UFBGA (10x10)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	114	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	512 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	144-UFBGA	105 °C	-40 °C	A/D 24x12b, D/A 2x12b
STMicroelectronics STM32F446ZCT6TR	180 MHz	144-LQFP (20x20)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	114	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	256 KB	ARM® Cortex®-M4F	128 K	Surface Mount	External, Internal	3.6 V	1.7 V	32-Bit	144-LQFP	85 °C	-40 °C		12 b	2, 24
STMicroelectronics STM32F446VCT6TR	180 MHz	100-LQFP (14x14)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	81	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	256 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	100-LQFP	85 °C	-40 °C	A/D 16x12b, D/A 2x12b
STMicroelectronics STM32F446ZEH7TR	180 MHz	144-UFBGA (10x10)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	114	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	512 KB	ARM® Cortex®-M4	132 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	144-UFBGA	105 °C	-40 °C	A/D 24x12b, D/A 2x12b
STMicroelectronics STM32F446VET6	180 MHz	100-LQFP (14x14)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	81	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	512 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	100-LQFP	85 °C	-40 °C	A/D 16x12b, D/A 2x12b
STMicroelectronics STM32F446VET6TR	180 MHz	100-LQFP (14x14)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	81	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	512 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	100-LQFP	85 °C	-40 °C	A/D 16x12b, D/A 2x12b
STMicroelectronics STM32F446MEY6TR	180 MHz	81-WLCSP	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	63	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	512 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	81-UFBGA, WLCSP	85 °C	-40 °C		12 b	2, 14	3.8	3.69
STMicroelectronics STM32F446ZCJ6	180 MHz	144-UFBGA (10x10)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	114	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	256 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	144-UFBGA	85 °C	-40 °C	A/D 24x12b, D/A 2x12b
STMicroelectronics STM32F446VET7	180 MHz	100-LQFP (14x14)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	81	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	512 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	100-LQFP	105 °C	-40 °C	A/D 16x12b, D/A 2x12b
STMicroelectronics STM32F446ZCJ7	180 MHz	144-UFBGA (10x10)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	114	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	256 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	144-UFBGA	105 °C	-40 °C	A/D 24x12b, D/A 2x12b
STMicroelectronics STM32F446ZET7	180 MHz	144-LQFP (20x20)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	114	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	512 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	144-LQFP	105 °C	-40 °C	A/D 24x12b, D/A 2x12b
STMicroelectronics STM32F446ZCT6	180 MHz	144-LQFP (20x20)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	114	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	256 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	144-LQFP	85 °C	-40 °C	A/D 24x12b, D/A 2x12b
STMicroelectronics STM32F446ZET7TR	180 MHz	144-LQFP (20x20)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	114	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	512 KB	ARM® Cortex®-M4F	128 K	Surface Mount	External, Internal	3.6 V	1.7 V	32-Bit	144-LQFP	105 °C	-40 °C		12 b	2, 24
STMicroelectronics STM32F446ZEH6TR	180 MHz	144-UFBGA (7x7)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	114	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	512 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	144-UFBGA	85 °C	-40 °C	A/D 24x12b, D/A 2x12b
STMicroelectronics STM32F446RET6	180 MHz	64-LQFP (10x10)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	50	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	512 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	64-LQFP	85 °C	-40 °C	A/D 16x12b, D/A 2x12b
STMicroelectronics STM32F446RCT6	180 MHz	64-LQFP (10x10)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	50	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	256 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	64-LQFP	85 °C	-40 °C	A/D 16x12b, D/A 2x12b
STMicroelectronics STM32F446ZEH7	180 MHz	144-UFBGA (10x10)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	114	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	512 KB	ARM® Cortex®-M4	132 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	144-UFBGA	105 °C	-40 °C	A/D 24x12b, D/A 2x12b
STMicroelectronics STM32F446VCT6	180 MHz	100-LQFP (14x14)	Brown-out Detect/Reset, DMA, I2S, LVD, POR, PWM, WDT	FLASH	81	CANbus, EBI/EMI, I2C, IrDA, LINbus, SAI, SD, SPDIF-Rx, SPI, UART/USART, USB, USB OTG	256 KB	ARM® Cortex®-M4	128 K	Surface Mount	Internal	3.6 V	1.7 V	32-Bit Single-Core	100-LQFP	85 °C	-40 °C	A/D 16x12b, D/A 2x12b

Description

General part information

STM32F446 Series

The STM32F446xC/E devices are based on the high-performance Arm®Cortex®-M4 32-bit RISC core operating at a frequency of up to 180 MHz. The Cortex-M4 core features a floating point unit (FPU) single precision supporting all Arm®single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) that enhances application security.

The STM32F446xC/E devices incorporate high-speed embedded memories (Flash memory up to 512 Kbytes, up to 128 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix.

All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers.
