152141

Active

Amphenol RF

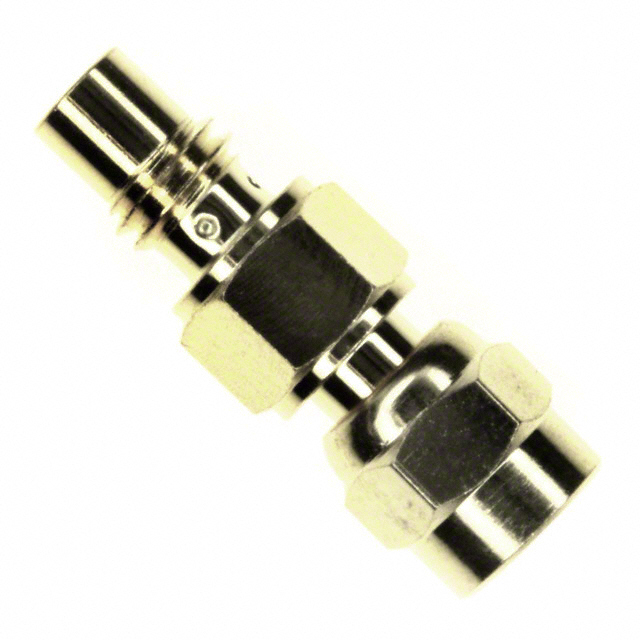

CONN ADAPT PLUG TO JACK SMC

Deep-Dive with AI

Search across all available documentation for this part.

152141

Active

Amphenol RF

CONN ADAPT PLUG TO JACK SMC

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	152141

Adapter Series	SMC to SMC
Adapter Type	Plug to Jack
Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	SMC Plug, Female Socket
Convert To (Adapter End)	SMC Jack, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Style	Straight

1521 Series

Part	Contact Termination	Impedance	Center Contact Material	Dielectric Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Mating Cycles	Body Material	Insertion Loss	Voltage Rating	Center Contact Plating	Frequency - Max [Max]	Mounting Type	Connector Type	Housing Color	Connector Style	Number of Ports	Cable Group	Cable Group [Min]	Cable Group [Max]	Includes	Mounting Feature	Style	Conversion Type	Convert From (Adapter End)	Convert To (Adapter End)	Adapter Type	Adapter Series
Amphenol RF 152119	Solder	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Solder	500	Brass	0.3 dB	335 V	Gold	10 GHz	Through Hole	Jack Male Pin	Silver	SMC	1
Amphenol RF 152138	Solder	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Solder	500	Brass	0.6 dB	335 V	Gold	10 GHz	Free Hanging (In-Line) Right Angle	Female Socket Plug	Gold	SMC	1	RG-405 Semi Rigid	0.085 in	0.086 in	1 Connector 1 End Cap
Amphenol RF 152126	Solder Cup	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Solder	500	Brass	0.3 dB	335 V	Nickel	10 GHz		Male Pin Receptacle	Silver	SMC	1				1 Connector 1 Lockwasher 1 Nut	Bulkhead - Front Side Nut
Amphenol RF 152135	Solder	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Solder	500	Brass	0.3 dB	335 V	Gold	10 GHz	Free Hanging (In-Line)	Female Socket Plug	Gold	SMC	1	RG-405 Semi Rigid	0.085 in	0.086 in
Amphenol RF 152101	Solder	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Nickel	-65 ░C	165 °C	Crimp	500	Brass	0.3 dB	335 V	Gold	10 GHz	Free Hanging (In-Line)	Female Socket Plug	Silver	SMC	1	188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 152103	Crimp	50 Ohms	Brass	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Crimp	500	Brass	0.3 dB	335 V	Gold	10 GHz	Free Hanging (In-Line)	Jack Male Pin	Gold	SMC	1	188 188A 316 LMR-100 M17/119-RG174 RG-174
Amphenol RF 152141		50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold				500	Brass			Gold	4 GHz	Free Hanging (In-Line)										Straight	Same Series	Female Socket SMC Plug	Male Pin SMC Jack	Plug to Jack	SMC to SMC
Amphenol RF 152107	Solder	50 Ohms	Beryllium Copper	Polytetrafluoroethylene (PTFE)	Gold	-65 ░C	165 °C	Crimp	500	Brass	0.6 dB	335 V	Gold	10 GHz	Free Hanging (In-Line) Right Angle	Female Socket Plug	Gold	SMC	1	188 188A 316 LMR-100 M17/119-RG174 RG-174			1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

1521 Series

Adapter Coaxial Connector SMC Plug, Female Socket To SMC Jack, Male Pin 50 Ohms
